Cervelo ZHT-5 X01 AXS LTD

Cervelo ZHT-5 X01 AXS LTD
$6,500.00
Color:
Size: Large
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

**LIMITED EDITION, EXCLUSIVELY AVAILABLE FROM VELOZOOM**

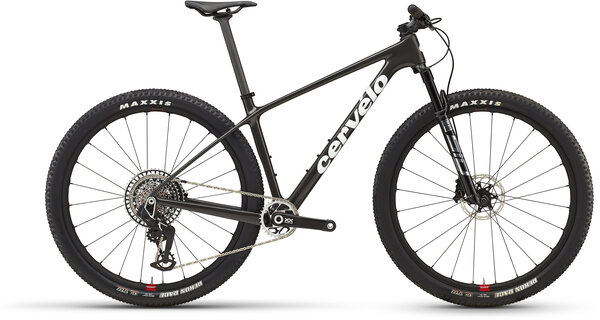

Images do not depict actual product

When Team Jumbo-Visma decided it was time to race XCO, they came to us for the answer. The ZHT-5 marks a new era for Cervelo and the team, as we go racing together. Our engineering expertise has already been proven in cyclocross (R5-CX) and gravel racing (Áspero), and now we've upped the ante and designed a mountain bike worthy of the Cervelo name.

ZHT-5 is a Cervelo through and through: fast, efficient, and fun to ride. The 69-degree head tube angle, modern reach, and short chainstays combine to make a bike that's stable at speed and nimble enough for pack racing. There's room to maneuver in the cockpit, whether you're darting inside on an uphill hairpin, or hanging off the back to make time on the descent.

- Speed First
Our mantra is to make riders faster. And doing that means creating bikes that turn power into forward motion as efficiently as possible. Nothing does this more effectively in dirt than a hardtail. But power is nothing without control, so we focused on making a rapid cross-country race bike that still handles confidently in technical sections, feeding the desire to ride faster.

- Stiff, Light & Ready To Fight
Weighing in at just 907g (size Medium), ZHT-5 is a featherweight fighter with the punchy turn of pace that only a hardtail can deliver. Decades of making frames built for the strongest sprinters in the world have fed into a super stiff mountain bike design that propels you to the front without compromising weight or ride quality.

- Modern Geo For The Modern XC Rider
If you've not ridden a hardtail for a while, you'll be surprised at how the ZHT-5's 69-degree head tube angle, 457mm reach (size L), and 430mm chainstays feel progressive and refreshingly modern. If you've ridden them all your life, you'll be baffled at how we've managed to eke out yet more performance from such a clean and simple design. The ZHT-5's geometry puts you in the driving seat to carve up all the tight hairpins and features that litter the ups and downs of today's XC trails.

- Not Our First Rodeo
We know from winning cyclo-cross World Champs that when the going gets gritty, threaded bottom brackets are the best way to go. ZHT-5 adopts the BSA threaded standard to meet the strength, stiffness, durability, and serviceability needs of racers and race mechanics alike. It also makes it the ideal winter training companion.

Sizes:
Frame SizeSmallMediumLargeX-Large
Reach | mm 409 433 457 484
Stack | mm 606 612 623 636
Head Tube Angle 69° 69° 69° 69°
Front Center | mm 667 693 722 754
Bottom Bracket Drop | mm 62 62 62 62
Head Tube Length | mm 89 95 107 121
Top Tube Length | mm 582 608 635 666
Seat Tube Angle 74° 74° 74° 74°
Standover Height | mm 705 740 782 810
Trail | mm 95 95 95 95
Wheel Size 29 29 29 29
Fork Offset | mm 44 44 44 44
Wheelbase | mm 1090 1116 1145 1177
Chainstay Length | mm 430 430 430 430
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 150 - 163 5'0" - 5'4"
Medium 163 - 176 5'4" - 5'9"
Large 176 - 186 5'9" - 6'1"
X-Large 186 - 198 6'1" - 6'5"

Specs

Frame ZHT-5 Carbon, 148 Boost Thru-Axle, BSA Threaded Bottom Bracket, 30.9 Seatpost
Fork Rockshox SID SL Ultimate, DebonAir spring, Charger Race Day damper, tapered steerer, 15x110mm, Maxle Stealth, 44mm offset, 100mm travel
Wheels Front: Reserve 28 XC, 28mm IW, DT Swiss 350, 15x110mm, 24H, centerlock, tubeless compatible
Rear: Reserve 28 XC, 28mm IW, DT Swiss 350,12x148mm, XD freehub, 24H, centerlock, tubeless compatible
Rims Reserve 28/XC Carbon
Hubs DT Swiss 350
Axles Cervelo Thru-axle, 12x148
Tires Vittoria Barzo G2.0 Tire, XCR Race Lite/TLR, 29x2.35, Tan/Blk
Bottom Bracket SRAM DUB, BSA 73mm
Crankset SRAM X01 Eagle,32T, Boost 148 DUB
Shifters SRAM AXS controller
Rear Derailleur SRAM X01 Eagle AXS, 12 speed
Cassette/Freewheel SRAM X01, 10-52, 12 Speed
Chain SRAM X01, 12 speed
Brakes SRAM Level Silver 4-Piston
Rotors SRAM CLX Centerlock
Brake Levers SRAM Level Silver Stealth
Handlebars RaceFace Era Handlebar - Carbon, 760mm, 10mm, 35.0, 8 Deg, Stealth
Stem Race Face Aeffect Alloy, 35mm clamp, 6 degree
Headset FSA IS2 1-1/2 x 1-1/2
Seatpost Fox Transfer SL 100x30.9
Saddle Prologo Dimension NDR Nack
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Five Black / Large 042677624127 0I0HTAXX1CLG
Cashmere / Large
