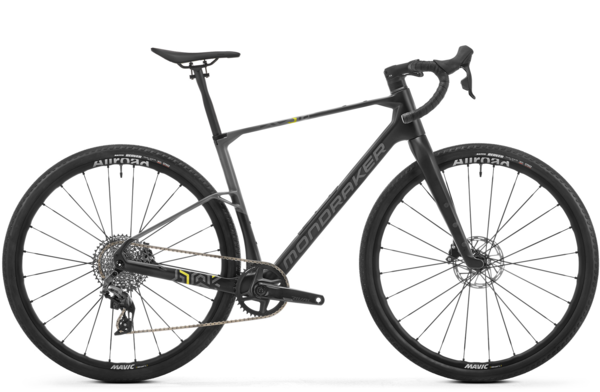

Mondraker Arid Carbon R

Mondraker Arid Carbon R
  • Color: Black
$4,699.00
Color: Black
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

Arid Carbon R is the first build to offer an SRAM AXS drivetrain in the form of the Rival Etap with a 40-tooth chainring and 12-speed, 10-44 cassette. Mavic supplies the wheels with their Allroad SL 25mm rims fitted with Maxxis Reaver 45mm tyres. Available in the stylish Black / Nimbus Grey / Tonic Gold Paint scheme.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
Bottom bracket drop -75 -75 -75 -75 -75
Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
Seat tube angle 73° 73° 73° 73° 73°
Effective seattube angle 74° 74° 74° 74° 74°
Headtube angle 70° 70° 70° 70° 70°
Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
Reach 363 mm 386 mm 411 mm 423 mm 446 mm
Stack 548 mm 572 mm 591 mm 619 mm 642 mm
Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 150 - 165 59 - 65
Medium 165 - 175 65 - 69
Medium/Large 170 - 185 67 - 73
Large 180 - 190 71 - 75
X-Large 190 - 195 75 - 77

Specs

Frame Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Fork Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Rims Mavic Allroad SL, UST, 25mm internal width, hookless, infinity hubs, 24 spokes
Hubs Front: Mavic, 12x100mm, IS 6 bolts
Rear: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, XDR Freehub
Spokes Mavic Steel double butted flat spokes
Tires Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Bottom Bracket SRAM DUB T47 BSA, sealed bearings, 85,5mm
Crankset SRAM Rival 1 DUB GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Chainrings SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Shifters SRAM Rival Etap AXS 12s,
Rear Derailleur SRAM Rival XPLR Etap AXS, 12s
Cassette/Freewheel SRAM XG-1251 10-44T, 12s
Chain SRAM Rival, 12s, Powerlock
Brakes SRAM Rival Etap AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake Levers SRAM Rival, contact point adjustment, tooled reach adjust, plastic levers
Handlebars OnOff S9 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
Tape/Grips OnOff HEX Bartape
Stem Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Headset Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Seatpost Onoff S9 Carbon 0-R, diameter 27.2mm, length 400mm
Saddle FIZIK Terra Argo X5 140mm
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black / Small / 700c 08435392895170 MO-010-25US145
Black / Medium / 700c 08435392895187 MO-010-25US146
Black / Medium/Large / 700c 08435392895194 MO-010-25US147
Black / Large / 700c 08435392895200 MO-010-25US148
Black / X-Large / 700c 08435392895217 MO-010-25US149
