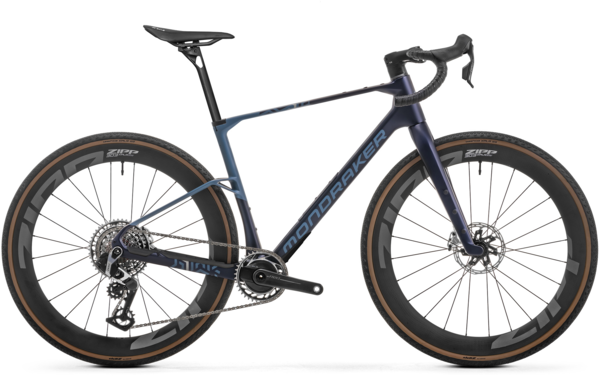

Mondraker Arid Carbon RR SL

Mondraker Arid Carbon RR SL
  • Color: Blue/Blue
$9,799.00
Color: Blue/Blue
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

The range-topping RR SL is our high-performance gravel bike par excellence. ZIPP 303 XPLR wheels (54mm deep and 32mm wide internal), coupled with 45mm Goodyear XPLR tires, make this model stand out from the rest of the range while offering even better acceleration and ride characteristics. It also comes with SRAM transmission and brakes in the form of SRAM RED AXS with a 40-tooth chainring and a 13-speed, 10-46 cassette. This model is also available as a frame-only option and comes in the Midnight Blue / Denim Blue / Bunker Grey colorway.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Seattube length 410 mm 450 mm 480 mm 510 mm 540 mm
Toptube length 520 mm 550 mm 580 mm 600 mm 630 mm
Bottom bracket drop -75 -75 -75 -75 -75
Bottom bracket height 269 mm 269 mm 269 mm 269 mm 269 mm
Chainstay length 425 mm 425 mm 425 mm 425 mm 425 mm
Seat tube angle 73° 73° 73° 73° 73°
Effective seattube angle 74° 74° 74° 74° 74°
Headtube angle 70° 70° 70° 70° 70°
Fork Offset 45 mm 45 mm 45 mm 45 mm 45 mm
Wheelbase 1003 mm 1035 mm 1067 mm 1089 mm 1121 mm
Headtube length 100 mm 125 mm 145 mm 175 mm 200 mm
Reach 363 mm 386 mm 411 mm 423 mm 446 mm
Stack 548 mm 572 mm 591 mm 619 mm 642 mm
Stem Length 60 mm 70 mm 70 mm 80 mm 90 mm
Fork Height 420 mm 420 mm 420 mm 420 mm 420 mm

Specs

Frame Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Fork Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Rims Zipp 303 XPLR SW, 32mm internal width,54mm rim depth, hookless, infinity hubs, 24 spokes
Hubs Front: ZR1 Disc Brake, 12x100mm,Centerlock
Rear: ZR1 Disc Brake, 12x142mm, XDR 6 Pawls, Compression Springs, Centerlock. XD Freehub
Spokes CX-Ray - Black
Tires Goodyear XPLR Inter 700x45
Bottom Bracket SRAM DUB T47 BSA, sealed bearings, 85,5mm
Crankset SRAM RED XPLR carbon, Power meter, DUB axle, thread-mount chainring, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 47,5
Chainrings SRAM 40T Thread Mount, alloy, narrow-wide,
Shifters SRAM RED XPLR AXS, Magic wheel, cage lock, 1x13s,
Rear Derailleur SRAM RED XPLR AXS, Magic wheel, cage lock, 1x13s,
Cassette/Freewheel SRAM XG-1391, 10-46T, 13s
Chain SRAM RED, 13s, Powerlock
Brakes SRAM RED AXS 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake Levers SRAM RED, contact point adjustment, tooled reach adjust, carbon levers
Handlebars OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Tape/Grips OnOff HEX Bartape
Stem Onoff Semi-Integrated, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Headset Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Seatpost Onoff S9 Carbon 15-R, 15mm offset, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle FIZIK Vento Argo 00 140mm
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue/Blue / Small / 700c 08435392895279 MO-010-25US155
Blue/Blue / Medium / 700c 08435392895286 MO-010-25US156
Blue/Blue / Medium/Large / 700c 08435392895293 MO-010-25US157
Blue/Blue / Large / 700c 08435392895309 MO-010-25US158
Blue/Blue / X-Large / 700c 08435392895316 MO-010-25US159
