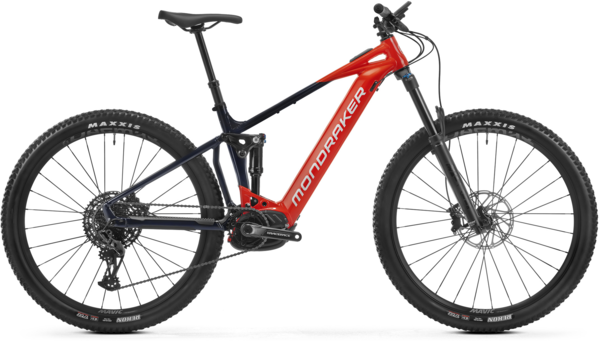

Mondraker Chaser R

Mondraker Chaser R
  • Color: Red/Blue
$5,999.00
Color: Red/Blue
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

More because the Aluminium Stealth Alloy frame houses an integrated 750Wh battery and the latest version of perhaps the most relevant motor on the market today: the Bosch CX. More because the Zero Suspension System delivers 150mm travel (with a 160mm fork). More because you have three builds to choose from, plus all-new ONOFF components and Forward Geometry. Chaser is our best and most accessible full-suspension eMTB for anyone looking to get started in the world of ebikes.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 380mm 420mm 450mm 490mm
Toptube length 605mm 625mm 650mm 670mm
Bottom bracket drop -25mm -25mm -25mm -25mm
Bottom bracket height 350mm 350mm 350mm 350mm
Chainstay length 455mm 455mm 455mm 455mm
Seat tube angle 73.5° 73.5° 73.5° 73.5°
Effective seattube angle 76° 76° 76° 76°
Headtube angle 65.5° 65.5° 65.5° 65.5°
Fork Offset 44mm 44mm 44mm 44mm
Wheelbase 1225mm 1245mm 1265mm 1285mm
Headtube length 110mm 110mm 130mm 130mm
Reach 450mm 470mm 490mm 510mm
Stack 622mm 622mm 640mm 640mm

Specs

Frame Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Fork Fox 36 29 Rhythm Float GRIP, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload
Rear Shock Fox Float Rhythm, 205x65mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Rims Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Hubs Front: Mavic, Boost 15x110mm, IS 6 bolts
Rear: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Spokes Mavic J-bend double butted, contactless lacing
Tires Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset Race Face Aeffect-R ebike, 160mm
Chainrings SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Shifters SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Rear Derailleur SRAM GX Eagle,12s
Cassette/Freewheel SRAM PG-1210, 11-50T, 12s
Chain SRAM SX Eagle, 12s, Powerlock
Brakes SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers SRAM DB8, tool reach adjust, lever pivot bushings
Handlebars Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Beehive, 1lock-on, 135mm
Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Headset Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle MDK ebike black
Pedals Sold Separately
Motor New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
Battery Bosch Powertube 750Wh
Controller/Display Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN
Red/Blue / Small / 29-inch 08435392895675 MO-010-25US316
Red/Blue / Medium / 29-inch 08435392895682 MO-010-25US317
Red/Blue / Large / 29-inch 08435392895699 MO-010-25US318
Red/Blue / X-Large / 29-inch 08435392895705 MO-010-25US319
