Mondraker Chrono

Mondraker Chrono
  • Color: Dirty-White/Black
  • Color: Black/Silver
Please select options

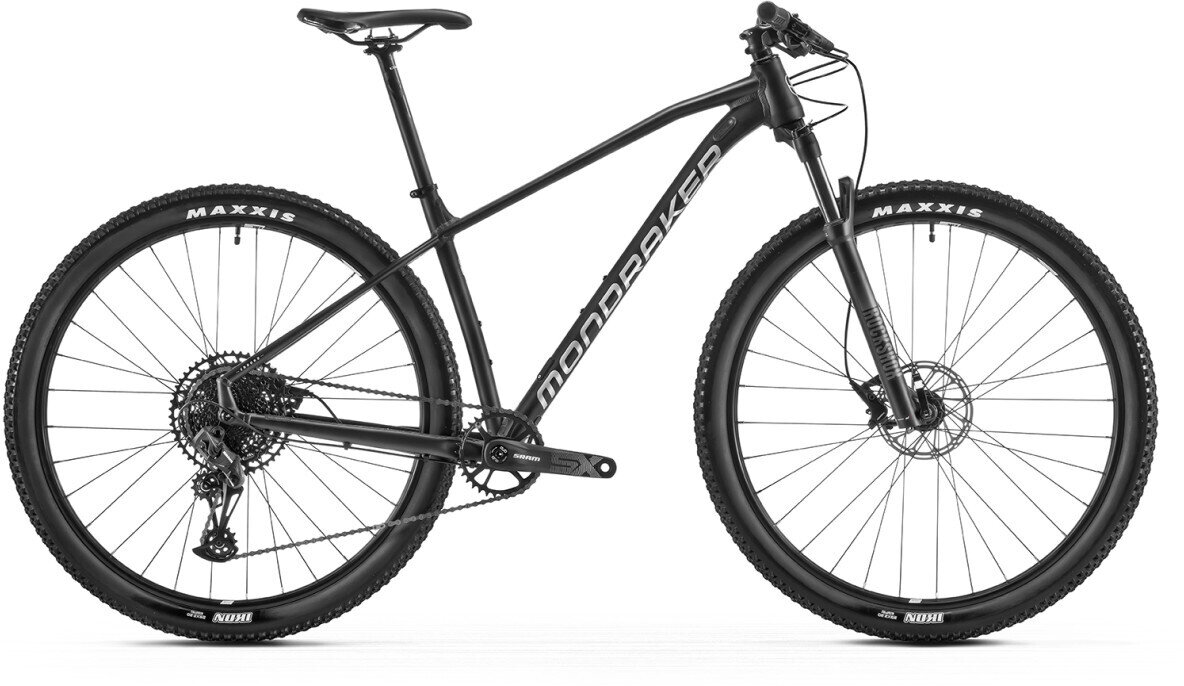

The Chrono, above all, is a dynamic bike.
Its frame is made of butted 6061 Xtralite Alloy and has our XC FORWARD GEOMETRY which will put you in an optimal position to pedal effectively while at the same time offering you stability and confidence when facing descents. It’s the lowest priced bike in the Chrono range but still gives you all of our more than 20 years of knowledge in the manufacture of first class bikes, which means you can enjoy our Racing DNA every time you take it out.


Frame Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle
Fork RockShox Judy Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 45mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Rear Shock N/A
Rims/Wheels MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
Tires Maxxis Ikon 29x2.20, 60TPI, wire bead
Crankset Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Chainwheel 34T, steel, X-Sync 2
Bottom Bracket Sram DUB BSA, sealed bearings, 73mm
Chain Sram SX Eagle, 12s, Powerlock
Rear Derailleur Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Rear Cogs Sram PG-1210, 11-50T, 12s
Shifters Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Handlebars Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9° backsweep, 0° upsweep, 31.8mm barbore
Tape/Grips Onoff Diamond, 1lock-on, 135mm
Stem Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7°, length: sizes S/M: 60mm, size L: 80mm, size XL: 90mm
Brake Levers Sram Level, tooled reach adjust, lever pivot bushings
Brakes ram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Pedals Sold Seperatly
Saddle Mondraker XC Series, steel rail
Seat Post Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Color(s) Dirty-White/Black -or- Black/Silver
Sizes S: 395mm / M: 430mm / L: 470mm / XL: 520mm

* Subject to change without notice.
