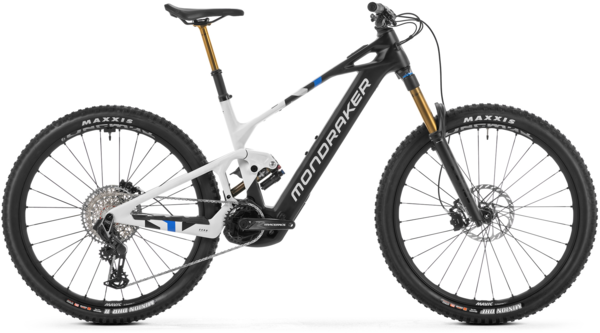

Mondraker Crafty Carbon RR S

Mondraker Crafty Carbon RR S
  • Color: Black/Blue/White
$8,999.00
Color: Black/Blue/White
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

The Crafty Carbon RR S is the first bike in the range to come with a full carbon fibre frame, rear triangle and rocker link. It also comes with a more compact, lighter 600Wh battery to strike the perfect balance between weight, power and performance. It comes with SRAM’s X0 AXS Eagle drivetrain, Maven Silver brakes and Fox suspension front and rear with a Transfer dropper seatpost, all with Kashima coating. ONOFF components’ S6 range of components round off the package with an 800mm wide carbon fibre handlebar. Don’t forget, the RR S is Bosch Powermore range extender compatible too.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Geometry Position Standard / Low Standard / Low Standard / Low Standard / Low Standard / Low
Seattube length 380 mm 410 mm 435 mm 460 mm 490 mm
Toptube length 581 mm/582 mm 596 mm/597 mm 618 mm/619 mm 640 mm/641 mm 662 mm/663 mm
Bottom bracket drop -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm -25 mm/-30 mm
Bottom bracket height 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm 350 mm/345 mm
Chainstay length 455 mm/456 mm 455 mm/456 mm 455 mm/456 mm 465 mm/466 mm 465 mm/466 mm
Seat tube angle 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65° 73°/72.65°
Effective seattube angle 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6° 77.95°/77.6°
Headtube angle 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15° 64.5°/64.15°
Fork Offset 44 mm 44 mm 44 mm/44 mm 44 mm 44 mm/44 mm
Wheelbase 1240 mm/1241 mm 1255 mm/1256 mm 1280 mm/1281 mm 1314 mm/1315 mm 1338 mm/1339 mm
Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm
Reach 445 mm/441 mm 460 mm/456 mm 480 mm/476 mm 500 mm/496 mm 520 mm/516 mm
Stack 638 mm/641 mm 638 mm/641 mm 647 mm/650 mm 656 mm/659 mm 665 mm/668 mm

Specs

Frame Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Fork Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Rims Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Hubs Front: Mavic, Boost 15x110mm, IS 6 bolts
Rear: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Spokes Mavic straight-pull double butted, contactless lacing
Tires Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset Race Face Aeffect-R ebike, 160mm
Chainrings SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Shifters SRAM Eagle AXS Pod MMX, 12s
Rear Derailleur SRAM X0 Eagle AXS, T-Type, 12s
Cassette/Freewheel SRAM XS-1295, 10-52T, T-Type, 12s
Chain SRAM GX Eagle T-Type, 12s, Powerlock
Brakes SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers SRAM Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Handlebars Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Stem Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Headset Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Seatpost Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size L size: 155mm -180mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle Ergon SM-10
Pedals Sold Separately
Motor New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
Battery Bosch Powertube 600Wh
Controller/Display Purion 400 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Blue/White / Small / 29-inch 08435392895903 MO-010-25US356
Black/Blue/White / Medium / 29-inch 08435392895910 MO-010-25US357
Black/Blue/White / Medium/Large / 29-inch 08435392895927 MO-010-25US358
Black/Blue/White / Large / 29-inch 08435392895934 MO-010-25US359
Black/Blue/White / X-Large / 29-inch 08435392895941 MO-010-25US360
