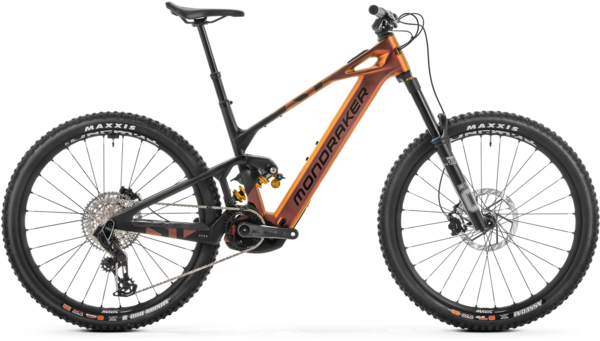

Mondraker Crafty Carbon XR

Mondraker Crafty Carbon XR
  • Color: Black/Mars
$9,999.00
Color: Black/Mars
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Our XR models have always stood out when you start pushing the limits. The Crafty Carbon XR is no exception and comes fitted with an Öhlins 170mm fork, an Öhlins coil rear shock, a full carbon fibre frame, SRAM’s X0 EAGLE AXS drivetrain, and hugely powerful Maven Silver brakes. Fitted with Bosch’s 600Wh internal removable battery, the optional Powermore 250Wh can be added (if desired) to increase range. Colour scheme: Mars / Black.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Geometry Postion Standard/Low Standard/Low Standard/Low Standard/Low Standard/Low
Seattube length 380 mm 410 mm 435 mm 460 mm/460 mm 490 mm
Toptube length 582 mm/583 mm 597 mm/598 mm 619 mm/620 mm 641 mm/642 mm 663 mm/664 mm
Bottom bracket drop -22 mm/-27 mm -22 mm/-27 mm -22 mm/-27 mm -22 mm/-27 mm -22 mm/-27 mm
Bottom bracket height 353 mm/348 mm 353 mm/348 mm 353 mm/348 mm 353 mm/348 mm 353 mm/348 mm
Chainstay length 455 mm/456 mm 455 mm/456 mm 455 mm/456 mm 465 mm/466 mm 465 mm/466 mm
Seat tube angle 72.6°/72.25° 72.6°/72.25° 72.6°/72.25° 72.6°/72.25° 72.6°/72.25°
Effective seattube angle 77.55°/77.2° 77.55°/77.2° 77.55°/77.2° 77.55°/77.2° 77.55°/77.2°
Headtube angle 64.1°/63.75° 64.1°/63.75° 64.1°/63.75° 64.1°/63.75° 64.1°/63.75°
Fork Offset 44 mm 44 mm 44 mm 44 mm 44 mm
Wheelbase 1245mm/1246 mm 1260 mm/1261 mm 1284 mm/1285 mm 1318 mm/1319 mm 1342 mm/1343 mm
Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm
Reach 440 mm/436 mm 455 mm/451 mm 475 mm/471 mm 495 mm/491 mm 515 mm/511 mm
Stack 641 mm/644 mm 641 mm/644 mm 650 mm/653 mm 659 mm/662 mm 668 mm/671 mm

Specs

Frame Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Fork Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Rims Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Hubs Front: Mavic, Boost 15x110mm, IS 6 bolts
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Spokes Mavic straight-pull double butted, contactless lacing
Tires Front: Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, DH casing, 60x2TPI, folding bead
Rear: Maxxis Minion DHR II 29x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset e*Thirteen Helix Race Carbon E*Spec Plus, All sizes: 160mm
Chainrings SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Shifters SRAM Eagle AXS Pod MMX, 12s
Rear Derailleur SRAM X0 Eagle AXS, T-Type, 12s
Cassette/Freewheel SRAM XS-1295, 10-52T, T-Type, 12s
Chain SRAM GX Eagle T-Type, 12s, Powerlock
Brakes SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 220/200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers SRAM Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Handlebars Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Stem Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Headset Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle Ergon SM-10
Pedals Sold Separately
Motor New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y)
Battery Bosch Powertube 600Wh
Controller/Display Purion 400 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Mars / Small / 29-inch 08435392896009 MO-010-25US366
Black/Mars / Medium / 29-inch 08435392896016 MO-010-25US367
Black/Mars / Medium/Large / 29-inch 08435392896023 MO-010-25US368
Black/Mars / Large / 29-inch 08435392896030 MO-010-25US369
Black/Mars / X-Large / 29-inch 08435392896047 MO-010-25US370
