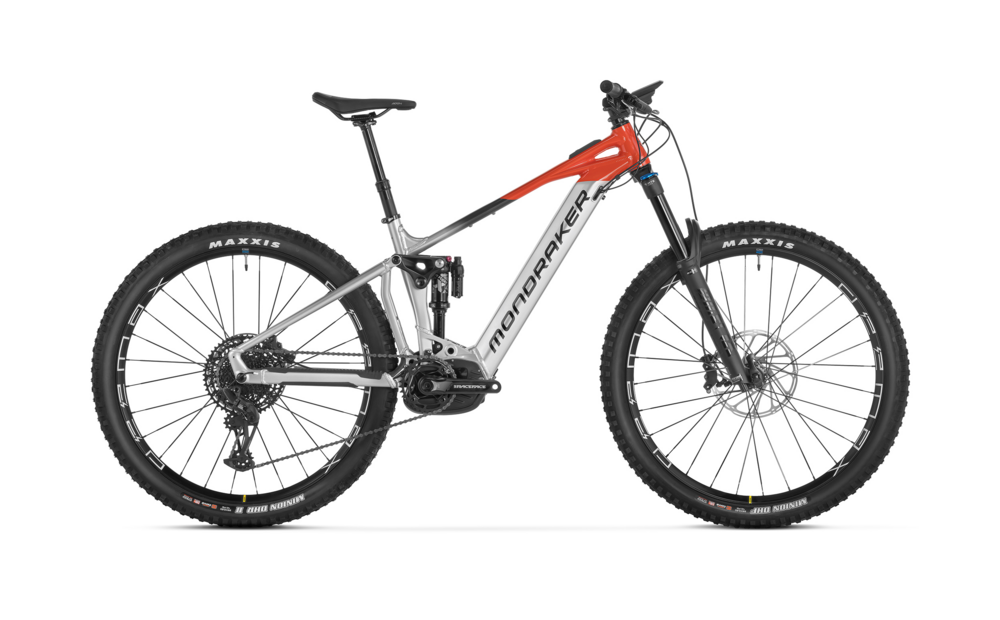

Mondraker Crafty R
$6,799.00
Details
We love our eMTB enduros. They’re exactly what we wanted them to be, they’ve got our Mondraker DNA built in, and they’re what most of us really need from a bike as well. They help us to disconnect from our day to day lives and connect us with sport and nature. In 2023 our eMTB enduros will once again be worldwide benchmarks in their field, and as an added bonus come fitted with the latest upgrades from Bosch or Shimano depending on the model. The CRAFTY family launches the Bosch Smart System motor combined with the all-new minimalist Mini Remote wireless remote control and toptube integrated System Controller. The latter displays the mode you’re in, your remaining battery level and it even lets you change your assistance mode without having to fit the KIOX display if you choose not to.
| Frame size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seattube length | 380mm | 420mm | 450mm | 490mm |
| Toptube length | 605mm | 625mm | 650mm | 670mm |
| Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| Bottom bracket height | 350mm | 350mm | 350mm | 350mm |
| Chainstay length | 455mm | 455mm | 455mm | 455mm |
| Seat tube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Effective seattube angle | 76° | 76° | 76° | 76° |
| Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Wheelbase | 1225mm | 1245mm | 1265mm | 1285mm |
| Headtube length | 110mm | 110mm | 130mm | 130mm |
| Reach | 450mm | 470mm | 490mm | 510mm |
| Stack | 622mm | 622mm | 640mm | 640mm |
Specs
| Motor | Motor: Bosch Performance Line CX Cruise (20 mph) GEN4 SMART SYSTEM |
|---|---|
| Pedals | Sold Separately |
| Battery | Battery: Bosch Powertube 750Wh |
| Controller/Display | Display: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Fork | Fork: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Hubs | Front Hub: Mavic, Boost 15x110mm, IS 6 bolts ; Rear Hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts |
| Rims | Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Stem | Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Chain | Chain: Sram SX Eagle, 12s, Powerlock |
| Frame | Frame: Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Tires | Front Tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead ; Rear Tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Brakes | Front Brake: Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads ; Rear Brake: Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Saddle | Saddle: FIZIK Terra Aidon X5 145mm |
| Spokes | Spokes: Mavic J-bend double butted, contactless lacing |
| Headset | Headset: Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Crankset | Crankset: Race Face Aeffect ebike, 165mm |
| Seatpost | Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Shifters | Shift Levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Chainrings | Rings: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Handlebars | Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Rear Shock | Rear Shock: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Tape/Grips | Grips: Onoff Desert, 1lock-on, 135mm |
| Brake Levers | Brake Lever: Sram DB8, tool reach adjust, lever pivot bushings |
| Rear Derailleur | Rear Derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Cassette/Freewheel | Cassette: Sram PG-1210, 11-50T, 12s |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Flame Red / X-Large / 29-inch | 8435392887434 | 010.24US396 |
| Flame Red / Small / 29-inch | 8435392885355 | 010.24US393 |
| Vortex Grey / Large / 29-inch | 8435392887403 | 010.24US391 |
| Flame Red / Medium / 29-inch | 8435392887410 | 010.24US394 |
| Vortex Grey / Small / 29-inch | 8435392885317 | 010.24US389 |
| Vortex Grey / Medium / 29-inch | 8435392887397 | 010.24US390 |
| Vortex Grey / X-Large / 29-inch | 8435392885348 | 010.24US392 |
| Flame Red / Large / 29-inch | 8435392887427 | 010.24US395 |
