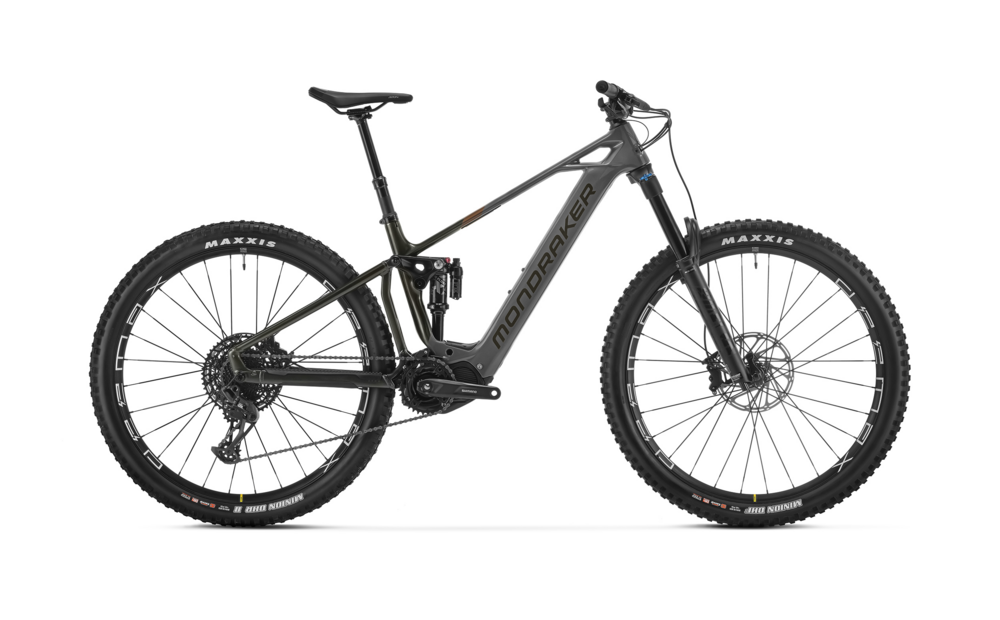

Mondraker Crusher

Mondraker Crusher
$6,999.00
Color: Nimbus Grey
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

The entry level build has a Fox 38 29 Float FIT GRIP EVOL Performance fork, SRAM GX Eagle chainset, SRAM DB8 brakes, an ONOFF Pija dropper seatpost (with between 125mm - 200mm of travel depending on frame size) and Maxxis Minion DHF/DHR II 2.6” EXO+ tyres. Available in ‘Nimbus Grey - Vortex Grey - Bronze’.

Sizes:
Frame sizeSmallMediumLargeX-Large
Toptube length605mm 625mm650mm670mm
Bottom bracket drop-25mm -25mm-25mm-25mm
Bottom bracket height350mm 350mm350mm350mm
Chainstay length455mm 455mm455mm455mm
Seat tube angle73.5º 73.5º73.5º73.5º
Effective seattube angle77° 77°77°77°
Headtube angle65º 65º65º65º
Fork Offset44 mm 44mm44mm44mm
Wheelbase1227mm 1247mm1267mm1387mm
Headtube length110mm 110mm130mm130mm
Reach450mm 470mm490mm510mm
Stack622mm 622mm640mm640mm

Specs

Motor Motor: Shimano STEPS EP801
Pedals Sold Separately
Battery Battery: Simplo internal 720Wh G3
Controller/Display Display: Shimano EN600
Fork Fork: Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Hubs Front Hub: Mavic, Boost 15x110mm, IS 6 bolts ; Rear Hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Rims Rims: Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Stem Stem: Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Chain Chain: Sram SX Eagle, 12s, Powerlock
Frame Frame: Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Tires Front Tire: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead ; Rear Tire: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes Front Brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads ; Rear Brake: Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Saddle Saddle: FIZIK Terra Aidon X5 145mm
Spokes Spokes: Mavic J-bend double butted, contactless lacing
Headset Headset: Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom
Crankset Crankset: Shimano Steps FC-EM600 ebike, 165mm
Seatpost Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Shifters Shift Levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Chainrings Rings: Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Handlebars Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Rear Shock Rear Shock: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Tape/Grips Grips: Onoff Desert, 1lock-on, 135mm
Brake Levers Brake Lever: Sram DB8, tool reach adjust, lever pivot bushings
Rear Derailleur Rear Derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Cassette/Freewheel Cassette: Sram PG-1210, 11-50T, 12s

* Subject to change without notice.

Part Numbers

Option UPC MPN
Nimbus Grey / Large / 29-inch 8435392885218 010.24US363
Nimbus Grey / X-Large / 29-inch 8435392885225 010.24US364
Nimbus Grey / Medium / 29-inch 8435392887366 010.24US362
Nimbus Grey / Small / 29-inch 8435392885195 010.24US361
