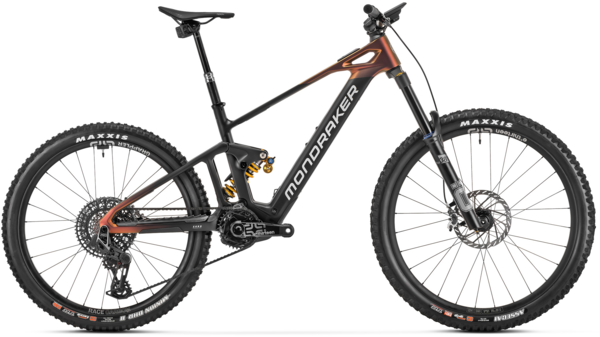

Mondraker Dune XR

Mondraker Dune XR
  • Color: Black/Mars/Silver
$11,999.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable

Details

It’s the only build with a 180mm fork and coil shock. It’s got a 180mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX22M.2 205x65mm shock, SRAM X0 Eagle AXS transmission with T-Type rear mech, E.13 TRS Race carbon cranks, SRAM Code Ultimate Stealth brakes, RockShox Reverb Stealth AXS seatpost and e*thirteen Grappler Race Carbon wheels.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 380mm 420mm 450mm 490mm
Toptube length 600mm 620mm 645mm 665mm
Bottom bracket drop -18/-3mm -18/-3mm -18/-3mm -18/-3mm
Bottom bracket height 355mm 355mm 355mm 355mm
Chainstay length 445mm 445 mm 445mm 445mm
Seat tube angle 73,5º 73,5º 73,5º 73,5º
Effective seattube angle 77,0º 77,0º 77,0º 77,0º
Headtube angle 63,5º 63,5º 63,5º 63,5º
Fork Offset 44 mm 44mm 44mm 44mm
Wheelbase 1237mm 1265mm 1290mm 1314mm
Headtube length 100mm 110mm 130mm 140mm
Reach 440mm 460mm 480mm 500mm
Stack 625mm 634mm 652mm 662mm

Specs

Frame Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Fork Öhlins RXF 38 M.2 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Rims e*thirteen Grappler Carbon, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes, 29 front, 27''5 rear
Hubs Front: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires Front: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Rear: Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Chainrings SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Shifters SRAM Eagle AXS Pod MMX, 12s
Rear Derailleur SRAM X0 Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Cassette/Freewheel SRAM XG-1295, 10-52T, T-Type, 12s
Chain SRAM X0 Eagle T-Type, 12s, Powerlock
Brakes SRAM Code Ultimate Stealth, oversized 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers SRAM Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Handlebars Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Tape/Grips Onoff Desert, 1lock-on, 135mm
Stem Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Headset Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seatpost RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle Fizik Terra Aidon Slim X5
Pedals Sold Separately
Motor Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide
Battery Bosch Compact Powertube 400Wh
Controller/Display Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Mars/Silver / Small / 29-inch front / 27.5-inch rear 08435392896450 MO-010-25US262
Black/Mars/Silver / Medium / 29-inch front / 27.5-inch rear 08435392896467 MO-010-25US263
Black/Mars/Silver / Large / 29-inch front / 27.5-inch rear 08435392896474 MO-010-25US264
Black/Mars/Silver / X-Large / 29-inch front / 27.5-inch rear 08435392896481 MO-010-25US265
Mars / Small / 29-inch front / 27.5-inch rear 08435392888516 MO-010-24US262
Mars / Medium / 29-inch front / 27.5-inch rear 08435392888523 MO-010-24US263
Mars / Large / 29-inch front / 27.5-inch rear 08435392888530 MO-010-24US264
Mars / X-Large / 29-inch front / 27.5-inch rear 08435392888547 MO-010-24US265
