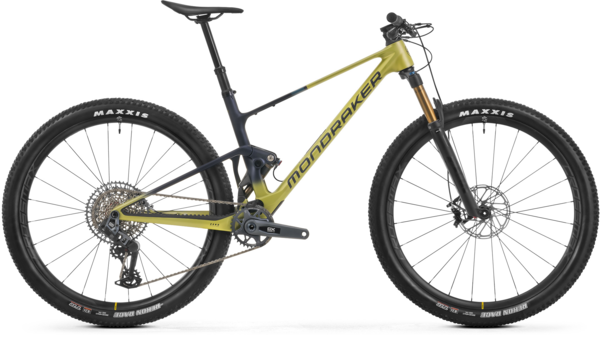

Mondraker F-Podium RR

Mondraker F-Podium RR
  • Color: Blue/Yellow/Green
$7,999.00
Color: Blue/Yellow/Green
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Carbon cross-country bike

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 410 mm 440 mm 470 mm 500 mm
Toptube length 576 mm 601 mm 629,4 mm 657,8 mm
Bottom bracket drop -40 mm -40 mm -40 mm -40 mm
Bottom bracket height 335 mm 335 mm 335 mm 335 mm
Chainstay length 435 mm 435 mm 435 mm 435 mm
Seat tube angle 72,5° 72,9° 73,2° 73,5°
Effective seattube angle 76,2° 76,2° 76,2° 76,2°
Headtube angle 66,5° 66,5° 66,5° 66,5°
Fork Offset 44 mm 44 mm 44 mm 44 mm
Wheelbase 1152 mm 1177 mm 1208 mm 1239 mm
Headtube length 90 mm 90 mm 105 mm 120 mm
Reach 430 mm 455 mm 480 mm 505 mm
Stack 594,6 mm 594,6 mm 608,3 mm 622,1 mm

Specs

Frame F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Fork Fox 34 Step Cast Float SL Factory Kashima, GRIP SL, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload
Rear Shock Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Rims Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Hubs Front: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Spokes Mavic 24 straight-pull double butted spokes
Tires Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm
Crankset SRAM GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55
Chainrings 34T, CNC-machined alloy, T-Type
Shifters SRAM Eagle AXS Pod Ultimate, 12s
Rear Derailleur SRAM GX Eagle AXS T-Type,12s
Cassette/Freewheel SRAM XS-1275, 10-52T, 12s
Chain SRAM GX Eagle, 12s, Powerlock
Brakes SRAM Level Silver 4P Stealth, 2 piece caliper, Centerline 180/160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers SRAM Level Silver, tools-free reach adjust, lever pivot bearings
Handlebars Onoff S6 Carbon 0.2, rise: 5mm, width: 760mm, 8º backsweep, 4º upsweep, 31.8mm barbore
Tape/Grips Onoff Foam lightweight 135mm
Stem Onoff S6 6061 T6 Alloy + CNC, 31.8mm barbore, rise: -7º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 2-BY Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle Fizik Vento Argo X5
Pedals Sold Separately
Accessories & Extras Fox 3 position dual pull push to lock fork remote

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue/Yellow/Green / Small / 29-inch 08435392894807 MO-010-25US041
Blue/Yellow/Green / Medium / 29-inch 08435392894814 MO-010-25US042
Blue/Yellow/Green / Large / 29-inch 08435392894821 MO-010-25US043
Blue/Yellow/Green / X-Large / 29-inch 08435392894838 MO-010-25US044
