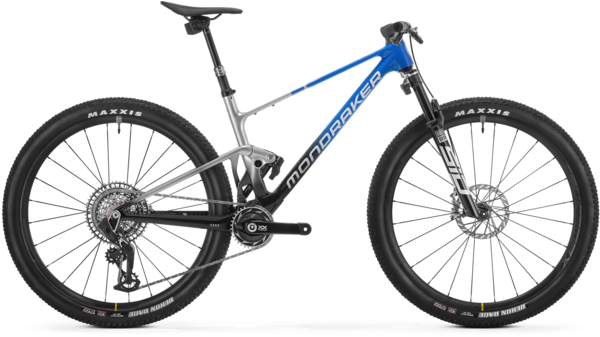

Mondraker F-Podium RR SL

Mondraker F-Podium RR SL
  • Color: Blue/Silver/Black
$11,999.00
Color: Blue/Silver/Black
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Carbon cross-country bike.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 410 mm 440 mm 470 mm 500 mm
Toptube length 576 mm 601 mm 629,4 mm 657,8 mm
Bottom bracket drop -40 mm -40 mm -40 mm -40 mm
Bottom bracket height 335 mm 335 mm 335 mm 335 mm
Chainstay length 435 mm 435 mm 435 mm 435 mm
Seat tube angle 72,5° 72,9° 73,2° 73,5°
Effective seattube angle 76,2° 76,2° 76,2° 76,2°
Headtube angle 66,5° 66,5° 66,5° 66,5°
Fork Offset 44 mm 44 mm 44 mm 44 mm
Wheelbase 1152 mm 1177 mm 1208 mm 1239 mm
Headtube length 90 mm 90 mm 105 mm 120 mm
Reach 430 mm 455 mm 480 mm 505 mm
Stack 594,6 mm 594,6 mm 608,3 mm 622,1 mm

Specs

Frame F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount. MIND System V2
Fork Rockshox SID Ultimate Flight Attendant, 120mm, Debon Air+, tapered steerer tube, Boost 15x110mm axle, 35mm tapered aluminum stanchions, offset 44mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock)
Rear Shock Rockshox SID Luxe Ultimate Flight Attendant, 165x45mm. Settings: Extl rebnd, E-cont. 3 pos comp (open/pedal/lock). Trunnion top mount, 30x8mm bottom bushings
Rims Mavic CrossMax Carbon SL Ultimate 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Hubs Front: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Spokes Mavic 24 straight-pull double butted spokes
Tires Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm
Crankset SRAM XX SL Carbon Eagle T-Type, Power Meter, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 55
Chainrings 34T, CNC-machined alloy, T-Type
Shifters SRAM Eagle AXS Pod Ultimate, 12s
Rear Derailleur SRAM XX SL Eagle AXS, T-Type, 12s
Cassette/Freewheel SRAM XS-1299, 10-52T, T-Type, 12s
Chain SRAM XX SL Eagle T-Type, 12s, Powerlock
Brakes SRAM Level Ultimate 4P Stealth, 2 piece caliper, HS2 180/160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers SRAM Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Handlebars OnOff S9 Integrated Carbon Handlebar, width: 760mm, 8º Backsweep, 0º Upsweep, S size: 55mm length -12º rise, M size: 55mm length -12º L size: 65mm length -14º rise, XL size: 75mm length -15º rise
Tape/Grips Onoff Foam lightweight 135mm
Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock
Seatpost RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x100mm M size: 390x125mm L size: 440x150mm XL size: 440x170mm
Saddle Fizik Vento Argo X5
Pedals Sold Separately
Accessories & Extras AXS controlled fork remote

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue/Silver/Black / Small / 29-inch 08435392894845 MO-010-25US045
Blue/Silver/Black / Medium / 29-inch 08435392894852 MO-010-25US046
Blue/Silver/Black / Large / 29-inch 08435392894869 MO-010-25US047
Blue/Silver/Black / X-Large / 29-inch 08435392894876 MO-010-25US048
