Details

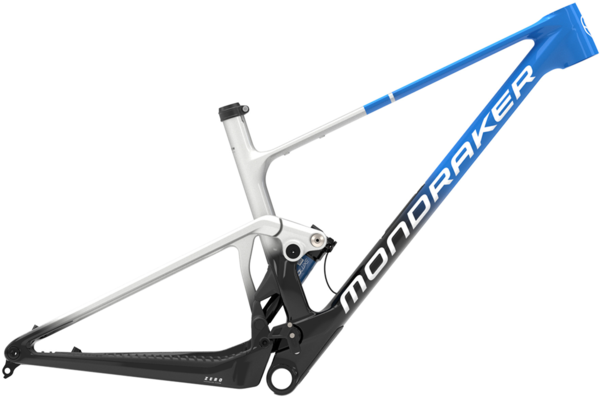

Carbon cross country bike frame

Sizes:
Frame size	Small	Medium	Large	X-Large
Seattube length	410 mm	440 mm	470 mm	500 mm
Toptube length	576 mm	601 mm	629,4 mm	657,8 mm
Bottom bracket drop	-40 mm	-40 mm	-40 mm	-40 mm
Bottom bracket height	335 mm	335 mm	335 mm	335 mm
Chainstay length	435 mm	435 mm	435 mm	435 mm
Seat tube angle	72,5°	72,9°	73,2°	73,5°
Effective seattube angle	76,2°	76,2°	76,2°	76,2°
Headtube angle	66,5°	66,5°	66,5°	66,5°
Fork Offset	44 mm	44 mm	44 mm	44 mm
Wheelbase	1152 mm	1177 mm	1208 mm	1239 mm
Headtube length	90 mm	90 mm	105 mm	120 mm
Reach	430 mm	455 mm	480 mm	505 mm
Stack	594,6 mm	594,6 mm	608,3 mm	622,1 mm

Specs

Frame	F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount. MIND System V2
Rear Shock	Rockshox SID Luxe Ultimate, 165x45mm. Settings: Extl rebnd, 3 pos comp (open/pedal/lock). Trunnion top mount, 30x8mm bottom bushings
Headset	Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs with blocklock

* Subject to change without notice.

Option	UPC	MPN
Blue/Silver/Black / Small / 29-inch	08435392894883	MO-010-25US049
Blue/Silver/Black / Medium / 29-inch	08435392894890	MO-010-25US050
Blue/Silver/Black / Large / 29-inch	08435392894906	MO-010-25US051
Blue/Silver/Black / X-Large / 29-inch	08435392894913	MO-010-25US052
