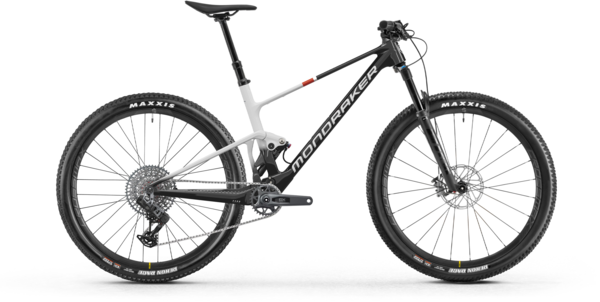

Mondraker F-Podium RS

Mondraker F-Podium RS
$7,499.00
Color: Black
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Carbon cross-country bike.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 410 mm 440 mm 470 mm 500 mm
Toptube length 576 mm 601 mm 629,4 mm 657,8 mm
Bottom bracket drop -40 mm -40 mm -40 mm -40 mm
Bottom bracket height 335 mm 335 mm 335 mm 335 mm
Chainstay length 435 mm 435 mm 435 mm 435 mm
Seat tube angle 72,5° 72,9° 73,2° 73,5°
Effective seattube angle 76,2° 76,2° 76,2° 76,2°
Headtube angle 66,5° 66,5° 66,5° 66,5°
Fork Offset 44 mm 44 mm 44 mm 44 mm
Wheelbase 1152 mm 1177 mm 1208 mm 1239 mm
Headtube length 90 mm 90 mm 105 mm 120 mm
Reach 430 mm 455 mm 480 mm 505 mm
Stack 594,6 mm 594,6 mm 608,3 mm 622,1 mm

Specs

Frame F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Fork Fox 34 Step Cast Float Grip EVOL Performance, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, rebound, air preload
Rear Shock Fox Float SL Performance SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Rims Mavic CrossMax XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Hubs Front: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Spokes Mavic 24 straight-pull double butted spokes
Tires Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Bottom Bracket Sram DUB BSA wide, sealed bearings, 73mm
Crankset Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Chainrings 34T, CNC-machined alloy, X-SYNC 2
Shifters SRAM Eagle AXS Pod, 12s
Rear Derailleur SRAM GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Cassette/Freewheel SRAM XS-1275, 10-52T, T-Type, 12s
Chain SRAM GX T-TYPE , 12s, Powerlock
Brakes SRAM Level Bronze 2P Stealth, 2 piece caliper, Centerline 180/160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers SRAM Level Bronze, tools-free reach adjust, lever pivot bushings
Handlebars Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Tape/Grips Onoff Twin, 1lock-on, 135mm
Stem MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Headset Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seatpost Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle Fizik Vento Argo X5
Pedals Sold Separately
Accessories & Extras Fox 3 position dual pull push to lock fork remote

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black / Small / 29-inch 08435392890731 MO-010-24US529
Black / Medium / 29-inch 08435392890748 MO-010-24US530
Black / Large / 29-inch 08435392890755 MO-010-24US531
Black / X-Large / 29-inch 08435392890762 MO-010-24US532
