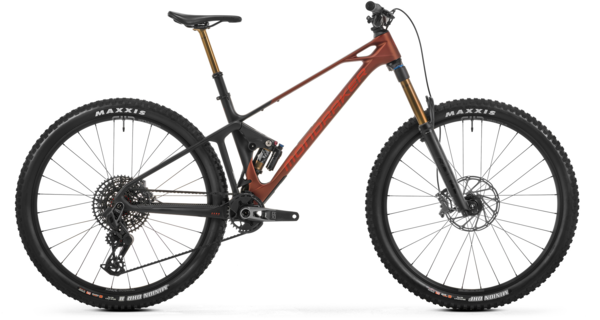

Mondraker Foxy Carbon RR

Mondraker Foxy Carbon RR
  • Color: Red/Black
$8,299.00
Color: Red/Black
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Carbon Enduro mountain bike.

Sizes:
Frame sizeSmallMediumLargeX-Large
Geometry Postion Standard/Low Standard/Low Standard/Low Standard/Low
Seattube length 375 mm 415 mm 445 mm 500 mm
Toptube length 600 mm 620 mm 650 mm 670 mm
Bottom bracket drop -23mm / -28 mm -23/-28 mm -23mm / -28 mm -23mm / -28 mm
Bottom bracket height 350 mm / 345 mm 350 mm/345 mm 350 mm / 345 mm 350 mm / 345 mm
Chainstay length 435 mm / 445 mm 435 mm/445 mm 435 mm / 445 mm 435 mm / 445 mm
Seat tube angle 70.5° / 70° 70.5°/70° 70.5° / 70° 70.5° / 70°
Effective seattube angle 76° / 75.5° 76°/75.5° 76° / 75.5° 76° / 75.5°
Headtube angle 65° / 64.5° 65°/64.5° 64.5° 65° / 64.5°
Fork Offset 44 mm 44 mm 44 mm 44 mm
Wheelbase 1203 mm / 1210 mm 1227 mm/1233 mm 1253 mm / 1260 mm 1279 mm / 1286 mm
Headtube length 90 mm 100 mm 115 mm 130 mm
Reach 445 mm / 440 mm 465 mm/460 mm 485 mm / 480 mm 505 mm / 500 mm
Stack 615 mm / 617 mm 623 mm/627 mm 637 mm / 641 mm 651 mm / 656 mm

Specs

Frame Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Fork Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Tires Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Rear: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Brakes SRAM Code Bronze Stealth, 4-piston caliper, Centerline 200/180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Crankset SRAM X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm, wide
Shifters SRAM Eagle AXS Pod, 12s
Cassette/Freewheel SRAM XS-1295, 10-52T, T-Type 12s
Rear Derailleur SRAM X0 Eagle AXS T-Type,12s
Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Brake Levers SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Handlebars Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Chain SRAM X0 Eagle T-Type, 12s, Powerlock
Tape/Grips Onoff Forest, CNC lock-on, 135mm
Stem Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Seatpost Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle SDG BEL-AIR 3.0, LPU foam, steel rails
Pedals Sold Separately
Hubs Front: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

* Subject to change without notice.

Part Numbers

Option UPC MPN
Red/Black / Small / 29-inch 08435392894920 MO-010-25US077
Red/Black / Medium / 29-inch 08435392894937 MO-010-25US078
Red/Black / Large / 29-inch 08435392894944 MO-010-25US079
Red/Black / X-Large / 29-inch 08435392894951 MO-010-25US080
