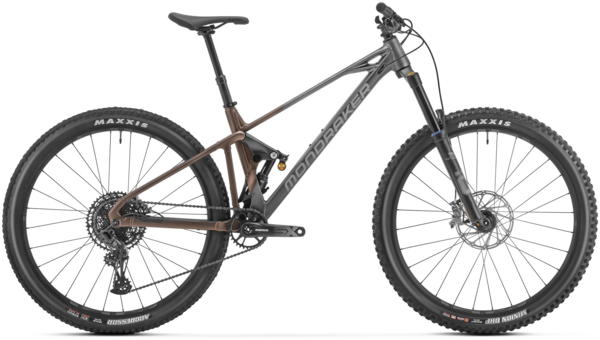

Mondraker Foxy R

Mondraker Foxy R
  • Color: Graphite/Bronze/Gray
$4,499.00
Color: Graphite/Bronze/Gray
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Alloy Enduro mountain bike.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 375mm 415mm 445mmm 500mm
Toptube length 600mm 622mm 647mm 670mm
Bottom bracket drop -22mm/-27mm -22mm/-27mm -22mm/-27mm -22mm/-27mm
Bottom bracket height 350mm/345mm 350mm/345mm 350mm/345mm 350mm/345mm
Chainstay length 438mm/345mm 438mm/445mm 438mm/445mm 445mm
Seat tube angle 71º/70.5º 71º/70.5º 71º/70.5º 71º/70.5º
Effective seattube angle 77°/76.5º 77°/76.5º 77°/76.5º 77°/76.5º
Headtube angle 64.5º/64º 64.5º/64º 64.5º/64º 64,5º
Fork Offset 44mm 44mm 44mm 44mm
Wheelbase 1210mm/1216mm 1233mm/1239mm 1260mm/1267mm 1286mm/1292mm
Headtube length 100mm 100mm 120mm 120mm
Reach 445mm/440mm 465mm/460mm 485mm/480mm 505mm/500mm
Stack 617mm 617mm 647mm 647mm

Specs

Frame Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Fork Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Rear Shock Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Tires Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Brakes SRAM Code Bronze Stealth, 4-piston caliper, Centerline 200/180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Crankset SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm, wide
Shifters SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette/Freewheel SRAM PG-1230, 11-50T, 12s
Rear Derailleur SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Headset Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Brake Levers SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Handlebars Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Chain SRAM SX Eagle, 12s, Powerlock
Tape/Grips Onoff Twin, 1lock-on, 135mm
Stem Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle SDG BEL-AIR 3.0, LPU foam, steel rails
Pedals Sold Separately
Hubs Front: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Spokes e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

* Subject to change without notice.

Part Numbers

Option UPC MPN
Graphite/Bronze/Gray / Small / 29-inch 08435392894760 MO-010-24US121
Graphite/Bronze/Gray / Medium / 29-inch 08435392894777 MO-010-24US122
Graphite/Bronze/Gray / Large / 29-inch 08435392894784 MO-010-24US123
Graphite/Bronze/Gray / X-Large / 29-inch 08435392894791 MO-010-24US124
