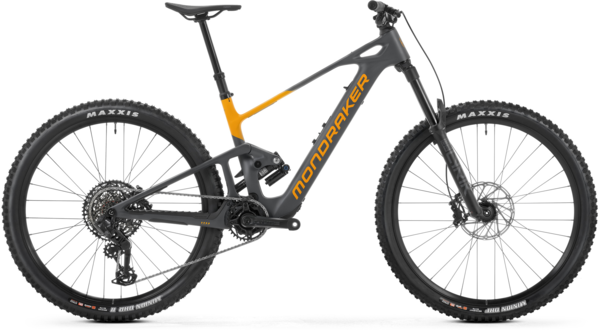

Mondraker Neat R
$8,399.00
Details
The first model in the line-up is the NEAT R, with a Fox 36 29 Float GRIP EVOL Performance fork, SRAM GX Eagle transmission, SRAM G2 R brakes, ONOFF Pija seatpost of up to 200mm travel (depending on size), and Mavic E-Crossride 29 wheels.
| Frame size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seattube length | 380mm | 420mm | 450mm | 490mm |
| Toptube length | 595mm | 615mm | 640mm | 660mm |
| Bottom bracket drop | -25mm | -25mm | -25mm | -25mm |
| Bottom bracket height | 348mm | 348mm | 348mm | 348mm |
| Chainstay length | 450mm | 450mm | 450mm | 450mm |
| Seat tube angle | 72,6º | 72,6º | 72,6º | 72,6º |
| Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Headtube angle | 64.5º | 64.5º | 64.5º | 64.5º |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Wheelbase | 1235mm | 1255mm | 1275mm | 1295mm |
| Headtube length | 110mm | 110mm | 130mm | 140mm |
| Reach | 450mm | 470mm | 495mm | 515mm |
| Stack | 626mm | 626mm | 642mm | 650 mm |
Specs
| Frame | Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
|---|---|
| Fork | RockShox LYRIK Select Charger RC 29, 160mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Rear Shock | Rock Shox Super Deluxe Select, 185x55mm, Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Hubs |
Front: Mavic, Boost 15x110mm, IS 6 bolts Rear: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Tires |
Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead Rear: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead |
| Crankset | e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm |
| Chainrings | SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Shifters | SRAM Eagle AXS Pod MMX, 12s |
| Rear Derailleur | SRAM S1000 Eagle AXS T-Type, 12s |
| Cassette/Freewheel | SRAM XS-1270, 10-52T, T-Type, 12s |
| Chain | SRAM GX Eagle T-Type, 12s, Powerlock |
| Brakes | SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Levers | SRAM DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Handlebars | Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Tape/Grips | Onoff Forest, CNC lock-on, 135mm |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Saddle | Fizik Terra Aidon Slim X5 |
| Pedals | Sold Separately |
| Motor | TQ HPR-50 |
| Battery | TQ HPR-50 360Wh integrated and removable |
| Controller/Display | TQ HPR display V01 |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Obsidian/Yellow/Gray / Small / 29-inch | 08435392895477 | MO-010-25US238 |
| Obsidian/Yellow/Gray / Medium / 29-inch | 08435392895484 | MO-010-25US239 |
| Obsidian/Yellow/Gray / Large / 29-inch | 08435392895491 | MO-010-25US240 |
| Obsidian/Yellow/Gray / X-Large / 29-inch | 08435392895507 | MO-010-25US241 |
