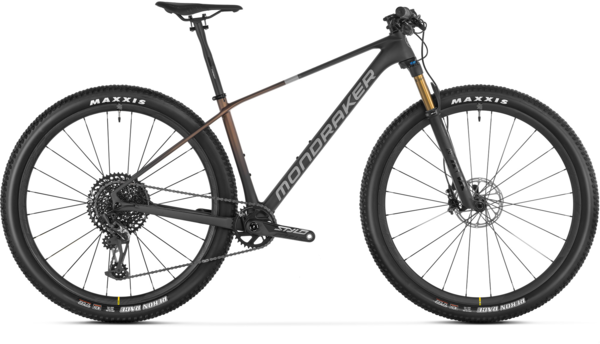

Mondraker Podium R

Mondraker Podium R
  • Color: Gray/Bronze/Silver
$5,999.00
Color: Gray/Bronze/Silver
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Carbon cross country bike.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 390 mm 420 mm 470 mm 510 mm
Toptube length 590 mm 611mm 632 mm 650 mm
Bottom bracket drop -65 mm -65 mm -65 mm -65 mm
Bottom bracket height 300 mm 300 mm 300 mm 300 mm
Chainstay length 430 mm 430 mm 430 mm 430 mm
Seat tube angle 73° 73° 73° 73°
Effective seattube angle 74.5° 74.5° 74.5° 74.5°
Headtube angle 68,5° 68,5° 68,5° 68.5°
Fork Offset 44 mm 44 mm 44 mm 44 mm
Wheelbase 1107 mm 1128 mm 1150 mm 1170 mm
Headtube length 85 mm 90 mm 100 mm 115 mm
Reach 425 mm 444 mm 463 mm 477 mm
Stack 598 mm 602 mm 611 mm 625 mm

Specs

Frame Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Fork Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
Rims Mavic CrossMax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes
Hubs Front: Mavic, Boost 15x110mm, IS 6 bolts
Rear: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Spokes Mavic straight-pull double butted, contactless lacing
Tires Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm
Crankset SRAM Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 52
Chainrings 34T, CNC-machined alloy, X-SYNC 2
Shifters SRAM Trigger GX Eagle, 12s, X-Actuation 1:1
Rear Derailleur SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2
Cassette/Freewheel SRAM XG-1275, 10-50T, 12s
Chain SRAM SX Eagle, 12s, Powerlock
Brakes SRAM Level Silver 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers SRAM Level Silver, tools-free reach adjust, lever pivot bearings
Handlebars Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Tape/Grips Onoff Desert, 1lock-on, 135mm
Stem MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 60mm, M size: 60mm, L size: 70mm, XL size: 80mm
Headset Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Seatpost Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Saddle Fizik Antares R7
Pedals Sold Separately
Accessories & Extras Fox single pull fork remote

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gray/Bronze/Silver / Small / 29-inch 08435392894661 MO-010-24US057
Gray/Bronze/Silver / Medium / 29-inch 08435392894678 MO-010-24US058
Gray/Bronze/Silver / Large / 29-inch 08435392894685 MO-010-24US059
Gray/Bronze/Silver / X-Large / 29-inch 08435392894692 MO-010-24US060
