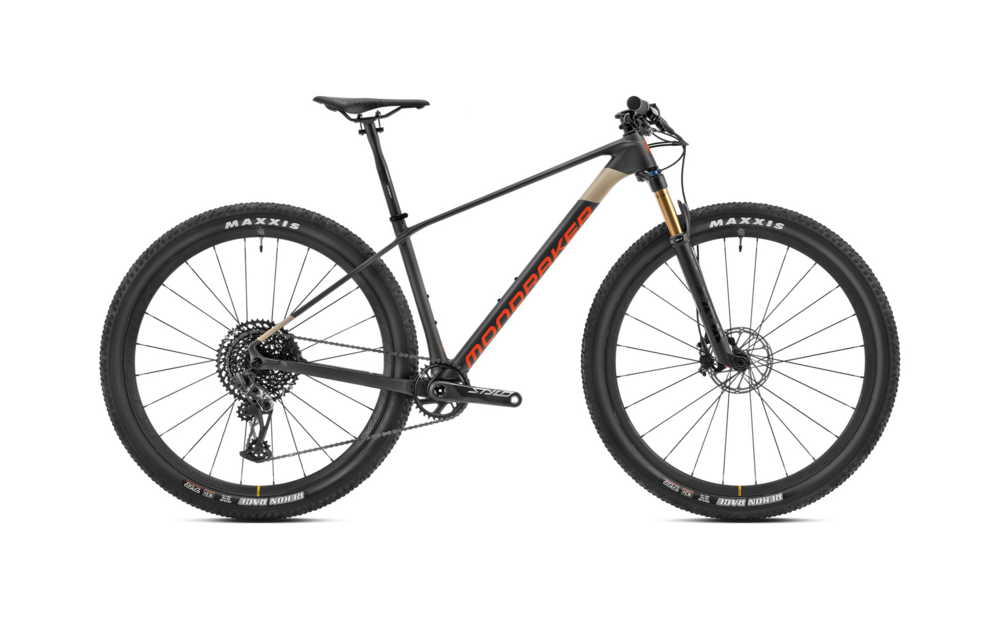

Mondraker Podium R

Mondraker Podium R
$4,799.00
$5,999.00
Color: Desert Grey
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

STEALTH AIR CARBON and XC FORWARD GEOMETRY tailored to the production bike with the lightest frame in the world, are credentials enough to show that the PODIUM R is the heir to the best that we are capable of at Mondraker. Weighing less than 9 kilos, it’s the ideal bike for riders who want to get the most out of every ride, as well as for those who want to compete at the highest level, either at a local weekend race or in a UCI points event, or even in a World Cup with the best riders on the planet!

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length390 mm 420 mm470 mm510 mm
Toptube length590 mm 611mm632 mm650 mm
Bottom bracket drop-65 mm -65 mm-65 mm-65 mm
Bottom bracket height305 mm 305 mm305 mm305 mm
Chainstay length430 mm 430 mm430 mm430 mm
Seat tube angle73° 73°73°73°
Effective seattube angle74.5° 74.5°74.5°74.5°
Headtube angle68,5° 68,5°68,5°68,5°
Fork Offset44 mm 44 mm44 mm44 mm
Wheelbase1107 mm 1128 mm1150 mm1170 mm
Headtube length85 mm 90 mm100 mm115 mm
Reach425 mm 444 mm463 mm477 mm
Stack598 mm 602 mm611 mm625 mm

Specs

Pedals Sold Separately
Fork Fork: Fox 32 Step Cast Float FIT4 EVOL Factory Kashima, 100mm, tapered steerer tube,15x110mm Boost axle, remote lockout, offset 44mm. Settings: lockout, compression micro-adjustment at low-speed, rebound, air preload
Hubs Front Hub: Mavic, Boost 15x110mm, IS 6 bolts ; Rear Hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub
Rims Rims: Mavic CrossMax Carbon SL R 29, 26mm internal width, hookless, tubeless ready, 24 spokes
Stem Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 60mm, size L: 70mm, size XL: 80mm
Chain Chain: Sram SX Eagle, 12s, Powerlock
Frame Frame: Podium 29 Stealth Air Carbon, XC Forward Geometry, BSA bottom bracket, tapered head tube, HHG internal cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Tires Front Tire: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead ; Rear Tire: Maxxis Rekon Race 29x2.35, EXO protection, tubeless ready, 120TPI, folding bead
Brakes Front Brake: Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad ; Rear Brake: Sram Level TLM, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Saddle Saddle: Fizik Antares R7
Spokes Spokes: Mavic straight-pull double butted, contactless lacing
Headset Headset: Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Crankset Crankset: Truvativ Stylo Carbon Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Seatpost Seatpost: Onoff Helium Carbon 0-R VFLEX, diameter 27.2mm, length 400mm
Shifters Shift Levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Chainrings Rings: 34T, CNC-machined alloy, X-SYNC 2
Handlebars Handlebar: Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Tape/Grips Grips: Onoff Desert, 1lock-on, 135mm
Brake Levers Brake Lever: Sram Level TLM, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rear Derailleur Rear Derrailleur: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:2
Cassette/Freewheel Cassette: Sram XG-1275, 10-50T, 12s
Bottom Bracket Bottom Bracket: Sram DUB BSA, sealed bearings, 73mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Desert Grey / Small / 29-inch 8435392888837 010.23US041
Desert Grey / Medium / 29-inch 8435392888844 010.23US042
Desert Grey / Large / 29-inch 8435392888851 010.23US043
Desert Grey / X-Large / 29-inch 8435392888868 010.23US044
