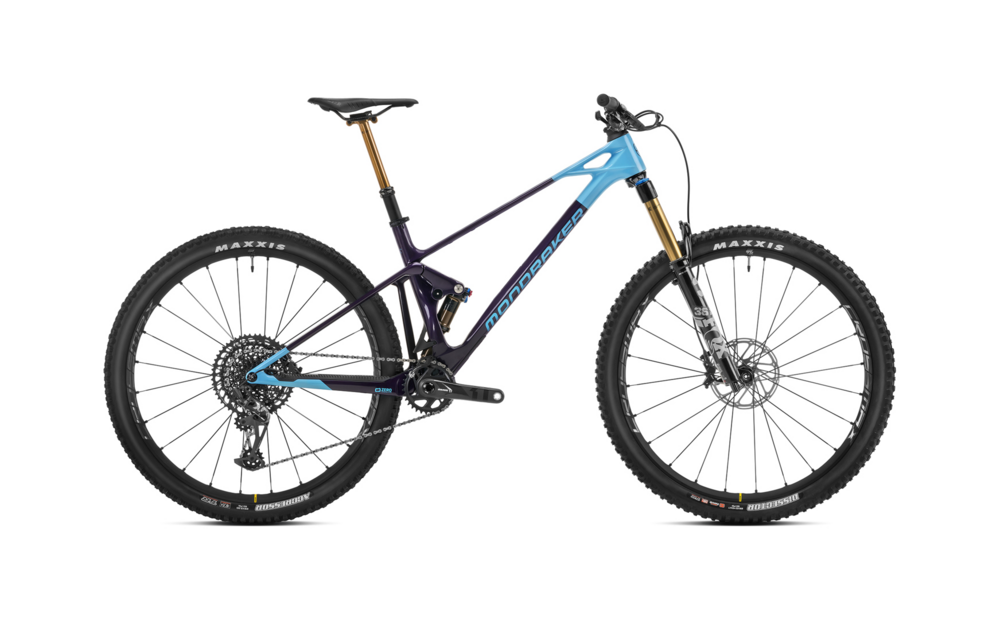

Mondraker Raze Carbon RR
$7,499.00
Details
With 150mm of travel up front and 130mm at the rear, the RAZE is no ordinary trail bike. Its kinematics and the specific settings of its suspensions give it capabilities never seen before in the discipline. What’s more it boasts the market leading technologies only found on our range-topping bikes: STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND. Its carbon frame is hand built using layers which are carefully arranged, depending the area of the frame in question, to achieve specific purposes and objectives thus achieving a stylized structure that provides maximum comfort and vibration damping along with an extremely light weight combined with very high strength. Last season it was chosen as the best trail bike of 2022 by the prestigious MBR (Mountain Bike Rider) magazine in the United Kingdom.
| Frame size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seattube length | 375 mm | 415 mm | 445 mm | 500 mm |
| Toptube length | 595 mm | 620 mm | 645 mm | 670 mm |
| Bottom bracket drop | -30 mm | -30 mm | -30 mm | -30 mm |
| Bottom bracket height | 343 mm | 343 mm | 343 mm | 343 mm |
| Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
| Seat tube angle | 71° | 71° | 71° | 71° |
| Effective seattube angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Headtube angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1193 mm | 1217 mm | 1243 mm | 1269 mm |
| Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
| Reach | 455 mm | 475 mm | 495 mm | 515 mm |
| Stack | 608 mm | 617 mm | 631 mm | 645 mm |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offsete. Settings: high and low-speed compression, high and low-speed rebound, air preload |
| Hubs | Front Hub: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts ; Rear Hub: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub |
| Rims | Rims: Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Stem | Stem: Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Chain | Chain: Sram GX Eagle, 12s, Powerlock |
| Frame | Frame: Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. |
| Tires | Front Tire: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead ; Rear Tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Brakes | Front Brake: Sram Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads ; Rear Brake: Sram Level Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Saddle | Saddle: Fizik Vento Argo X5 |
| Spokes | Spokes: Mavic 24 straight-pull double butted spokes |
| Headset | Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Crankset | Crankset: Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm |
| Seatpost | Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm |
| Shifters | Shift Levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1 |
| Chainrings | Rings: 32T, CNC-machined alloy, X-SYNC 2 |
| Handlebars | Handlebar: Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Rear Shock | Rear Shock: Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Tape/Grips | Grips: Onoff Desert, 1lock-on, 135mm |
| Brake Levers | Brake Lever: Sram Level Bronze, tools-free reach adjust, lever pivot bushings |
| Bottom Bracket | Bottom Bracket: Sram DUB BSA, sealed bearings, 73mm |
| Rear Derailleur | Rear Derrailleur: Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Cassette/Freewheel | Cassette: Sram XS-1275, 10-52T, T-Type, 12s |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Deep Purple / Large / 29-inch | 8435392888738 | 010.23US091 |
| Deep Purple / X-Large / 29-inch | 8435392888745 | 010.23US092 |
| Deep Purple / Small / 29-inch | 8435392888714 | 010.23US089 |
| Deep Purple / Medium / 29-inch | 8435392888721 | 010.23US090 |
