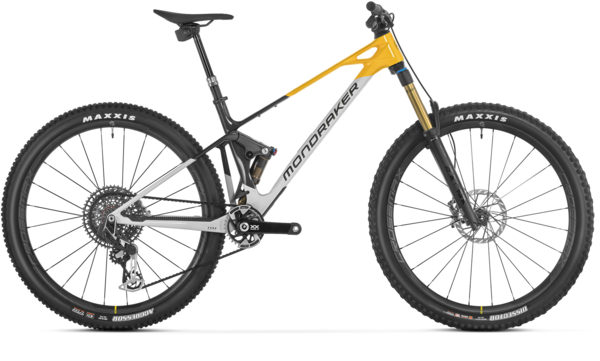

Mondraker Raze Carbon RR SL

Mondraker Raze Carbon RR SL
  • Color: Gray/Carbon/Yellow
$9,799.00
Color: Gray/Carbon/Yellow
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

From the moment the RAZE debuted it immediately became a benchmark within its category. With FORWARD GEOMETRY adapted to the discipline as well as Mondraker’s ZERO SUSPENSION SYSTEM, the RAZE boasts a spectacular carbon frame with an incredibly low weight. True to our philosophy it’s the trail bike to have fun on, the one you can go both up and down on like a dream. Even better its impressive climbing capabilities don’t compromise its ability to be a missile on the downhill sections. Without a doubt the RAZE CARBON RR SL is one of the stand-out bikes in our range.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 375 mm 415 mm 445 mm 500 mm
Toptube length 595 mm 620 mm 645 mm 670 mm
Bottom bracket drop -30 mm -30 mm -30 -30 mm
Bottom bracket height 343 mm 343 mm 343 mm 343 mm
Chainstay length 435 mm 435 mm 435 mm 435 mm
Seat tube angle 71° 71° 71° 71°
Effective seattube angle 76.5° 76.5° 76.5° 76.5°
Headtube angle 65.5° 65.5° 65.5° 65.5°
Fork Offset 44 mm 44 mm 44 mm 44 mm
Wheelbase 1193 mm 1217 mm 1243 mm 1269 mm
Headtube length 90 mm 100 mm 115 mm 130 mm
Reach 455 mm 475 mm 495 mm 515 mm
Stack 608 mm 617 mm 631 mm 645 mm

Specs

Frame Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Fork Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock Fox Float Factory Kashima EVOL, 205x57.5mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Tires Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Brakes SRAM Level Ultimate Stealth, 4-piston caliper, HS2 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rims Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Crankset SRAM XX Carbon Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Bottom Bracket SRAM DUB BSA, sealed bearings, 73mm, wide
Shifters SRAM Eagle AXS Pod MMX, 12s
Cassette/Freewheel SRAM XS-1295, 10-52T, T-Type, 12s
Rear Derailleur SRAM XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s
Headset Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Brake Levers SRAM Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever
Handlebars Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Chain SRAM X0 Eagle T-Type, 12s, Powerlock
Tape/Grips Onoff Desert, 1lock-on, 135mm
Stem Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Seatpost RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm
Saddle Fizik Vento Argo X5
Pedals Sold Separately
Hubs Fromt: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Spokes Mavic 24 straight-pull double butted spokes

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gray/Carbon/Yellow / Small / 29-inch 08435392894708 MO-010-24US109
Gray/Carbon/Yellow / Medium / 29-inch 08435392894715 MO-010-24US110
Gray/Carbon/Yellow / Large / 29-inch 08435392894722 MO-010-24US111
Gray/Carbon/Yellow / X-Large / 29-inch 08435392894739 MO-010-24US112
