Niner AIR 9 RDO 5-Star X01 Eagle

Niner AIR 9 RDO 5-Star X01 Eagle
  • Color: Sand/Orange
  • Color: Satin Carbon/Silver
$6,799.00
Please select options
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

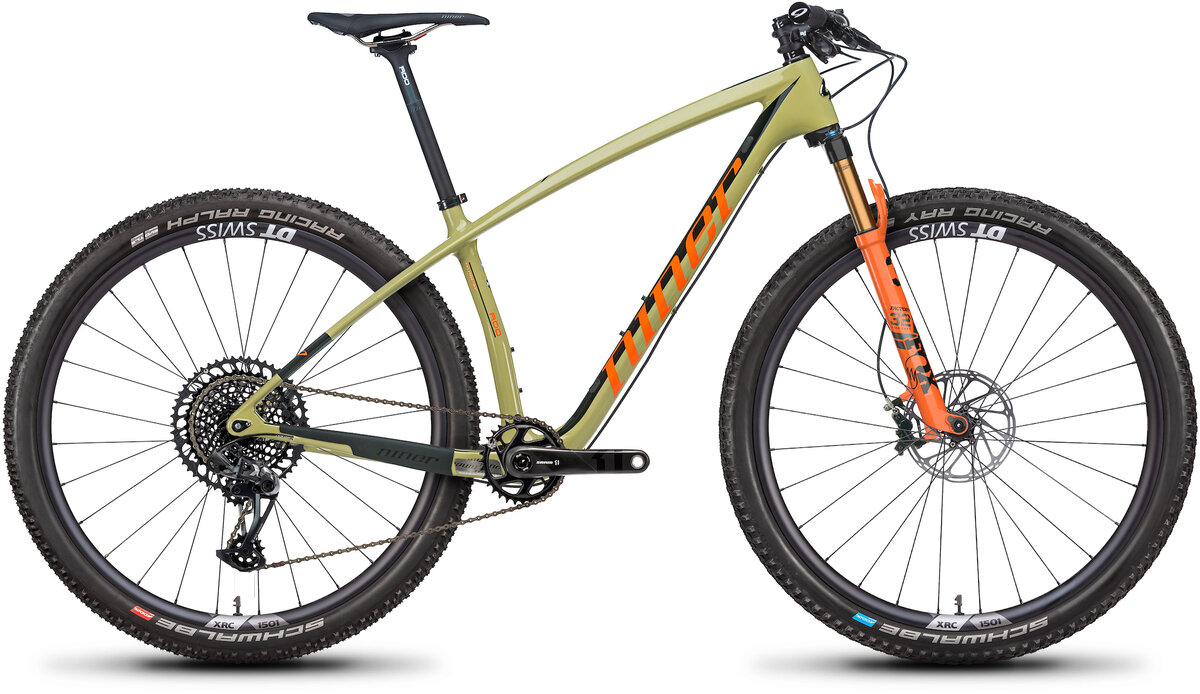

Our flagship carbon fiber hardtail: AIR 9 RDO. Niner's purest expression of light, stiff Race Day Optimized carbon fiber rules the racecourse. This efficient yet compliant frame makes the most of carbon's unique properties to give you the best ride, no matter if you're gunning for a podium or cruising local singletrack.

bike frame with labeled dimensions
Bike Sizes:
XSSMMDLGXL
A. Reach (mm) 393 406 424 441 458
B. Stack (mm) 602 607 617 626 635
C. Standover (mm) 677 714 737 786 832
D. Effective Top Tube (mm) 575 590 610 630 650
E. Head Tube Angle 70° 70° 70° 70° 70°
F. Head Tube Length (mm) 95 100 110 120 130
G. Seat Tube Angle 70° 70° 70° 70° 70°
H. Seat Tube Length (mm) 356 394 419 483 533
J. Bottom Bracket Drop (mm) 58 58 58 58 58
M. Wheelbase (mm) 1074 1090 1110 1131 1151
N. Front to Center (mm) 646 661 682 702 722
O. Chainstay Length (mm) 431 431 431 431 431

Specs

Frame NINER RDO CARBON FIBER, INTERNAL CABLE ROUTING, PF30 BB, SINGLE-SPEED COMPATIBLE
Fork FOX 32 SC FLOAT FACTORY EVOL FIT4, W/ REMOTE L/O, KASHIMA COAT, 100MM, 110X15MM, 44MM OFFSET
Rims DT Swiss XRC 1501 SPLINE ONE, carbon clincher, 30mm internal
Hubs DT Swiss 240 Centerlock with Ratchet EXP 36
Spokes DT competition race straight pull
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE RACING RAY EVO SUPER TERRAIN TLE ADDIX SPEEDGRIP 2.35
REAR: SCHWALBE RACING RALPH EVO SUPER TERRAIN TLE ADDIX SPEED 2.35
Bottom Bracket SRAM DUB PF30
Crankset SRAM X1 EAGLE CARBON DUB, 32T (XS/S - 170MM, M/L/XL - 175MM)
Chainrings 32T
Shifters SRAM X01 EAGLE 12SP
Rear Derailleur SRAM X01 EAGLE 12SP
Cassette/Freewheel SRAM EAGLE XG 1295, 10-52T
Chain SRAM X01 EAGLE 12SP
Brakes SRAM G2 RSC
Brake Levers SRAM G2 RSC
Handlebars NINER FLAT TOP RDO, 780MM, NINER GRAPHIC
Tape/Grips NINER GRRRIPS L/O SOFT COMPOUND
Stem NINER RDO STEM, NINER GRAPHIC (XS/S/M- 80MM, L/XL- 90MM)
Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost NINER RDO SEAT POST, 400MM, NINER GRAPHIC
Saddle NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Sand/Orange / X-Small 037592202659 03-759-22-02-65
Sand/Orange / Small 037592203656 03-759-22-03-65
Sand/Orange / Medium 037592204653 03-759-22-04-65
Sand/Orange / Large 037592205650 03-759-22-05-65
Sand/Orange / X-Large 037592206657 03-759-22-06-65
Satin Carbon/Silver / X-Small 037592202208 03-759-22-02-20
Satin Carbon/Silver / Small 037592203205 03-759-22-03-20
Satin Carbon/Silver / Medium 037592204202 03-759-22-04-20
Satin Carbon/Silver / Large 037592205209 03-759-22-05-20
Satin Carbon/Silver / X-Large 037592206206 03-759-22-06-20
