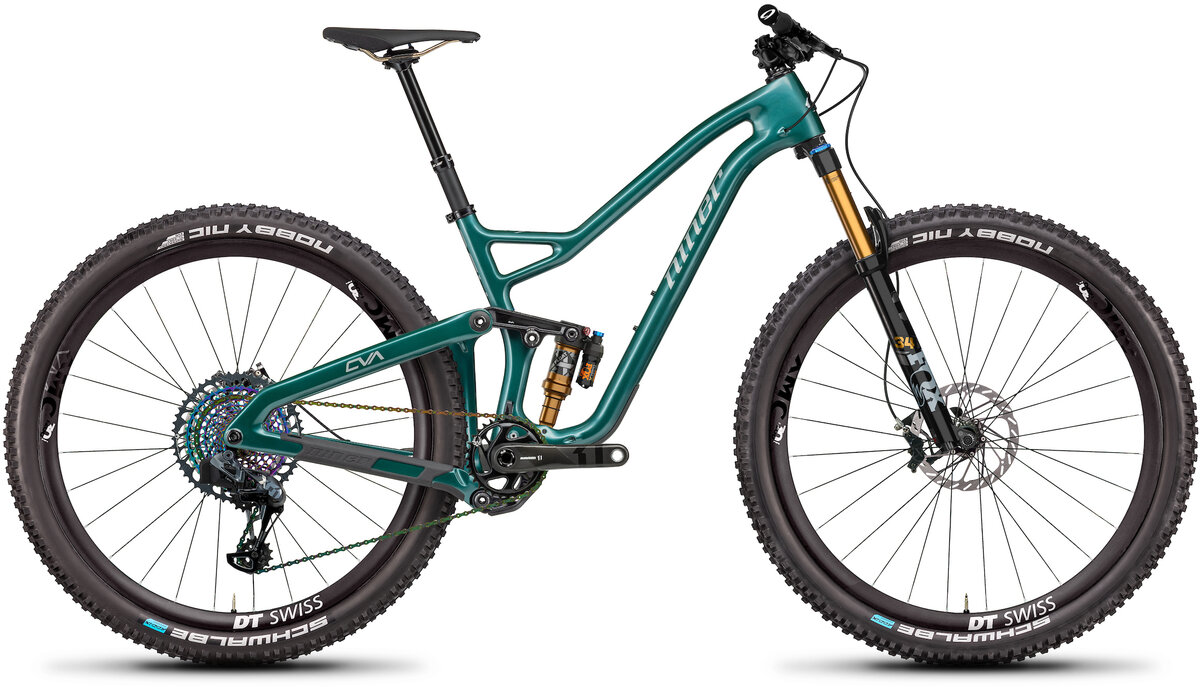

Niner JET 9 RDO 5-Star X01 AXS LTD

Niner JET 9 RDO 5-Star X01 AXS LTD
  • Color: Emerald Green
  • Color: Magnetic Grey
$10,199.00
Please select options
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Looking for a bike that ratchets up the fun factor but doesn't bite back when there's work to be done? Our playful JET 9 RDO is the ticket. With Niner's [R]evolution geometry and 120mm of suspension travel, you'll float up technical climbs, blast downhills, and fly smoothly over everything else.

bike frame with labeled dimensions

High Mode

Bike Sizes:
SMMDLGXL
A. Reach (mm) 425 450 475 500
B. Stack (mm) 599 613 626 640
C. Standover (mm) 688 698 727 778
D. Effective Top Tube (mm) 574 603 631 660
E. Head Tube Angle 66.5° 66.5° 66.5° 66.5°
F. Head Tube Length (mm) 95 110 125 140
G. Seat Tube Angle 76° 76° 76° 76°
H. Seat Tube Length (mm) 376 406 446 496
J. Bottom Bracket Drop (mm) 33 33 33 33
M. Wheelbase (mm) 1148 1179 1210 1241
N. Front to Center (mm) 726 748 775 806
O. Chainstay Length (mm) 430 430 430 430
Low Mode
Bike Sizes:
SMMDLGXL
A. Reach (mm) 419 444 469 494
B. Stack (mm) 603 617 631 645
C. Standover (mm) 681 705 734 771
D. Effective Top Tube (mm) 577 605 634 662
E. Head Tube Angle 66° 66° 66° 66°
F. Head Tube Length (mm) 95 110 125 140
G. Seat Tube Angle 75.5° 75.5° 75.5° 75.5°
H. Seat Tube Length (mm) 376 406 446 496
J. Bottom Bracket Drop (mm) 41 41 41 41
M. Wheelbase (mm) 1149 1180 1211 1242
N. Front to Center (mm) 726 748 776 807
O. Chainstay Length (mm) 432 432 432 432

Specs

Frame NINER RDO CARBON FIBER, CVA SUSPENSION, 120MM TRAVEL, ALUMINUM LINKAGE, ENDURO MAX PIVOT BEARINGS, FULL SLEEVE INTERNAL CABLE ROUTING
Fork FOX 34 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 130MM, 110X15MM, 44MM OFFSET
Rear Shock FOX FLOAT X FACTORY EVOL 2 POSITION W/ ADJUST, KASHIMA COAT
Rims DT Swiss XMC 1200 SPLINE, carbon clincher, 30mm internal
Hubs DT Swiss 180, Centerlock with Ratchet EXP 36
Spokes DT aero comp straight pull
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6
REAR: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.35
Bottom Bracket SRAM DUB BSA THREADED
Crankset SRAM X1 EAGLE CARBON DUB, 32T (S/M/L - 170MM, XL - 175MM)
Chainrings 32T
Shifters SRAM AXS EAGLE 12SP
Rear Derailleur SRAM X01 AXS EAGLE 12SP
Cassette/Freewheel SRAM EAGLE XG 1299, 10-52T RAINBOW
Chain SRAM XX1 EAGLE 12SP RAINBOW
Brakes SRAM G2 ULTIMATE
Brake Levers SRAM G2 ULTIMATE
Handlebars RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP
Tape/Grips NINER GRRRIPS L/O FLANGED SOFT COMPOUND
Stem RACE FACE TURBINE R 40MM, 35MM CLAMP
Headset NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seatpost KS LEV SI (XS/S-100MM, M/L/XL-150MM)
Saddle NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Emerald Green / Small 046692203701 04-669-22-03-70
Emerald Green / Medium 046692204708 04-669-22-04-70
Emerald Green / Large 046692205705 04-669-22-05-70
Emerald Green / X-Large 046692206702 04-669-22-06-70
Magnetic Grey / Small 046692203152 04-669-22-03-15
Magnetic Grey / Medium 046692204159 04-669-22-04-15
Magnetic Grey / Large 046692205156 04-669-22-05-15
Magnetic Grey / X-Large 046692206153 04-669-22-06-15
