Niner RIP 9 RDO 29 Frame Only

Niner RIP 9 RDO 29 Frame Only
  • Color: Military Green / Cement Grey
  • Color: Military Green / Cement Grey
  • Color: Military Green / Cement Grey
  • Color: Santa Fe Sand
  • Color: Santa Fe Sand
  • Color: Santa Fe Sand
This item may be picked up in-store or delivered to your door by VeloZoom; call for delivery availability.

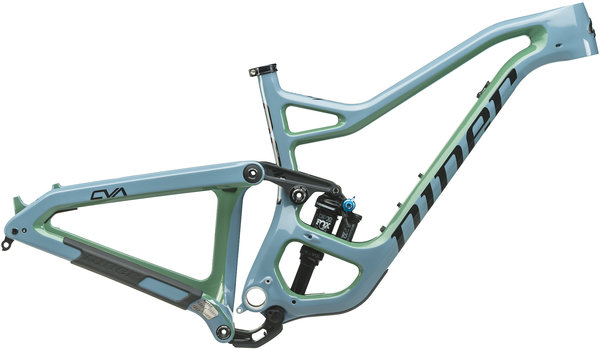

The new RIP 9 RDO sports 140mm of CVA suspension on a light, stiff, strong RDO carbon frame. Built for a 150mm travel fork up front, and with a 66-degree head tube angle and a 75.8-degree seat tube angle, we’re hitting the sweet spot of efficiency and capability. We also built in more standover clearance and a shorter seat tube to accommodate 170mm dropper posts.

Build it your way with the RIP 9 RDO frame-only option. RDO carbon fiber keeps the platform light and stiff, Full Sleeve internal cable routing makes it easy to build, and Boost hub spacing gives you freedom for all the wheel and tire options you could want.

- Rib Cage struts for stiffness
- Seatpost size 30.9mm (34.9mm seat collar)
- Fox Live Valve and Shimano Di2 compatible
- 73mm threaded BB; 1x single chainring only


Frame Niner RDO carbon fiber, 140mm travel, Geo Flip Chip, Rib Cage construction, full sleeve cable routing, Enduro Max Black Oxide pivot bearings
Headset 1.125" X 1.5" tapered zero stack headset included, 44mm upper, 56mm lower, Cane Creek description: ZS44/28.6 ZS56/40
Rear Shock FOX Float DPX2 Performance EVOL
Axles 148 x 12mm
Bottom Bracket 73mm threaded, sold separately
Fork Compatibility 150mm suspension
Wheel Compatibility 27.5-inch
Seat Post 30.9mm, sold separately

* Subject to change without notice.


Part Numbers

Option MPN
Military Green / Cement Grey / Small 02-809-19-03-72
Military Green / Cement Grey / Medium 02-809-19-04-72
Military Green / Cement Grey / Large 02-809-19-05-72
Santa Fe Sand / Small 02-809-19-06-72
Santa Fe Sand / Medium 02-809-19-03-65
Santa Fe Sand / Large 02-809-19-04-65
