Niner RLT 9 RDO 4-Star GRX 1x

Niner RLT 9 RDO 4-Star GRX 1x
  • Color: Avalanche Grey/Slate
$4,299.00
Please select options
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

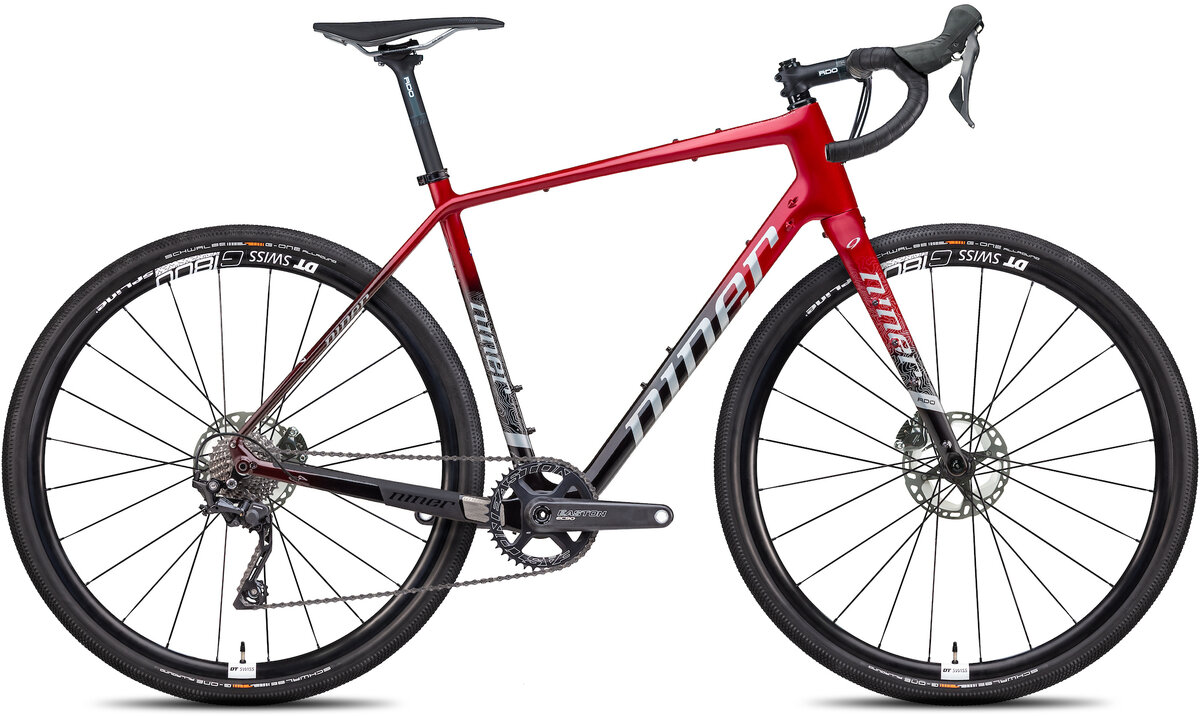

With our newest RLT 9 RDO, we built you a high end carbon gravel bike that you'll want to ride all the time, to any place. With 50c tire clearance, multiple fitments for accessories and cargo, plus slick frame features and a smooth ride, you can pedal it and be happy - anywhere and everywhere.

bike frame with labeled dimensions
Bike Sizes:
47cm50cm53cm56cm59cm62cm
A. Reach (mm) 362 366 374 384 398 405
B. Stack (mm) 535 556 577 592 613 634
C. Standover (mm) 693 731 754 780 804 827
D. Effective Top Tube (mm) 510 525 545 565 585 605
E. Head Tube Angle 70° 70.5° 71° 71.5° 72° 72.5°
F. Head Tube Length (mm) 105 125 145 165 185 205
G. Seat Tube Angle 74.5° 74° 73.5° 73° 73° 72.5°
H. Seat Tube Length (mm) 430 460 490 520 550 580
J. Bottom Bracket Drop (mm) 75 75 75 70 70 70
K. Fork Rake/Offset (mm) 45 45 45 45 45 45
M. Wheelbase (mm) 1000 1007 1017 1030 1045 1054
N. Front to Center (mm) 581 589 600 611 626 634
O. Chainstay Length (mm) 430 430 430 430 430 430

Specs

Frame NINER RDO CARBON FIBER: INTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; FLAT MOUNT; 12X142 THRU AXLE
Fork NINER RDO FULL CARBON; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; INTERNAL CABLE ROUTING; FLAT MOUNT; 12X100 THRU AXLE
Rims DT Swiss G 1800 SPLINE, 700c aluminum clincher
Hubs DT Swiss 370 Centerlock with 3-Pawl
Spokes DT Swiss aero comp wide straight pull
Axles Front: 12x100mm thru axle
Rear: 12x142mm thru axle
Tires SCHWALBE G-ONE ALLROUND EVO SUPER TERRAIN, TLE, ADDIX SPEEDGRIP, 700 X 45
Bottom Bracket EASTON PF30
Crankset EASTON EC90 CARBON 40T (47/50 - 170MM, 53/56 - 172.5MM, 59/62 - 175MM)
Chainrings 40T
Shifters SHIMANO GRX800 11SP
Rear Derailleur SHIMANO GRX800 GS 11SP SHADOW PLUS
Cassette/Freewheel SHIMANO XT M8000 11SP 11-42T
Chain SHIMANO HG 601 11SP
Brakes SHIMANO GRX800
Brake Levers SHIMANO GRX800
Handlebars EASTON EA50 AX (47/50- 420MM, 53/56- 440MM, 59/62- 460MM)
Tape/Grips NINER BAR TAPE
Stem NINER RDO STEM, NINER GRAPHIC (47/50- 80MM, 53/56- 90MM, 59/62- 100MM)
Headset NINER INTEGRATED SHIS DESCRIPTION IS42/28.6|IS52/40
Seatpost NINER RDO SEAT POST, 400MM, NINER GRAPHIC
Saddle NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Avalanche Grey/Slate / 47cm 008042247155 00-804-22-47-15
Avalanche Grey/Slate / 50cm 008042250155 00-804-22-50-15
Avalanche Grey/Slate / 53cm 008042253156 00-804-22-53-15
Avalanche Grey/Slate / 56cm 008042256157 00-804-22-56-15
Avalanche Grey/Slate / 59cm 008042259158 00-804-22-59-15
Avalanche Grey/Slate / 62cm 008042262158 00-804-22-62-15
Blood Red / 47cm 008042247407 00-804-22-47-40
Blood Red / 50cm 008042250407 00-804-22-50-40
Blood Red / 53cm 008042253408 00-804-22-53-40
Blood Red / 56cm 008042256409 00-804-22-56-40
Blood Red / 59cm 008042259400 00-804-22-59-40
Blood Red / 62cm 008042262400 00-804-22-62-40
