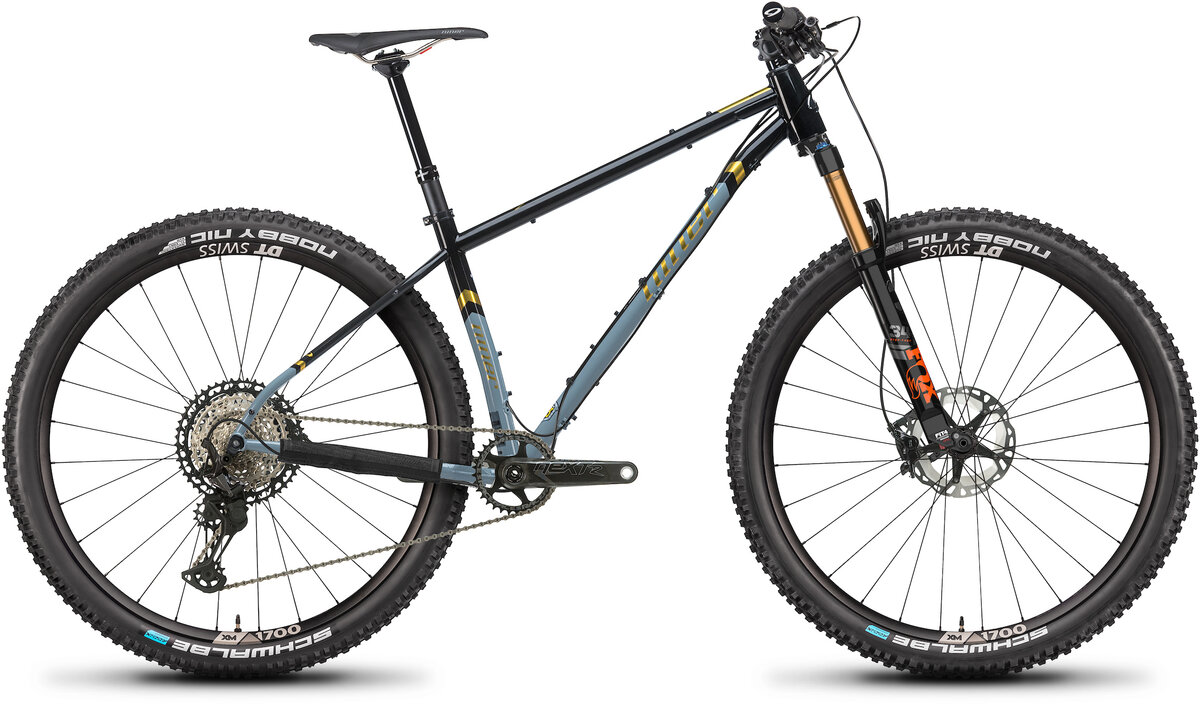

Niner SIR 9 4-Star XT
$5,049.00
Details
The SIR 9 is a comfortable, capable, hand-built bike made from proven, air-hardened, heat-treated Reynolds 853 steel. When you're spinning up the steeps, bombing down the backcountry and grinding out the final miles as the sun sinks into the horizon, you need a bike you can trust.
| SM | MD | LG | XL | ||
|---|---|---|---|---|---|
| A. Reach (mm) | 410 | 425 | 445 | 465 | |
| B. Stack (mm) | 611 | 620 | 634 | 652 | |
| C. Standover (mm) | 721 | 739 | 791 | 830 | |
| D. Effective Top Tube (mm) | 595 | 603 | 627 | 652 | |
| E. Head Tube Angle | 68° | 68° | 68° | 68° | |
| F. Head Tube Length (mm) | 100 | 110 | 125 | 145 | |
| G. Seat Tube Angle | 74° | 74° | 74° | 74° | |
| H. Seat Tube Length (mm) | 396 | 421 | 485 | 533 | |
| J. Bottom Bracket Drop (mm) | 52 | 52 | 52 | 52 | |
| M. Wheelbase (mm) | 1118 | 1136 | 1162 | 1189 | |
| N. Front to Center (mm) | 693 | 711 | 737 | 764 | |
| O. Chainstay Length (mm) | 427 | 427 | 427 | 427 |
Specs
| Frame | HAND WELDED AIR HARDENED REYNOLDS 853 STEEL; EXTERNAL CABLE ROUTING; INTEGRATED BOTTLE, BAG, RACK AND FENDER MOUNTS; 12X148 THRU AXLE |
|---|---|
| Fork | FOX 34 SC FLOAT FACTORY EVOL FIT4, 3 POSITION W/ ADJ, KASHIMA COAT, 120MM, 110X15MM, 44MM OFFSET |
| Rims | DT Swiss XM 1700 SPLINE, aluminum clincher, 30mm internal |
| Hubs | DT Swiss 350 Centerlock, Ratchet System 36 SL |
| Spokes | DT Competition straight pull |
| Axles |
Front: Boost 15x110mm thru axle Rear: Boost 12x148mm thru axle |
| Tires |
FRONT: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.6 REAR: SCHWALBE NOBBY NIC EVO SUPER TRAIL TLE ADDIX SPEEDGRIP 2.35 |
| Bottom Bracket | RACEFACE PF30 |
| Crankset | RACEFACE NEXT R CARBON 12SP, 32T (S/M/L - 170MM, XL - 175MM) |
| Chainrings | 32T |
| Shifters | SHIMANO XT M8100 12SP I-SPEC EV |
| Rear Derailleur | SHIMANO XT M8100 SGS 12SP |
| Cassette/Freewheel | SHIMANO XT M8100 12SP, 10-51T |
| Chain | SHIMANO XT M8100 W/ QUICKLINK |
| Brakes | SHIMANO XT M8100, METAL PAD W/ FIN |
| Brake Levers | SHIMANO XT M8100 |
| Handlebars | RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP |
| Tape/Grips | NINER GRRRIPS L/O SOFT COMPOUND |
| Stem | RACE FACE TURBINE R 40MM, 35MM CLAMP |
| Headset | NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40 |
| Seatpost | KS LEV SI (XS/S-100MM, M/L/XL-150MM) |
| Saddle | NINER CUSTOM WITH CRN-TI RAILS, EMBOSSED NINER GRAPHIC |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Cement/Black/Copper / Small | 031492203204 | 03-149-22-03-20 |
| Cement/Black/Copper / Medium | 031492204201 | 03-149-22-04-20 |
| Cement/Black/Copper / Large | 031492205208 | 03-149-22-05-20 |
| Cement/Black/Copper / X-Large | 031492206205 | 03-149-22-06-20 |
