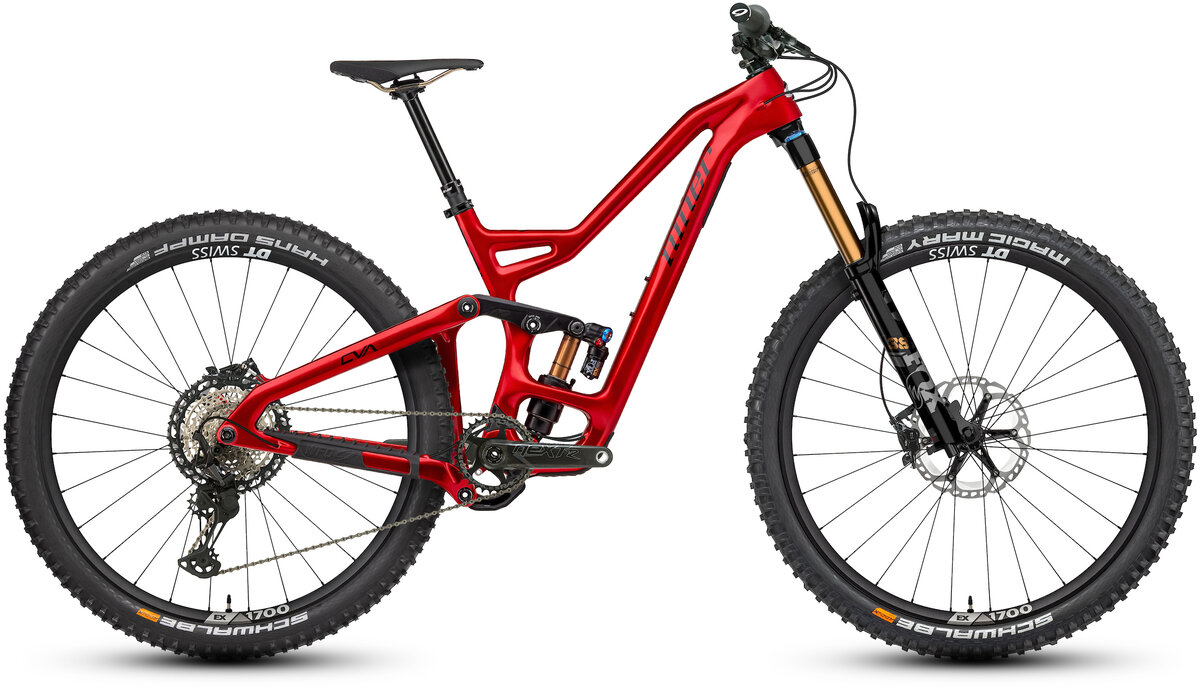

Niner WFO 9 RDO 4-Star XT

Niner WFO 9 RDO 4-Star XT
  • Color: Fade to Black
  • Color: Hot Tamale
$7,499.00
Please select options
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

With 170mm of stable CVA rear suspension, a 180mm travel fork, adjustable geometry, stout frame construction, and Niner's signature RDO carbon fiber construction, the WFO 9 RDO is an enduro-ready brawler for the gnarliest downhills, yet with the pedaling prowess to get you to the top in style.

bike frame with labeled dimensions

Low Mode

Bike Sizes:
SMMDLG
A. Reach (mm) 430 430 430
B. Stack (mm) 626 631 635
C. Standover (mm) 725 727 748
D. Effective Top Tube (mm) 575 597 627
E. Head Tube Angle
64° 64° 64°
F. Head Tube Length (mm)
90 95 100
G. Seat Tube Angle
77° 77° 77°
H. Seat Tube Length (mm) 390 419 462
J. Bottom Bracket Drop (mm) 28 28 28
M. Wheelbase (mm) 1205 1227 1259
N. Front to Center (mm) 771 794 826
O. Chainstay Length (mm) 433 433 433
High Mode
Bike Sizes:
SMMDLG
A. Reach (mm) 437 437 437
B. Stack (mm) 621 626 630
C. Standover (mm) 732 734 755
D. Effective Top Tube (mm) 573 595 625
E. Head Tube Angle 64.7° 64.7° 64.7°
F. Head Tube Length (mm) 90 95 100
G. Seat Tube Angle 77.7° 77.7° 77.7°
H. Seat Tube Length (mm) 390 419 462
J. Bottom Bracket Drop (mm) 19 19 19
M. Wheelbase (mm) 1203 1225 1257
N. Front to Center (mm) 770 793 825
O. Chainstay Length (mm) 433 433 433

Specs

Frame NINER RDO CARBON FIBER, 170MM TRAVEL, GEO FLIP CHIP, RIB CAGE CONSTRUCTION, FULL SLEEVE CABLE ROUTING, ENDURO MAX BLACK OXIDE PIVOT BEARINGS
Fork FOX 38 FLOAT FACTORY GRIP 2 EVOL, HSC, LSC, HSR, LSR, KASHIMA COAT, 180MM, 110X15MM, 44MM OFFSET
Rear Shock FOX FLOAT X2 FACTORY EVOL 2 POSITION, KASHIMA COAT
Rims DT Swiss EX 1700 SPLINE, aluminum clincher, 30mm internal, 110x15mm, centerlock
Hubs DT Swiss 350 Centerlock, Ratchet System 36 SL
Spokes DT Competition straight pull
Axles Front: Boost 15x110mm thru axle
Rear: Boost 12x148mm thru axle
Tires FRONT: SCHWALBE MAGIC MARY EVO SUPER TRAIL TLE ADDIX SOFT 2.6
REAR: SCHWALBE HANS DAMPF EVO SUPER TRAIL TLE ADDIX SOFT 2.6
Bottom Bracket RACEFACE BSA THREADED
Crankset RACEFACE NEXT R CARBON 12SP, 32T, 170MM
Chainrings 32T
Shifters SHIMANO XT M8100 12SP I-SPEC EV
Rear Derailleur SHIMANO XT M8100 SGS 12SP
Cassette/Freewheel SHIMANO XT M8100 12SP, 10-51T
Chain SHIMANO XT M8100 W/ QUICKLINK
Brakes SHIMANO XT M8120, METAL PAD W/ FIN
Brake Levers SHIMANO XT M8100
Handlebars RACE FACE NEXT R 800MM WIDE, 35MM RISE, 35MM CLAMP
Tape/Grips NINER GRRRIPS L/O FLANGED SOFT COMPOUND
Stem RACE FACE TURBINE R 40MM, 35MM CLAMP
Headset NINER INTERNAL ZS SHIS DESCRIPTION ZS44/28.6|ZS56/40
Seatpost KS LEV SI (S-125MM, M-150MM, L/XL-175MM)
Saddle NINER CUSTOM TR WITH CRN-TI RAILS, PRINTED NINER GRAPHIC

* Subject to change without notice.

Part Numbers

Option UPC MPN
Fade to Black / Small 042492203200 04-249-22-03-20
Fade to Black / Medium 042492204207 04-249-22-04-20
Fade to Black / Large 042492205204 04-249-22-05-20
Hot Tamale / Small 042492203408 04-249-22-03-40
Hot Tamale / Medium 042492204405 04-249-22-04-40
Hot Tamale / Large 042492205402 04-249-22-05-40
