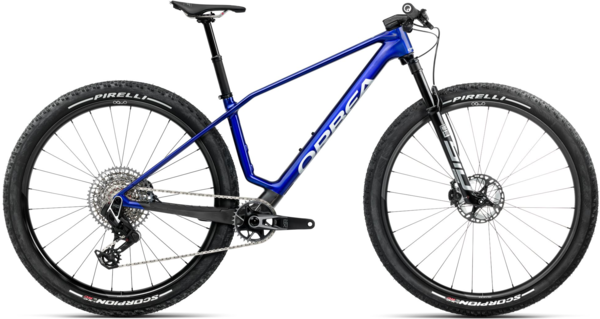

Orbea Alma M-Team AXS
Details
Pure Essence
Just you and the trail.
A pure connection.
Remember when riding was this simple?
With Alma, performance becomes an obsession you feel in your body and soul. No other bike gives you a purer connection to the trail. Feather-light. Lightning-quick. Packed with technology to let you take it further and faster.
Pure Feel - Less Fatigue
Alma's X-Fader Technology removes fatigue inducing vibrations.
Careful control of tube profiles and materials, matched to our X-Fader technology helps absorb the trail chatter which adds to fatigue on long rides.
Connected Hardtail Handling
Rider and trail, more connected than ever with Alma's adept handling.
No compromise geometry puts you in the position to connect with the trail. A perfect mix of nimble handling and capable descending with the added control of the 110mm fork.
Performance Made Simple
Packed with features that add performance and simplicity.
Focus on the trail and let us handle the details. Alma is full of features that help your ride flow.
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube (C-T) (mm) | 390 | 410 | 455 | 495 |
| Top Tube (EFF) (mm) | 564 | 594 | 620 | 648 |
| Head Tube (mm) | 100 | 100 | 105 | 115 |
| Chainstay (mm) | 425 | 425 | 425 | 425 |
| BB Drop (mm) | 65 | 65 | 65 | 65 |
| BB Height (mm) | 315 | 315 | 315 | 315 |
| Wheelbase (mm) | 1113 | 1143 | 1170 | 1190 |
| Head Angle | 67° | 67° | 67° | 67° |
| Seat Angle | 75,5° | 75,5° | 75,5° | 75,5° |
| Rake (mm) | 44 | 44 | 44 | 44 |
| Standover (mm) | 794 | 797 | 811,6 | 829,4 |
| Reach (mm) | 405 | 435 | 460 | 485 |
| Stack (mm) | 618,5 | 618,5 | 623,1 | 632,3 |
| Fork Length (mm) | 520 | 520 | 520 | 520 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| Small | 155 - 170 | 61.1" - 66.9" |
| Medium | 165 - 180 | 65.0" - 70.9" |
| Large | 178 - 190 | 70.1" - 74.8" |
| X-Large | 185 - 198 | 72.8" - 78.0" |
Specs
| Frame | Orbea Alma Carbon, Boost 12x148, Internal cable routing. |
|---|---|
| Fork | RockShox SID SL Ultimate 110 DebonAir+ RL 3-Position 15X110 |
| Wheels | Oquo Mountain Performance MP30TEAM |
| Tires | Pirelli Scorpion XC RC 2.40" 120TPI ProWall/TLR |
| Crankset | SRAM X0 Eagle Dub Black 34t |
| Shifters | SRAM AXS Pod |
| Rear Derailleur | SRAM X0 Eagle AXS |
| Cassette/Freewheel | SRAM GX-1275 Eagle 10-52t 12-Speed |
| Chain | SRAM GX Eagle 12-Speed |
| Brakes | SRAM Motive Silver A2 4 piston Hydraulic Disc |
| Tape/Grips | Ergon GXR |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Seatpost | OC Mountain Performance DP-MP10, 31.6mm, Dropper |
| Saddle | Prologo Nago R4 Tirox rails size 137mm |
| Pedals | Sold separately |
| Accessories & Extras |
OC Squidlock MP11, Suspension + Dropper SH-MP10 specific computer mount |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Cobalt Blue (Gloss) - Carbon Raw (Matt) / Small / 29-inch | 08434446817854 | S22103F8 |
| Cobalt Blue (Gloss) - Carbon Raw (Matt) / Medium / 29-inch | 08434446817939 | S22105F8 |
| Cobalt Blue (Gloss) - Carbon Raw (Matt) / Large / 29-inch | 08434446818011 | S22107F8 |
| Cobalt Blue (Gloss) - Carbon Raw (Matt) / X-Large / 29-inch | 08434446818097 | S22109F8 |
| Diamond Carbon View (matt) / Small / 29-inch | 08434446909658 | S22103FB |
| Diamond Carbon View (matt) / Medium / 29-inch | 08434446909665 | S22105FB |
| Diamond Carbon View (matt) / Large / 29-inch | 08434446909672 | S22107FB |
| Diamond Carbon View (matt) / X-Large / 29-inch | 08434446909689 | S22109FB |
| Mars Red (Matt) - Metallic Burgundy Red (Gloss) / Small / 29-inch | 08434446817878 | S22103F9 |
| Mars Red (Matt) - Metallic Burgundy Red (Gloss) / Medium / 29-inch | 08434446817953 | S22105F9 |
| Mars Red (Matt) - Metallic Burgundy Red (Gloss) / Large / 29-inch | 08434446818035 | S22107F9 |
| Mars Red (Matt) - Metallic Burgundy Red (Gloss) / X-Large / 29-inch | 08434446818110 | S22109F9 |
| Seaweed Carbon View (Matt-Gloss) / Small / 29-inch | 08434446817892 | S22103FA |
| Seaweed Carbon View (Matt-Gloss) / Medium / 29-inch | 08434446817977 | S22105FA |
| Seaweed Carbon View (Matt-Gloss) / Large / 29-inch | 08434446818059 | S22107FA |
| Seaweed Carbon View (Matt-Gloss) / X-Large / 29-inch | 08434446818134 | S22109FA |
