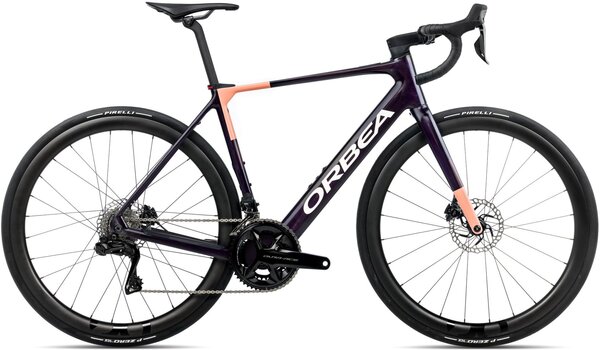

Orbea Gain M10I

Orbea Gain M10I
  • Color: Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt)
  • Color: Halo Silver (Matt) - Blue Carbon View (Gloss)
$9,999.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Joyful Performance

Rider and bike working in perfect synergy, you're breathing hard and your heart is pumping but you are in control and having fun.

Enough power to turn gravity down a bit without dominating the ride. Gain's natural assistance blends invisibly into the background, so you feel fitter than ever. This isn't about riding faster; it isn't even about riding further, this is just about having more fun each and every time you ride.

Natural Performance
- Natural pedaling means silent and unobtrusive assistance at lower speeds and no added friction, leaving you free to pedal as normal at higher speeds.

Natural Handling
- Natural handling means tuning geometry and rigidity to optimize performance. In this respect, Gain is just like any great road bike.

Lightest In Class
- No other e-road bike with this battery capacity offers a lighter weight.

Stiffness.
Responsive Performance.
- There is no doubt about it, a frame that is stiff in the right places is key for performance.

Pure Road Geometry
- One of the most important points to consider when determining geometry is that the bike must be easy to ride, meaning you have precise control over the bike.

Sizes:
MeasurementXSSMLXLXXL
Seat Tube (C-T) 430 460 490 515 540 570
Top Tube (EFF) 516 535 555 569 587 602
Head Tube 113 136 158 181 203 225
Chainstay 415 415 415 415 415 415
BB Drop 78 78 78 76 76 76
BB Height 263 263 263 265 265 265
Wheelbase 984 998 1011 1022 1035 1047
Head Angle 71° 71.2° 71.5° 72° 72.2° 72.5°
Seat Angle 74.5° 74° 73.5° 73.5° 73.2° 73.2°
Rake 50 50 50 50 50 50
Standover 728 756 782 803 830 844
Reach 370 378 386 394 402 410
Stack 525 547 569 591 613 635
Fork Length 380 380 380 380 380 380
Sizes:
SizeHeight
XS 61.1"-65.4"
S 65.7"-67.7"
M 68.1"-70.5"
L 70.9"-72.8"
XL 73.2"-75.2"
XXL 75.6"-81.5"

Specs

Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Fork Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Wheels Carbon 42, Tubeless, 21c
Hubs Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite, Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Tires Pirelli P ZERO™ Race SmartEVO TLR 700x30c
Crankset Shimano Dura-Ace R9200 34x50t
Shifters Shimano R9270
Front Derailleur Shimano Dura-Ace Di2 R9250
Rear Derailleur Shimano Dura-Ace Di2 R9250
Cassette/Freewheel Shimano Dura-Ace R9200 11-30t 12-Speed
Chain Shimano CN-9100
Brakes Shimano R9270 Hydraulic Disc
Handlebars OC Road Performance RP10-R Carbon, Rise 15, Reach 70, Drop 125
Stem OC Road Performance RP10, -8º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Performance XP10-S Carbon, 27.2mm, Setback 20
Saddle Fizik Vento Antares R1 Carbon Rail 140mm
Accessories & Extras Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
Motor Mahle motor hub X20, ALC
Battery Mahle iX350 36V 353Wh
Controller/Display Mahle Pulsar One monochrome ANT+ LEV
Charger Mahle Active Charger up to 4A

* Subject to change without notice.

Part Numbers

Option UPC MPN
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / X-Small / 700c 08434446830358 S61002GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / Small / 700c 08434446830389 S61003GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / Medium / 700c 08434446830419 S61005GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / Large / 700c 08434446830440 S61007GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / X-Large / 700c 08434446830471 S61009GM
Fantasy Purple Carbon View (Gloss) - Orange Cloud (Matt) / XX-Large / 700c 08434446830501 S61010GM
Halo Silver (Matt) - Blue Carbon View (Gloss) / X-Small / 700c 08434446830365 S61002GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / Small / 700c 08434446830396 S61003GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / Medium / 700c 08434446830426 S61005GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / Large / 700c 08434446830457 S61007GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / X-Large / 700c 08434446830488 S61009GN
Halo Silver (Matt) - Blue Carbon View (Gloss) / XX-Large / 700c 08434446830518 S61010GN
