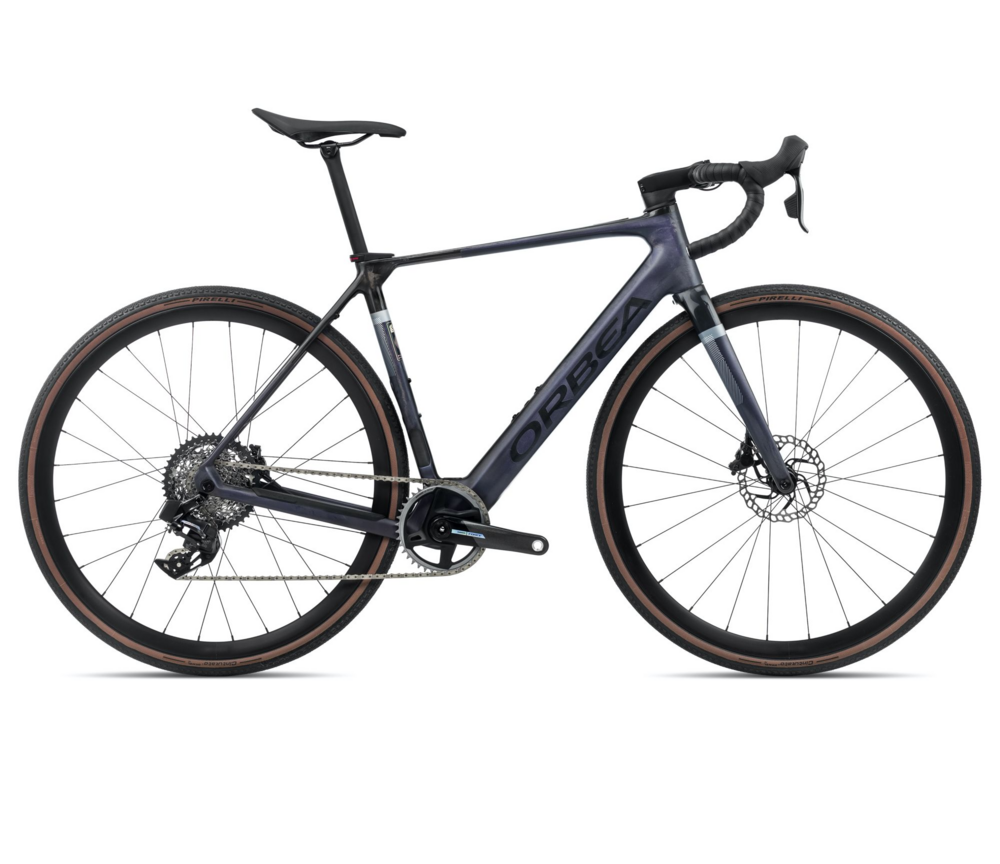

Orbea Gain M21E 1x

Orbea Gain M21E 1x
  • Color: Tanzanite Carbon View - Carbon Raw
  • Color: White Chic - Metallic Green Artichoke
$7,699.00
Color: Tanzanite Carbon View - Carbon Raw
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

THE MANY FACES OF JOY

Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. This isn't about riding faster, it isn't even about riding further, this is just about having more fun each and every time you ride.

THE PHILOSOPHY OF GAIN
Enough Power is a concept that is central to our vision of e-road. A completely integrated system that brings together power, range and interface to deliver a natural ride with nearly silent, unobtrusive assistance.

GAIN IS A BIKE
Natural handling means tuning geometry and rigidity to optimize performance. In this respect, Gain is just like any great road bike. Natural pedaling means silent and unobtrusive assistance at lower speeds and no added friction, leaving you free to pedal as normal at higher speeds.

NATURAL PEDALLING
On the climbs, our tuned motors offer enough power to turn gravity down a bit. On flatter roads, when the speeds climb past 25kmph*, GAIN's frictionless, silent pedaling and great power transmission makes it hard to tell this is not a normal bike.
* 20mph in USA

NATURAL HANDLING
On the descents, the combination of Gain's Dynamic Structure and great weight distribution results in confident, fun handling.

NO EXCUSES
It has never been easier to grab your bike and head out the door. Gain´s huge range means you can pretty much forget about battery limitations, and the top tube command center puts all the information you need right at your fingertips.

ENJOY EVERY RIDE
Many people claim that their e-bikes look like bikes, but we go further than that, Gain is a bike, just one that adds an extra smile to every mile.

DESIGNED FOR THE ROAD. CAPABLE ON GRAVEL.
The fun doesn't have to stop where the asphalt ends.

THE FUN IS ENDLESS
The biggest battery on the market, combined with our 1.5 factor, gives more range than ever. This is useful because you will be having so much fun, thanks to GAIN's intuitive handling and natural pedaling that you might well just forget to stop.

Geometry
Sizes:
XSSMLXLXXL
1 - SEAT TUBE (C-T) 430 460 490 515 540 570
2 - TOP TUBE (EFF) 516 535 555 569 587 602
3 - HEAD TUBE 113 136 158 181 203 225
4 - CHAINSTAY 415 415 415 415 415 415
5 - BB HEIGHT 263 263 263 265 265 265
6 - BB DROP 78 78 78 76 76 76
7 - WHEELBASE 984 998 1011 1022 1035 1047
8 - HEAD ANGLE 71º 71.2º 71.5º 72º 72.2º 72.5º
9 - SEAT ANGLE 74.5º 74º 73.5º 73.5º 73.2º 73.2º
10 - STANDOVER 728 756 782 803 830 844
11 - REACH 370 378 386 394 402 410
12 - STACK 525 547 569 591 613 635
13 - FORK LENGTH 380 380 380 380 380 380
14 - RAKE 50 50 50 50 50 50
15 - WHEEL SIZE 64.5 63.3 61.4 58 57 55
Sizes:
FRAME SIZERIDER HEIGHT (cm)RIDER HEIGHT (in)
X-SMALL155-166 61.1"-65.4"
SMALL167-172 65.7"-67.7"
MEDIUM173-179 68.1"-70.5"
LARGE180-185 70.9"-72.8"
X-LARGE186-191 73.2"-75.2"
XX-LARGE192-207 75.6"-81.5"

Specs

Pedals Sold Separately
Fork Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
Frame Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.
Tires Pirelli Cinturato™ Gravel H 700x35c TLR
Brakes SRAM Force AXS
Saddle Fizik Aliante R5
Wheels Alloy, Tubeless, 700c, 21c
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset SRAM Force Dub Wide 40t
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Shifters SRAM Force AXS
Rear Derailleur SRAM Force XPLR AXS 12s
Motor Mahle motor hub X20, ALC
Battery Mahle iX350 36V 353Wh
Charger Mahle Active Charger up to 4A
Controller/Display Mahle Pulsar One monochrome ANT+ LEV
Stem OC Road Performance RP10, -8º
Chain SRAM Force 12-Speed
Handlebars OC Gravel GR31, Reach 70, Drop 110
Tape/Grips Orbea Anti-Slippery/Shock Proof
Accessories & Extras Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
Cassette/Freewheel SRAM XG-1271 XPLR 10-44t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Tanzanite Carbon View - Carbon Raw / X-Small / 29-inch 8434446520549 R62402DB
Tanzanite Carbon View - Carbon Raw / Small / 29-inch 8434446520570 R62403DB
Tanzanite Carbon View - Carbon Raw / Medium / 29-inch 8434446520600 R62405DB
Tanzanite Carbon View - Carbon Raw / Large / 29-inch 8434446520648 R62407DB
Tanzanite Carbon View - Carbon Raw / X-Large / 29-inch 8434446520709 R62409DB
Tanzanite Carbon View - Carbon Raw / XX-Large / 29-inch 8434446520761 R62410DB
White Chic - Metallic Green Artichoke / X-Small / 29-inch 8434446520532 R62402D4
White Chic - Metallic Green Artichoke / Small / 29-inch 8434446520563 R62403D4
White Chic - Metallic Green Artichoke / Medium / 29-inch 8434446520594 R62405D4
White Chic - Metallic Green Artichoke / Large / 29-inch 8434446520624 R62407D4
White Chic - Metallic Green Artichoke / X-Large / 29-inch 8434446520686 R62409D4
White Chic - Metallic Green Artichoke / XX-Large / 29-inch 8434446520747 R62410D4
