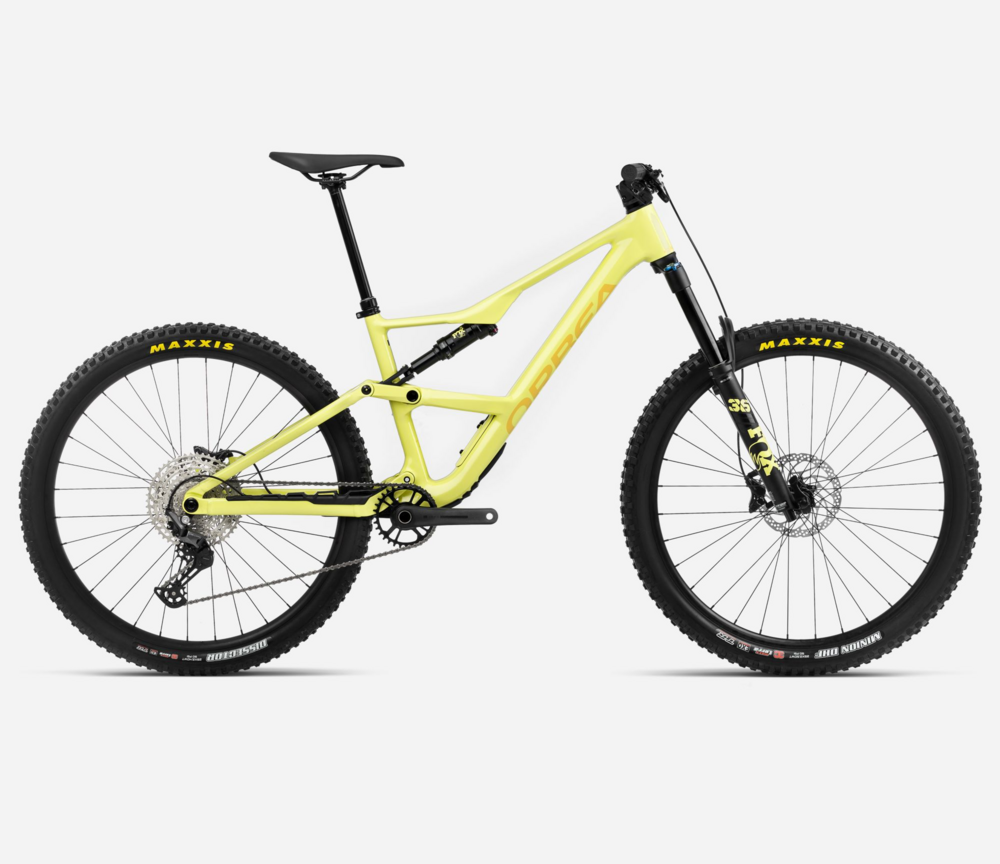

Orbea Occam LT H30

Orbea Occam LT H30
  • Color: Spicy Lime-Corn Yellow
  • Color: Metallic Olive Green-Titanium Black
  • Color: Slate Blue-Orange Cloud
$3,599.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Make the mountain your playground. Your bike should match your vision of the ride, adapting to whatever adventure your trail takes you on. Occam LT is the voice in your head telling you that you can push harder, stay off the brakes, and take it that bit further.

Second Skin
Occam is ready for a tough life and the replaceable vinyl protection brings new styling options as well as keeping the paintwork looking like new for longer.

Quick Flip Adjust
In less than 15 seconds, you can choose between the high and low positions, giving a change of 8mm in the bottom bracket height and 0.5 degrees in the headtube.

Easy Cable Routing
Cables are fully guided from the rear to LOCKR and from there it is easy t headtube if you ever have to replace a cable outer.

Sizes:
S-HighS-LowM-HighM-LowL-HighL-LowXL-HighXL-Low
Seat Tube (C-T)405 405415415430430460460
Top Tube (EFF)571 572597598624625651653
Head Tube95 95100100110110120120
Chainstay440 440440440440440440440
BB Height350 342350342350342350342
BB Drop28 36283628362936
Wheelbase1199 1200122612271255125712851286
Head Angle64.5 6464.56464.56464.564
Reach435 430460455485480510505
Stack616 621621625630635639644
Fork Length575 575575575575575575575
Rake44 44444444444444
Seatpost Insertion Min 410 410420420435435460460
Sizes:
Size SMLXL
Rider Height (CM)150 - 165 160 - 175170 - 185180 - 198
Rider Height (IN)59.1" - 65.0" 63.0" - 68.9"66.9" - 72.8"70.9" - 78.0"

Specs

Fork Fox 36 Float Performance 160 Grip 3-Position QR15x110
Frame Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool
Tires Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR
Brakes Shimano MT420 Hydraulic Disc
Saddle Selle Royal 2058 DRN
Wheels Alloy, Tubeless, 29", 29c, 32H
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Forged alloy, 32t
Seatpost OC Mountain Control MC21, 31.6mm, Dropper
Shifters Shimano Deore M6100 I-Spec EV
Rear Derailleur Shimano Deore M6100 SGS Shadow Plus

* Subject to change without notice.

Part Numbers

Option UPC MPN
Metallic Olive Green-Titanium Black / Medium / 29-inch 8434446642838 R25505P1
Spicy Lime-Corn Yellow / X-Large / 29-inch 8434446642906 R25509P2
Spicy Lime-Corn Yellow / Large / 29-inch 8434446642876 R25507P2
Metallic Olive Green-Titanium Black / Small / 29-inch 8434446642807 R25503P1
Slate Blue-Orange Cloud / Large / 29-inch 8434446642883 R25507P3
Spicy Lime-Corn Yellow / Medium / 29-inch 8434446642845 R25505P2
Slate Blue-Orange Cloud / X-Large / 29-inch 8434446642913 R25509P3
Metallic Olive Green-Titanium Black / Large / 29-inch 8434446642869 R25507P1
Spicy Lime-Corn Yellow / Small / 29-inch 8434446642814 R25503P2
Metallic Olive Green-Titanium Black / X-Large / 29-inch 8434446642890 R25509P1
Slate Blue-Orange Cloud / Medium / 29-inch 8434446642852 R25505P3
Slate Blue-Orange Cloud / Small / 29-inch 8434446642821 R25503P3
