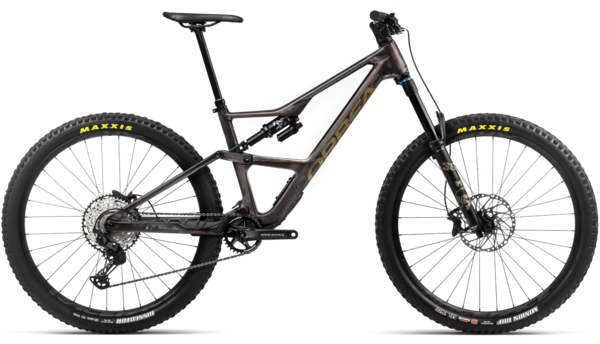

Orbea Occam LT M30

Orbea Occam LT M30
  • Color: Cosmic Carbon View - Metallic Olive Green
  • Color: Cosmic Carbon View - Metallic Olive Green
  • Color: Green Gold - Corn Yellow
  • Color: Green Gold - Corn Yellow
$4,999.00
Color: Cosmic Carbon View - Metallic Olive Green
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

MAKE THE MOUNTAIN YOUR PLAYGROUND
Your bike should match your vision of the ride, adapting to whatever adventure your trail takes you on. Occam LT is the voice in your head telling you that you can push harder, stay off the brakes, and take it that bit further.

Adventures can take you anywhere, and Occam LT is ready. Seriously light and tough with aggressive geometry, this is a bike for pushing your limits and enjoying yourself. Even on the rowdiest trails, the progressive suspension is smooth and supportive, and works perfectly with coil shocks. Our improved Steep and Deep design is deeper than ever, with full insertion for a 230mm dropper on all frames.

Quick Flip Adjust
In less than 15 seconds, you can choose between high and low positions, giving a change of 8mm in the bottom bracket height and 0.5 degrees in the headtube.

Stealthy and Protective
Cables are fully guided from the rear LOCKR and from there it is easy to reach the headtube if you ever have to replace a cable outer

Second Skin
Occam is ready for a tough life and the replaceable vinyl protection brings options as well as keeping the paintwork looking like new for longer.

Sizes:
S-HighS-LowM-HighM-LowL-HighL-LowXL-HighXL-Low
Seat Tube (C-T)405 405415415430430460460
Top Tube (EFF)571 572597598624625651653
Head Tube95 95100100110110120120
Chainstay440 440440440440440440440
BB Height350 342350342350342350342
BB Drop28 36283628362936
Wheelbase1199 1200122612271255125712851286
Head Angle64.5 6464.56464.56464.564
Reach435 430460455485480510505
Stack616 621621625630635639644
Fork Length575 575575575575575575575
Rake44 44444444444444
Seatpost Insertion Min 410 410420420435435460460
Sizes:
Size SMLXL
Rider Height (CM)150 - 165 160 - 175170 - 185180 - 198
Rider Height (IN)59.1" - 65.0" 63.0" - 68.9"66.9" - 72.8"70.9" - 78.0"

Specs

Fork Fox 36 Float Performance 160 Grip 3-Position QR15x110
Frame Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Tires Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR
Brakes Shimano M6120 Hydraulic Disc
Saddle ERGON SM Enduro
Wheels Race Face AR 30c Tubeless Ready
Headset Alloy 1-1/2", Black Oxidated Bearing
Crankset Race Face Aeffect 32t
Seatpost OC Mountain Control MC21, 31.6mm, Dropper
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano XT M8100 SGS Shadow Plus
Rims Race Face AR 30c Tubeless Ready
Stem OC Mountain Control MC20, 0ยบ
Chain Shimano M6100
Handlebars OC Mountain Control MC30, Rise20, Width 800
Rear Shock Fox FLOAT X Performance 2-Position Evol LV custom tune 210x55mm
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cosmic Carbon View - Metallic Olive Green / Small / 29-inch 8434446519970 R26303P5
Cosmic Carbon View - Metallic Olive Green / Medium / 29-inch 8434446520037 R26305P5
Cosmic Carbon View - Metallic Olive Green / Large / 29-inch 8434446520068 R26307P5
Cosmic Carbon View - Metallic Olive Green / X-Large / 29-inch 8434446520099 R26309P5
Green Gold - Corn Yellow / Small / 29-inch 8434446519956 R26303P4
Green Gold - Corn Yellow / Medium / 29-inch 8434446520013 R26305P4
Green Gold - Corn Yellow / Large / 29-inch 8434446520051 R26307P4
Green Gold - Corn Yellow / X-Large / 29-inch 8434446520082 R26309P4
