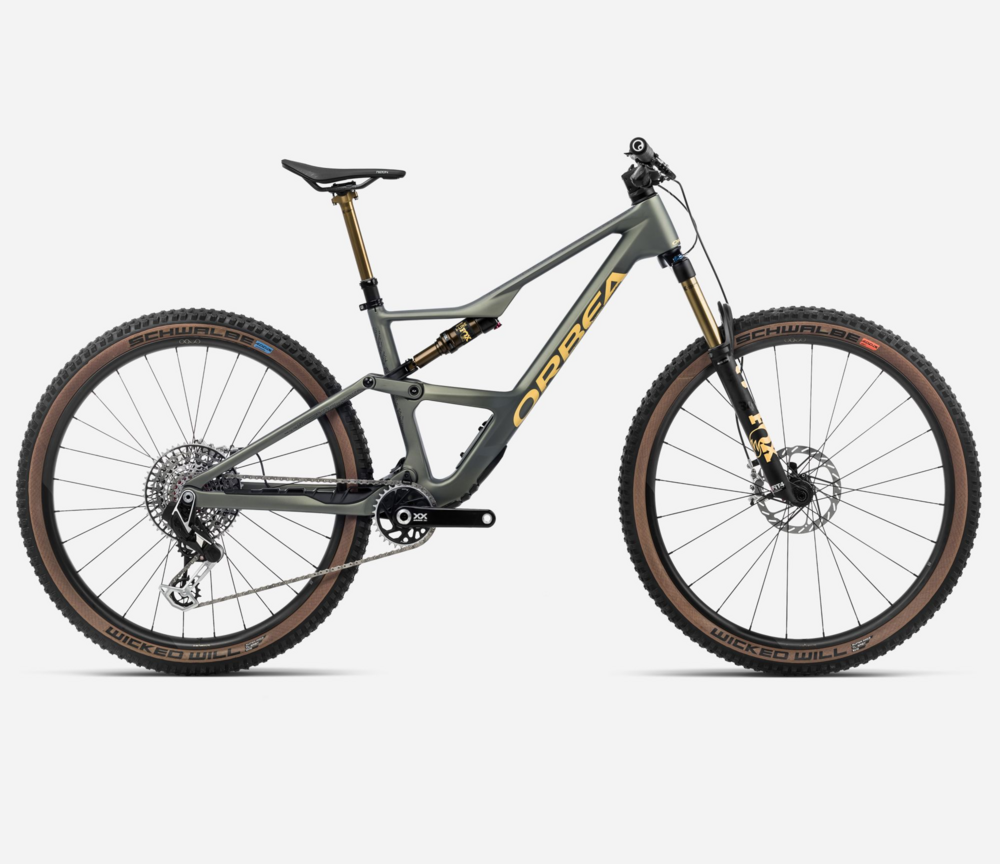

Orbea Occam SL M-LTD
Details
The essence of adventure. Your bike should match your vision of the ride, adapting to whatever adventure your trail takes you on. Occam SL opens up big mountain adventures and long distances. Light and efficient, the fast trail geometry and efficient suspension bring control and flow to your adventure.
Lock On The Go
Remote lockout comes to trail bikes with Occam SL. Locking and unlocking the suspension quickly becomes second nature and once you have tried it you won't want to live without it.
Stealthy and Productive
Cables are fully guided from the rear LOCKR and from there it is easy to reach the headtube if you ever have to replace a cable outer.
Carbon Shock Extender
The carbon shock extender maximizes rigidity and minimizes weight. It is this which means that Occam SL is so light but also handles and pedals.
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube | 405 | 415 | 430 | 460 |
| Top Tube | 570 | 596 | 622 | 649 |
| Head Tube | 95 | 100 | 110 | 120 |
| Chainstay | 440 | 440 | 440 | 440 |
| BB Height | 341 | 341 | 341 | 341 |
| BB Drop | 37 | 37 | 37 | 37 |
| Wheelbase | 1191 | 1218 | 1245 | 1276 |
| Head Angle | 65.5 | 65.5 | 65.5 | 65.5 |
| Seat Angle | 78 | 78 | 78 | 78 |
| Reach | 440 | 465 | 490 | 515 |
| Stack | 611 | 615 | 624 | 633 |
| Fork Length | 554 | 554 | 554 | 554 |
| Rake | 44 | 44 | 44 | 44 |
| Seatpost Insertion Min | 410 | 420 | 435 | 460 |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height (CM) | 150 - 170 | 160 - 180 | 170 - 190 | 180 - 200 |
| Rider Height (IN) | 59.1" - 66.9" | 63.0" - 70.9" | 66.9" - 74.8" | 70.9" - 78.7" |
Specs
| Fork | Fox 34 Float Factory 140 FIT4 Remote-Adjust Push-lock 2-Position QR15x110 Kashima |
|---|---|
| Frame | Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels |
| Tires | Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Soft Compound, Addix, Brown |
| Brakes | SRAM Level Ultimate 4 piston Stealth Hydraulic Disc |
| Saddle | Fizik Terra Ridon X1 145mm |
| Wheels | Oquo Mountain Performance MP30LTD, carbon hookless rim, DT240 S CL hub, Sram XD MTB freehub, 30mm internal width, Sapim CX-Ray TCS spokes, 29" |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Crankset | SRAM XX Eagle Dub Black 32t |
| Seatpost | Fox Transfer SL Factory Kashima Dropper 31.6 |
| Shifters | SRAM AXS Pod Ultimate |
| Rear Derailleur | SRAM XX Eagle AXS |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Green Gold - Corn Yellow / Medium / 29-inch | 8434446520860 | R26805P4 |
| Cosmic Carbon View - Metallic Olive Green / Small / 29-inch | 8434446520846 | R26803P5 |
| Cosmic Carbon View - Metallic Olive Green / X-Large / 29-inch | 8434446520938 | R26809P5 |
| Cosmic Carbon View - Metallic Olive Green / Medium / 29-inch | 8434446520877 | R26805P5 |
| Cosmic Carbon View - Metallic Olive Green / Large / 29-inch | 8434446520907 | R26807P5 |
| Green Gold - Corn Yellow / Small / 29-inch | 8434446520839 | R26803P4 |
| Green Gold - Corn Yellow / Large / 29-inch | 8434446520891 | R26807P4 |
| Green Gold - Corn Yellow / X-Large / 29-inch | 8434446520921 | R26809P4 |
