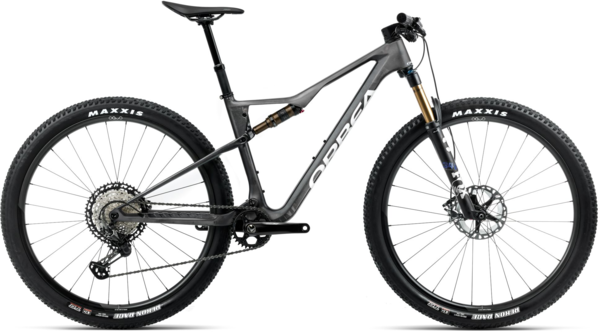

Orbea Oiz M10 XTR

Orbea Oiz M10 XTR
  • Color: Diamond Carbon View (Matt-Gloss)
  • Color: Ivory White (Gloss) - Bumblebee Yellow (Matt)
  • Color: Seaweed Carbon View (Gloss) - Spaceship Green (Matt)
$7,999.00
Color:
Size: Select size
Wheel Size: 29-Inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

BUILT TO FLY

Are you ready for takeoff? Race every climb and take each corner faster.

Get ready for the ride of your life. Oiz is an uncompromised race machine that looks as good as it rides. Modern geometry, advanced construction, and efficient suspension mean more grip, and better control, inspiring you to attack on every climb and get right off the brakes on today’s most challenging tracks.

Feather-Light, Race Ready
Because, on the race course, every gram counts.

Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there.

Simply the fastest, up and down
120mm of Race Tuned Suspension and modern geometry.

Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.

Every watt counts
You can’t see the frame stiffness, but you feel the power transfer every time you push the pedals.

For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff. However it is possible to have a frame which is too stiff to track the terrain efficiently.


Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube (C-T) (mm) 405 432 460 510
Top Tube (EFF) (mm) 575 598 623 650
Head Tube (mm) 90 90 100 115
Chainstay (mm) 432 432 432 432
BB Drop (mm) 42 42 42 42
BB Height (mm) 333 333 333 333
Wheelbase (mm) 1138 1163 1189 1219
Head Angle 67º 67º 67º 67º
Seat Angle 76.5º 76.5º 76.5º 76.5º
Rake (mm) 44 44 44 44
Standover (mm) 731 741 741 750
Reach (mm) 425 450 472 496
Stack (mm) 596 596 606 619
Fork Length (mm) 531 531 531 531
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 155 - 170 61.1" - 66.9"
Medium 165 - 180 65.0" - 70.9"
Large 178 - 190 70.1" - 74.8"
X-Large 185 - 198 72.8" - 78.0"

Specs

Frame Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Fork Fox 34 Float SC Factory 120 Grip SL Remote-Adj Push to Lock QR15x110 Kashima
Rear Shock Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm
Wheels Oquo Mountain Performance MP30TEAM
Tires Maxxis Rekon Race 2.40" WT 120 TPI Exo TLR
Crankset Shimano XT M8120 32t
Shifters Shimano XTR M9100
Rear Derailleur Shimano XTR M9100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M8100 10-51t 12-Speed
Chain Shimano M7100
Brakes Shimano XTR M9100 Hydraulic Disc
Handlebars OC Mountain Performance MP10 Carbon, Width 760
Tape/Grips OC Lock On
Stem OC Mountain Performance MP21, -6º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Fizik Vento Argo X5 Alluminium 140mm
Pedals Sold separately
Accessories & Extras OC Squidlock MP11, Suspension + Dropper

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Diamond Carbon View (Matt-Gloss) / Small / 29-Inch 08434446885020 S23903KV
Diamond Carbon View (Matt-Gloss) / Medium / 29-Inch 08434446885051 S23905KV
Diamond Carbon View (Matt-Gloss) / Large / 29-Inch 08434446885082 S23907KV
Diamond Carbon View (Matt-Gloss) / X-Large / 29-Inch 08434446885112 S23909KV
Ivory White (Gloss) - Bumblebee Yellow (Matt) / Small / 29-Inch 08434446885006 S23903KR
Ivory White (Gloss) - Bumblebee Yellow (Matt) / Medium / 29-Inch 08434446885037 S23905KR
Ivory White (Gloss) - Bumblebee Yellow (Matt) / Large / 29-Inch 08434446885068 S23907KR
Ivory White (Gloss) - Bumblebee Yellow (Matt) / X-Large / 29-Inch 08434446885099 S23909KR
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / Small / 29-Inch 08434446885013 S23903KS
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / Medium / 29-Inch 08434446885044 S23905KS
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / Large / 29-Inch 08434446885075 S23907KS
Seaweed Carbon View (Gloss) - Spaceship Green (Matt) / X-Large / 29-Inch 08434446885105 S23909KS
