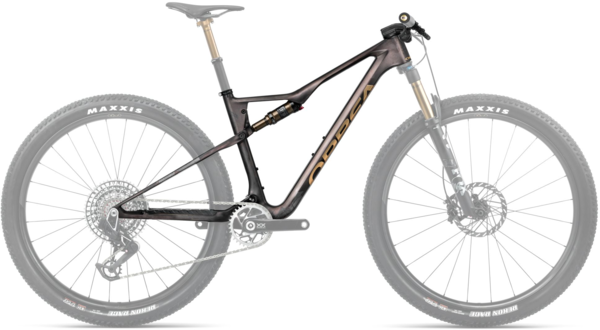

Orbea Oiz OMX+Fox I-Line Float Frame SL RE

Orbea Oiz OMX+Fox I-Line Float Frame SL RE
  • Color: Cosmic Carbon View (Matt-Gloss)
  • Color: Cobalt Blue (Gloss) - Carbon Raw (Matt)
  • Color: Diamond Carbon View (Matt) - Cherry Red (Gloss)
$4,299.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

BUILT TO FLY

Are you ready for takeoff? Race every climb and take each corner faster.

Get ready for the ride of your life. Oiz is an uncompromised race machine that looks as good as it rides. Modern geometry, advanced construction, and efficient suspension mean more grip, and better control, inspiring you to attack on every climb and get right off the brakes on today’s most challenging tracks.

Feather-Light, Race Ready
Because, on the race course, every gram counts.

Removing anything which is superfluous and only adding features which enhance the ride means that at 1740g Oiz is one of the lightest XC frames out there.

Simply the fastest, up and down
120mm of Race Tuned Suspension and modern geometry.

Designed from the start around 120mm of race-tuned suspension, means Oiz offers unbeatable confidence and efficiency. Attack on the climbs and drop the competition on the descents.

Every watt counts
You can’t see the frame stiffness, but you feel the power transfer every time you push the pedals.

For a bike to have the lightning reflexes and efficiency of a true XC race bike it needs to be light and stiff. However it is possible to have a frame which is too stiff to track the terrain efficiently.


Sizes:
Frame SizeSmallMediumLargeX-Large
Seat Tube (C-T) (mm) 405 432 460 510
Top Tube (EFF) (mm) 575 598 623 650
Head Tube (mm) 90 90 100 115
Chainstay (mm) 432 432 432 432
BB Drop (mm) 42 42 42 42
BB Height (mm) 333 333 333 333
Wheelbase (mm) 1138 1163 1189 1219
Head Angle 67º 67º 67º 67º
Seat Angle 76.5º 76.5º 76.5º 76.5º
Rake (mm) 44 44 44 44
Standover (mm) 731 741 741 750
Reach (mm) 425 450 472 496
Stack (mm) 596 596 606 619
Fork Length (mm) 531 531 531 531
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
Small 155 - 170 61.1" - 66.9"
Medium 165 - 180 65.0" - 70.9"
Large 178 - 190 70.1" - 74.8"
X-Large 185 - 198 72.8" - 78.0"

Specs

Frame Orbea Oiz Carbon OMX, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
Rear Shock Fox Float SL Factory 120mm Remote Push-lock Evol Kashima custom tune 190x45mm
Handlebars OC Mountain Performance MP10 Carbon, Cockpit, Width 760
Headset Alloy 1-1/2", Black Oxidated Bearing
Accessories & Extras OC Squidlock MP11, Suspension + Dropper
SH-MP10 specific computer mount

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Cosmic Carbon View (Matt-Gloss) / Small / 29-inch 08434446851643 S90903KZ
Cosmic Carbon View (Matt-Gloss) / Medium / 29-inch 08434446851698 S90905KZ
Cosmic Carbon View (Matt-Gloss) / Large / 29-inch 08434446851742 S90907KZ
Cosmic Carbon View (Matt-Gloss) / X-Large / 29-inch 08434446851797 S90909KZ
Cobalt Blue (Gloss) - Carbon Raw (Matt) / Small / 29-inch 08434446851629 S90903KT
Cobalt Blue (Gloss) - Carbon Raw (Matt) / Medium / 29-inch 08434446851674 S90905KT
Cobalt Blue (Gloss) - Carbon Raw (Matt) / Large / 29-inch 08434446851728 S90907KT
Cobalt Blue (Gloss) - Carbon Raw (Matt) / X-Large / 29-inch 08434446851773 S90909KT
Diamond Carbon View (Matt) - Cherry Red (Gloss) / Small / 29-inch 08434446851636 S90903KU
Diamond Carbon View (Matt) - Cherry Red (Gloss) / Medium / 29-inch 08434446851681 S90905KU
Diamond Carbon View (Matt) - Cherry Red (Gloss) / Large / 29-inch 08434446851735 S90907KU
Diamond Carbon View (Matt) - Cherry Red (Gloss) / X-Large / 29-inch 08434446851780 S90909KU
Oft Forest Green-Green Mint (Gloss) / Small / 29-inch 08434446851650 S90903UM
Oft Forest Green-Green Mint (Gloss) / Medium / 29-inch 08434446851704 S90905UM
Oft Forest Green-Green Mint (Gloss) / Large / 29-inch 08434446851759 S90907UM
Oft Forest Green-Green Mint (Gloss) / X-Large / 29-inch 08434446851803 S90909UM
