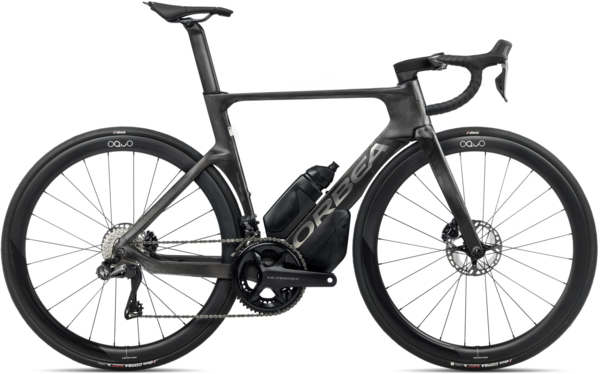

Orbea Orca Aero M20ILTD

Orbea Orca Aero M20ILTD
  • Color: Carbon Raw-Titanium (Matt)
  • Color: Olive Green (Gloss) - Carbon Raw (Matt)
  • Color: Tanzanite - Lilac (Matt) Lilac (Gloss)
$6,599.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Orca Aero is built for pure speed and efficiency, with aerodynamic shaping, exceptional power transfer, and razor-sharp handling. Its race-focused geometry puts you in the perfect position to push harder, ride faster, and hold nothing back.

Advanced Aerodynamics
Aligning the frame with the airflow, optimizing cross-sections, smoothing transitions and myriad other improvements mean a big reduction in drag.

Power and Precision
There’s no doubt about it—a frame that’s stiff in the right places transfers more of your watts to the rear wheel. Your power, converted to speed. That same stiffness also delivers razor-sharp handling, giving you precise control when it matters most—whether you're cornering at speed or holding your line in a sprint.

Geometry Chart:
47495153555760
Seat Tube (C-T) 459 474 499 524 544 564 589
Top Tube (EFF) 507,6 520,8 532,9 545,5 557,5 573,1 587
Head Tube 93,1 100,8 117,2 134,9 155,2 173,2 200,4
Chainstay 408 408 408 408 408 408 408
BB Drop 76 76 76 74 74 74 74
BB Height 260/263 260/263 260/263 262/265 262/265 262/265 262/265
Wheelbase 966,2 971 974,8 976,1 986,4 996,9 1010,8
Head Angle 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
Seat Angle 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
Rake 48 48 48 43 43 43 43
Standover - - - - - - -
Standover (28-622) 720 731,5 753,1 778 797 814,6 838,8
Reach 370 376 380 385 391 398 404
Stack 496 505 523 542 562 580 606
Fork Length 370 370 370 370 370 370 370
Trail 64,9/66 61,8/62,8 57,5/58,4 59/59,9 57,8/58,7 56,5/57,4 56,5/57,4
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
Fork Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Wheels Oquo Road Performance RP45TEAM, carbon Mini Hook rim, 45mm profile, Zipp ZR1 hub, 21mm internal width, Sapim CX-Sprint spokes, 700C
Hubs Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Crankset Shimano Ultegra R8100 36x52t
Shifters Shimano ST-8170
Front Derailleur Shimano Ultegra Di2 R8150
Rear Derailleur Shimano Ultegra Di2 R8150
Cassette/Freewheel Shimano Ultegra R8100 11-30t 12-Speed
Chain Shimano M8100
Brakes Shimano R8170 Hydraulic Disc
Handlebars OC Road Aero RA11 Carbon, Reach 80, Drop 125
Stem OC Road Performance RP10, -8º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
Pedals Sold Separately
Saddle Prologo Scratch-M5 Pas T2.0 size 140mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon Raw-Titanium (Matt) / 47cm / 700c 08434446829291 S12947CK
Carbon Raw-Titanium (Matt) / 49cm / 700c 08434446829338 S12949CK
Carbon Raw-Titanium (Matt) / 51cm / 700c 08434446829376 S12951CK
Carbon Raw-Titanium (Matt) / 53cm / 700c 08434446829413 S12953CK
Carbon Raw-Titanium (Matt) / 55cm / 700c 08434446829451 S12955CK
Carbon Raw-Titanium (Matt) / 57cm / 700c 08434446829499 S12957CK
Carbon Raw-Titanium (Matt) / 60cm / 700c 08434446829536 S12960CK
Olive Green (Gloss) - Carbon Raw (Matt) / 47cm / 700c 08434446829284 S12947AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 49cm / 700c 08434446829321 S12949AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 51cm / 700c 08434446829369 S12951AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 53cm / 700c 08434446829406 S12953AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 55cm / 700c 08434446829444 S12955AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 57cm / 700c 08434446829482 S12957AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 60cm / 700c 08434446829529 S12960AQ
Tanzanite - Lilac (Matt) Lilac (Gloss) / 47cm / 700c 08434446829277 S12947AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 49cm / 700c 08434446829314 S12949AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 51cm / 700c 08434446829352 S12951AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 53cm / 700c 08434446829390 S12953AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 55cm / 700c 08434446829437 S12955AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 57cm / 700c 08434446829475 S12957AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 60cm / 700c 08434446829512 S12960AP
