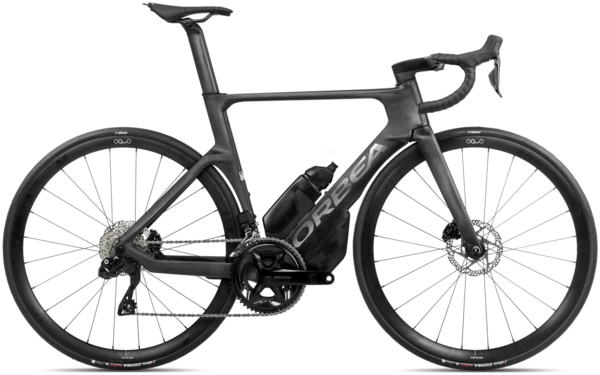

Orbea Orca Aero M30ILTD

Orbea Orca Aero M30ILTD
  • Color: Carbon Raw-Titanium (Matt)
  • Color: Olive Green (Gloss) - Carbon Raw (Matt)
  • Color: Tanzanite - Lilac (Matt) Lilac (Gloss)
$4,199.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Orca Aero is built for pure speed and efficiency, with aerodynamic shaping, exceptional power transfer, and razor-sharp handling. Its race-focused geometry puts you in the perfect position to push harder, ride faster, and hold nothing back.

Advanced Aerodynamics
Aligning the frame with the airflow, optimizing cross-sections, smoothing transitions and myriad other improvements mean a big reduction in drag.

Power and Precision
There’s no doubt about it—a frame that’s stiff in the right places transfers more of your watts to the rear wheel. Your power, converted to speed. That same stiffness also delivers razor-sharp handling, giving you precise control when it matters most—whether you're cornering at speed or holding your line in a sprint.

Geometry Chart:
47495153555760
Seat Tube (C-T) 459 474 499 524 544 564 589
Top Tube (EFF) 507,6 520,8 532,9 545,5 557,5 573,1 587
Head Tube 93,1 100,8 117,2 134,9 155,2 173,2 200,4
Chainstay 408 408 408 408 408 408 408
BB Drop 76 76 76 74 74 74 74
BB Height 260/263 260/263 260/263 262/265 262/265 262/265 262/265
Wheelbase 966,2 971 974,8 976,1 986,4 996,9 1010,8
Head Angle 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
Seat Angle 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
Rake 48 48 48 43 43 43 43
Standover - - - - - - -
Standover (28-622) 720 731,5 753,1 778 797 814,6 838,8
Reach 370 376 380 385 391 398 404
Stack 496 505 523 542 562 580 606
Fork Length 370 370 370 370 370 370 370
Trail 64,9/66 61,8/62,8 57,5/58,4 59/59,9 57,8/58,7 56,5/57,4 56,5/57,4
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible
Fork Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Wheels Oquo Road Performance RP35PRO, alloy rim, 35mm profile, Zipp ZR1 hub, 19mm internal width, Sapim CX-Sprint TCS spokes, 700C
Hubs Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Crankset Shimano 105 R7100 36x52t
Shifters Shimano Di2 R7170
Front Derailleur Shimano 105 Di2 R7150
Rear Derailleur Shimano 105 Di2 R7150
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M6100
Brakes Shimano R7170 Hydraulic Disc
Handlebars OC Road Aero RA11 Carbon, Reach 80, Drop 125
Stem OC Road Performance RP10, -8º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
Pedals Sold Separately
Saddle Prologo Scratch-M5 Pas T2.0 size 140mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon Raw-Titanium (Matt) / 47cm / 700c 08434446828737 S12747CK
Carbon Raw-Titanium (Matt) / 49cm / 700c 08434446828775 S12749CK
Carbon Raw-Titanium (Matt) / 51cm / 700c 08434446828812 S12751CK
Carbon Raw-Titanium (Matt) / 53cm / 700c 08434446828850 S12753CK
Carbon Raw-Titanium (Matt) / 55cm / 700c 08434446828898 S12755CK
Carbon Raw-Titanium (Matt) / 57cm / 700c 08434446828935 S12757CK
Carbon Raw-Titanium (Matt) / 60cm / 700c 08434446828973 S12760CK
Olive Green (Gloss) - Carbon Raw (Matt) / 47cm / 700c 08434446828720 S12747AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 49cm / 700c 08434446828768 S12749AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 51cm / 700c 08434446828805 S12751AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 53cm / 700c 08434446828843 S12753AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 55cm / 700c 08434446828881 S12755AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 57cm / 700c 08434446828928 S12757AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 60cm / 700c 08434446828966 S12760AQ
Tanzanite - Lilac (Matt) Lilac (Gloss) / 47cm / 700c 08434446828713 S12747AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 49cm / 700c 08434446828751 S12749AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 51cm / 700c 08434446828799 S12751AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 53cm / 700c 08434446828836 S12753AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 55cm / 700c 08434446828874 S12755AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 57cm / 700c 08434446828911 S12757AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 60cm / 700c 08434446828959 S12760AP
