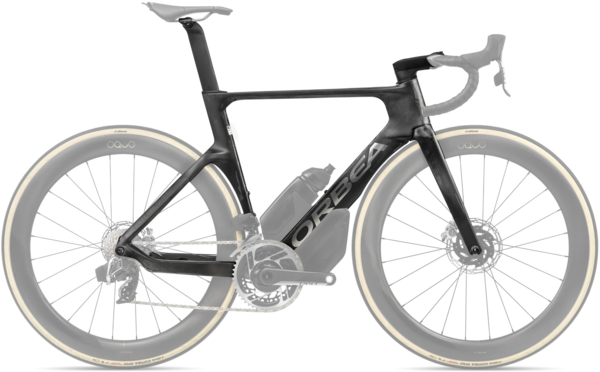

Orbea Orca Aero OMX Frame

Orbea Orca Aero OMX Frame
  • Color: Carbon Raw-Titanium (Matt)
  • Color: Olive Green (Gloss) - Carbon Raw (Matt)
  • Color: Tanzanite - Lilac (Matt) Lilac (Gloss)
  • Color: Ceratizit - WNT
  • Color: Lotto - Dstny
$3,799.00
Color:
Size: Select size
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Orca Aero is built for pure speed and efficiency, with aerodynamic shaping, exceptional power transfer, and razor-sharp handling. Its race-focused geometry puts you in the perfect position to push harder, ride faster, and hold nothing back.

Advanced Aerodynamics
With up to 15 watts saved at 40 km/h, the advantage is real.

Power and Precision
There’s no doubt about it—a frame that’s stiff in the right places transfers more of your watts to the rear wheel. Your power, converted to speed. That same stiffness also delivers razor-sharp handling, giving you precise control when it matters most—whether you're cornering at speed or holding your line in a sprint.

Dynamic Race Handling
Race-focused geometry and ergonomics put you in the perfect place to perform at any speed.

Sizes:
Frame Size47495153555760
Seat Tube (C-T) (mm) 459 474 499 524 544 564 589
Top Tube (EFF) (mm) 507,6 520,8 532,9 545,5 557,5 573,1 587
Head Tube (mm) 93,1 100,8 117,2 134,9 155,2 173,2 200,4
Chainstay (mm) 408 408 408 408 408 408 408
BB Drop (mm) 76 76 76 74 74 74 74
BB Height (mm) 260/263 260/263 260/263 262/265 262/265 262/265 262/265
Wheelbase (mm) 966,2 971 974,8 976,1 986,4 996,9 1010,8
Head Angle 71º 71.5º 72.2º 72.8º 73º 73.2º 73.2º
Seat Angle 74.5º 74º 73.7º 73.5º 73.5º 73.2º 73.2º
Rake (mm) 48 48 48 48 48 48 48
Standover (mm) - - - - - - -
Standover (28-622) (mm) 720 731,5 753,1 778 797 814,6 838,8
Reach (mm) 370 376 380 385 391 398 404
Stack (mm) 496 505 523 542 562 580 606
Fork Length (mm) 370 370 370 370 370 370 370
Trail (mm) 64,9 / 66 61,8 / 62,8 57,5 / 58,4 59 / 59,9 57,8 / 58,7 56,5 / 57,4 56,5 / 57,4
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
47cm 155 - 160 61.1" - 63.0"
49cm 160 - 166 63.0" - 65.4"
51cm 167 - 172 65.7" - 67.7"
53cm 173 - 179 68.1" - 70.5"
55cm 180 - 185 70.9" - 72.8"
57cm 186 - 191 73.2" - 75.2"
60cm 192 - 207 75.6" - 81.5"

Specs

Frame Orbea Orca Aero Carbon OMX disc, monocoque construction, HS 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x2 P1, Speed release compatible, internal cable routing, EC/DC compatible.
Fork Orbea Orca Aero OMX ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1, Speed release compatible dropout.
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Stem OC Road Performance RP10, -8º
Headset FSA 1-1/2" Integrated Aluminium Cup
Seatpost OC Road Aero RA10 Carbon Ultralight, SB0/25, w/Micro tilt adjustment
Accessories & Extras Hydration OC Aero Bottle RA10 (550ml) + Carbon Cage Kit RA10
Storage OC Aero Toolbox TB01PP

* Subject to change without notice.

Part Numbers

Option UPC MPN
Carbon Raw-Titanium (Matt) / 47cm 08434446849909 S90347CK
Carbon Raw-Titanium (Matt) / 49cm 08434446849954 S90349CK
Carbon Raw-Titanium (Matt) / 51cm 08434446850004 S90351CK
Carbon Raw-Titanium (Matt) / 53cm 08434446850059 S90353CK
Carbon Raw-Titanium (Matt) / 55cm 08434446850103 S90355CK
Carbon Raw-Titanium (Matt) / 57cm 08434446850158 S90357CK
Carbon Raw-Titanium (Matt) / 60cm 08434446850219 S90360CK
Olive Green (Gloss) - Carbon Raw (Matt) / 47cm 08434446849893 S90347AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 49cm 08434446849947 S90349AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 51cm 08434446849992 S90351AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 53cm 08434446850042 S90353AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 55cm 08434446850097 S90355AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 57cm 08434446850141 S90357AQ
Olive Green (Gloss) - Carbon Raw (Matt) / 60cm 08434446850202 S90360AQ
Tanzanite - Lilac (Matt) Lilac (Gloss) / 47cm 08434446849886 S90347AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 49cm 08434446849930 S90349AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 51cm 08434446849985 S90351AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 53cm 08434446850035 S90353AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 55cm 08434446850080 S90355AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 57cm 08434446850134 S90357AP
Tanzanite - Lilac (Matt) Lilac (Gloss) / 60cm 08434446850196 S90360AP
Ceratizit - WNT / 47cm 08434446902987 S90347UX
Ceratizit - WNT / 49cm 08434446903007 S90349UX
Ceratizit - WNT / 51cm 08434446903021 S90351UX
Ceratizit - WNT / 53cm 08434446903045 S90353UX
Ceratizit - WNT / 55cm 08434446903069 S90355UX
Ceratizit - WNT / 57cm 08434446903083 S90357UX
Ceratizit - WNT / 60cm 08434446903106 S90360UX
Lotto - Dstny / 47cm 08434446902970 S90347US
Lotto - Dstny / 49cm 08434446902994 S90349US
Lotto - Dstny / 51cm 08434446903014 S90351US
Lotto - Dstny / 53cm 08434446903038 S90353US
Lotto - Dstny / 55cm 08434446903052 S90355US
Lotto - Dstny / 57cm 08434446903076 S90357US
Lotto - Dstny / 60cm 08434446903090 S90360US
