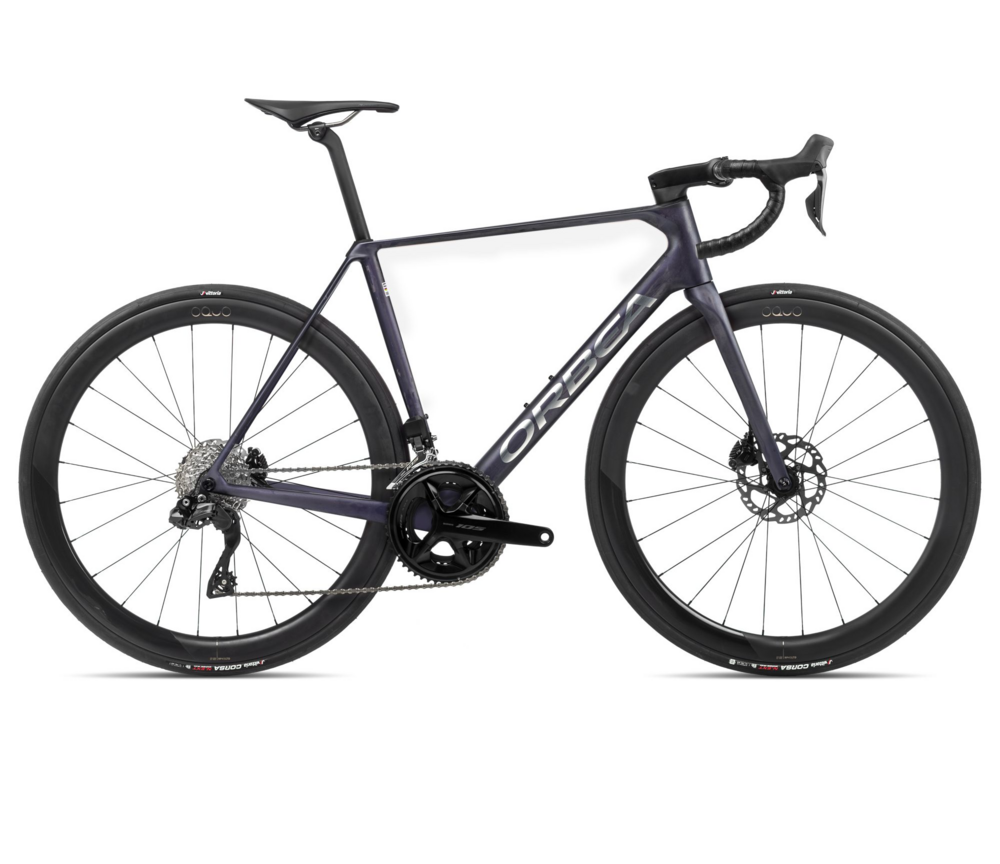

Orbea Orca M30iLTD PWR

Orbea Orca M30iLTD PWR
  • Color: Orange Cloud - Stone Blue
  • Color: Tanzanite - Carbon Raw
  • Color: Wine Red - Titanium
$5,999.00
Color: Orange Cloud - Stone Blue
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

PRAISE THE LIGHT.

Orca isn’t just light. It is 6.7kg of climbing technology designed to change how you reach the top.

The feeling of a bike this light and efficient is unbeatable, and this instant acceleration, vibration absorption and responsive handling come from a frame which knows where it needs to be light and where it needs to be stiff. Welcome the ultimate climbing machine!

DOMINATE THE CLIMBS

Achieving Orca´s light weight required many marginal gains, focusing on the details and using the best materials across the range. Considering the bike as a package means working with component and wheel designers right from the start to optimize stiffness and weight.

RIGID IN ALL THE RIGHT PLACES

But having the lightest bike is worth nothing if it isn’t stiff and efficient. When we designed Orca, we started with a target rigidity to ensure that even the strongest climbers could be sure of efficient power transmission. Then we designed Orca to be as light as possible without compromising that number.

THE FEEL OF FREEDOM

There is indeed just something special about the feel of a lightweight bike. We love the instant acceleration when you stamp on the pedals and the responsive, agile handling as you carve through the turns.

NO TRADE-OFFS

Our clever frame design means that stiff doesn't have to be uncomfortable. Rounder frame sections help reduce vibrations, saving energy on longer rides and offering you an advantage on that final climb. Wider clearance allows for tires of up to 32mm- maximising traction and compliance.

PERFORMANCE DESIGN

Orca is built on our understanding of performance and design, reflecting our belief that bikes should look great and ride better. Orca’s minimal, timeless lines give it its distinctive style and cover some very modern technology.

Sizes:
FRAME SIZE47495153555760
SEAT TUBE (C-T)440 460480500520540570
TOP TUBE (EFF)510,3 522,7535,9548,5560,4576,1590
HEAD TUBE110,5 118,2134,6152,9173,1191,2218,3
CHAINSTAY408 408408408408408408
BB HEIGHT (25-622)268,5 268,5268,5270,5270,5270,5270,5
BB DROP72 727270707070
WHEELBASE971,8 975,4980981,2991,41001,91015,6
HEAD ANGLE71 71,572,272,87373,273,2
SEAT ANGLE74,5 7473,773,573,573,273,2
STANDOVER (25-622)736,5 748,5767,5788,5808,5826,5852,5
REACH370 375380385391398404
STACK506 515533552572590616
FORK LENGTH365 365365365365365365
RAKE48 484843434343
TRAIL66,0 62,858,459,958,757,457,4
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
47155 - 160 5'1" - 5'3"
49160 - 166 5'3" - 5'5"
51167 - 172 5'5" - 5'7"
53173 - 179 5'8" - 5'10"
55180 - 185 5'10" - 6'0"
57186 - 191 6'1" - 6'3"
60192 - 207 6'3" - 6'9"

Specs

Pedals Sold Separately
Fork Orbea Orca OMX ICR 2024, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1.
Stem OC Road Performance RP10, -8º
Chain Shimano M7100
Frame Orbea Orca carbon OMX 2024, monocoque construction, HS 1,5", BB 386mm, powermeter compatible, Rear Thru Axle 12x142mm, thread M12x2 P1, internal cable routing.
Tires Vittoria Corsa N.Ext G2.0 Foldable 700x28c
Brakes Shimano R7170 Hydraulic Disc
Saddle Fizik Vento Antares R3 Kium Rail 140mm
Wheels OQUO Road Performance RP45 LTD Carbon
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset Shimano 105 R7100 36x52t
Seatpost OC Performance XP10-S Carbon, 27.2mm, Setback 20
Shifters Shimano Di2 R7170
Handlebars OC Road Performance RP11 Carbon, Reach 80, Drop 125, w/Di2 hole
Tape/Grips Lizard DSP 2.5mm
Rear Derailleur Shimano 105 Di2 R7150
Front Derailleur Shimano 105 Di2 R7150
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Orange Cloud - Stone Blue / 53cm / 700c 8434446511554 R11853AM
Orange Cloud - Stone Blue / 57cm / 700c 8434446511615 R11857AM
Tanzanite - Carbon Raw / 53cm / 700c 8434446511561 R11853AN
Tanzanite - Carbon Raw / 49cm / 700c 8434446511509 R11849AN
Orange Cloud - Stone Blue / 49cm / 700c 8434446511493 R11849AM
Wine Red - Titanium / 57cm / 700c 8434446687273 R11857CD
Wine Red - Titanium / 51cm / 700c 8434446687242 R11851CD
Wine Red - Titanium / 60cm / 700c 8434446687280 R11860CD
Wine Red - Titanium / 47cm / 700c 8434446687228 R11847CD
Wine Red - Titanium / 49cm / 700c 8434446687235 R11849CD
Tanzanite - Carbon Raw / 55cm / 700c 8434446511592 R11855AN
Tanzanite - Carbon Raw / 47cm / 700c 8434446511479 R11847AN
Orange Cloud - Stone Blue / 55cm / 700c 8434446511585 R11855AM
Orange Cloud - Stone Blue / 47cm / 700c 8434446511462 R11847AM
Wine Red - Titanium / 55cm / 700c 8434446687266 R11855CD
Wine Red - Titanium / 53cm / 700c 8434446687259 R11853CD
Tanzanite - Carbon Raw / 51cm / 700c 8434446511530 R11851AN
Orange Cloud - Stone Blue / 60cm / 700c 8434446511646 R11860AM
Tanzanite - Carbon Raw / 60cm / 700c 8434446511653 R11860AN
Orange Cloud - Stone Blue / 51cm / 700c 8434446511523 R11851AM
Tanzanite - Carbon Raw / 57cm / 700c 8434446511622 R11857AN
