Orbea Ordu M20iLTD

Orbea Ordu M20iLTD
  • Color: Blue Carbon View (Gloss)/Moondust Blue (Matt)
  • Color: Carbon Raw (Matt)/Wine Red Shades (Gloss)
$8,699.00
Color: Blue Carbon View (Gloss)/Moondust Blue (Matt)
Size: Select size
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Just like triathlon is a competition of multiple disciplines, Ordu is an elegant blend of aerodynamics, weight, handling and ergonomics. Once you have experienced Ordu's multiple strengths, it is impossible to feel confident with a lesser machine. For those who aim to be the fastest, most efficient and decorated athletes, Ordu is the future. You and triathlon will never be the same again.

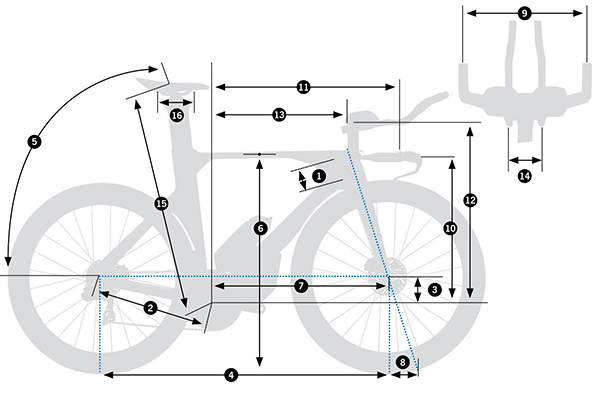

Geometry Chart:
X-SmallSmall/MediumMedium/LargeX-Large
11 - HEAD TUBE LENGTH 59 96 96 149
22 - CHAINSTAY LENGTH (ACTUAL) 405 405 405 405
33 - BB DROP 75 75 75 75
44 - WHEEL BASE 971 1007 1007 1048
55 - SEAT ANGLE (VIRTUAL) 74-78º 74-78º 74-78º 74-78º
66 - STANDOVER HEIGHT* 746 781 781 831
77 - BB - FRONT WHEEL AXLE 578 613 613 654
88 - TRAIL 60 60 60 60
99 - WIDTH 380 380 380 380
1010 - STACK HIGH POSITION 481 516 516 566
1110 - STACK LOW POSITION 451 486 486 536
1211 - REACH 641 665 665 689
1312 - STACK MAX 605 640 690 740
14- FRONTPOST INSERTION MIN 40 40 40 40
15- STACK MIN (W/O FP TRIMMING) 588 595 645 696
16- STACK MIN (W/ FP TRIMMING) 515 550 550 600
1713 - REACH MAX (BRIDGE POS. 1) 481 505 505 529
1813 - REACH MIN (BRIDGE POS. 2) 361 385 385 409
1914 - ELBOW RESTS MIN/MAX WIDTH (C-C) 105-195 105-195 105-195 105-195
20TILT** 0-15º 0-15º 0-15º 0-15º
2115 - HEIGHT MAX 782 817 857 906
22- SEATPOST INSERTION MIN 100 100 110 110
Sizes:
Frame SizeRider height (in)
X-Small 0"-66.9"
Small/Medium 66.9"-70.9"
Medium/Large 68.9"-72.8"
X-Large 72.8"

Specs

Frame Orbea Ordu carbon OMX Disc, monocoque construction, HS 1" - 1 1/8" mini tapered, BB 386mm, powermeter compatible, Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing.
Fork Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru axle 12x100m, thread M12x2P1, Speed release compatible dropout. UCI Legal.
Wheels Vision 55 SC Disc Carbon TLR CL
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Rubino Pro IV G2.0 700x25c
Crankset Shimano Ultegra R8100 36x52t
Shifters Shimano R9180
Front Derailleur Shimano Ultegra Di2 R8150
Rear Derailleur Shimano Ultegra Di2 R8150
Cassette/Freewheel Shimano Ultegra R8100 11-30t 12-Speed
Chain Shimano M8100
Brakes Shimano R9270 Hydraulic Disc
Handlebars Orbea Ordu OMX
Headset FSA 1-1/8"-1" Integrated Aluminium Cup
Seatpost Orbea Ordu OMX
Saddle Fizik Argo Vento R5 size 140mm
Pedals Sold separately
Accessories & Extras Extension: Vision Metron TFA Carbon Aero Clip-on JS-Bend
Hydration: OC Aero Bottle + Cage RA10

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue Carbon View (Gloss)/Moondust Blue (Matt) / X-Small 08434446242687 N13503BY
Blue Carbon View (Gloss)/Moondust Blue (Matt) / Small/Medium 08434446242717 N13505BY
Blue Carbon View (Gloss)/Moondust Blue (Matt) / Medium/Large 08434446242748 N13507BY
Blue Carbon View (Gloss)/Moondust Blue (Matt) / X-Large 08434446242779 N13509BY
Carbon Raw (Matt)/Wine Red Shades (Gloss) / X-Small 08434446242670 N13503BX
Carbon Raw (Matt)/Wine Red Shades (Gloss) / Small/Medium 08434446242700 N13505BX
Carbon Raw (Matt)/Wine Red Shades (Gloss) / Medium/Large 08434446242731 N13507BX
Carbon Raw (Matt)/Wine Red Shades (Gloss) / X-Large 08434446242762 N13509BX
