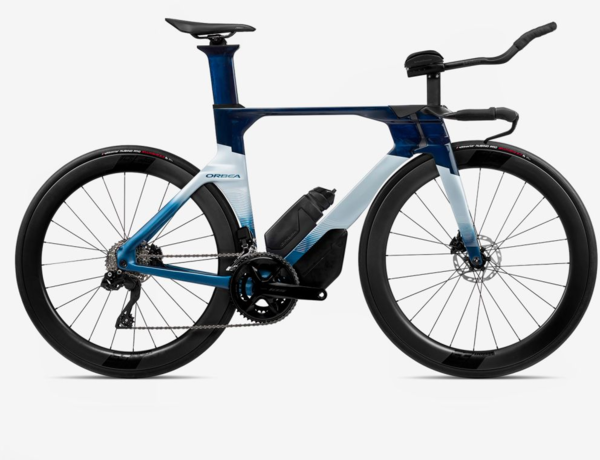

Orbea Ordu M30iLTD

Orbea Ordu M30iLTD
  • Color: Blue Carbon View (Gloss)/Moondust Blue (Matt)
  • Color: Carbon Raw (Matt)/Wine Red Shades (Gloss)
  • Color: Ice Green/Ocean (Gloss)
  • Color: Speed Silver/Pure Red (Matt)
$7,299.00
Color:
Size: Select size
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

Just like triathlon is a competition of multiple disciplines, Ordu is an elegant blend of aerodynamics, weight, handling and ergonomics. Once you have experienced Ordu's multiple strengths, it is impossible to feel confident with a lesser machine. For those who aim to be the fastest, most efficient and decorated athletes, Ordu is the future. You and triathlon will never be the same again.

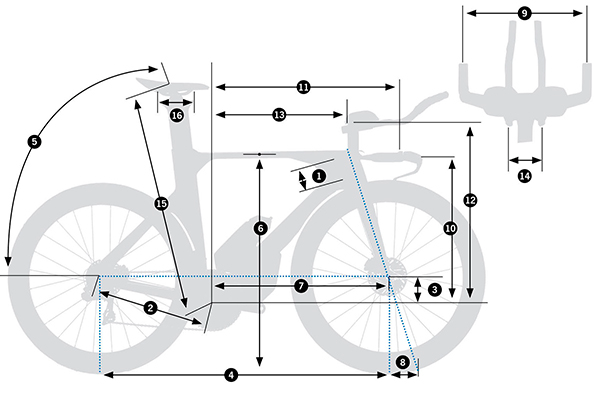

Geometry Chart:
X-SmallSmall/MediumMedium/LargeX-Large
11 - HEAD TUBE LENGTH 59 96 96 149
22 - CHAINSTAY LENGTH (ACTUAL) 405 405 405 405
33 - BB DROP 75 75 75 75
44 - WHEEL BASE 971 1007 1007 1048
55 - SEAT ANGLE (VIRTUAL) 74-78º 74-78º 74-78º 74-78º
66 - STANDOVER HEIGHT* 746 781 781 831
77 - BB - FRONT WHEEL AXLE 578 613 613 654
88 - TRAIL 60 60 60 60
99 - WIDTH 380 380 380 380
1010 - STACK HIGH POSITION 481 516 516 566
1110 - STACK LOW POSITION 451 486 486 536
1211 - REACH 641 665 665 689
1312 - STACK MAX 605 640 690 740
14- FRONTPOST INSERTION MIN 40 40 40 40
15- STACK MIN (W/O FP TRIMMING) 588 595 645 696
16- STACK MIN (W/ FP TRIMMING) 515 550 550 600
1713 - REACH MAX (BRIDGE POS. 1) 481 505 505 529
1813 - REACH MIN (BRIDGE POS. 2) 361 385 385 409
1914 - ELBOW RESTS MIN/MAX WIDTH (C-C) 105-195 105-195 105-195 105-195
20TILT** 0-15º 0-15º 0-15º 0-15º
2115 - HEIGHT MAX 782 817 857 906
22- SEATPOST INSERTION MIN 100 100 110 110
Sizes:
Frame SizeRider height (in)
X-Small 0"-66.9"
Small/Medium 66.9"-70.9"
Medium/Large 68.9"-72.8"
X-Large 72.8"

Specs

Frame Orbea Ordu carbon OMX Disc, monocoque construction, HS 1" - 1 1/8" mini tapered, BB 386mm, powermeter compatible, Thru Axle 12x142mm, thread M12x2 P1, Speed release compatible dropout, Internal Cable Routing.
Fork Orbea Ordu OMX ICR fork 2021, full carbon, 1" head tube, Thru axle 12x100m, thread M12x2P1, Speed release compatible dropout. UCI Legal.
Wheels Vision 55 SC Disc Carbon TLR CL
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Lite
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Lite
Tires Vittoria Rubino Pro IV G2.0 700x25c
Crankset Shimano 105 R7100 34x50t
Shifters Shimano R9180
Front Derailleur Shimano 105 Di2 R7150
Rear Derailleur Shimano 105 Di2 R7150
Cassette/Freewheel Shimano 105 R7100 11-34t 12-Speed
Chain Shimano M7100
Brakes Shimano R9270 Hydraulic Disc
Handlebars Orbea Ordu OMX
Headset FSA 1-1/8"-1" Integrated Aluminium Cup
Seatpost Orbea Ordu OMX
Saddle Fizik Argo Vento R5 size 140mm
Pedals Sold separately
Accessories & Extras Extension: Vision Metron TFA Carbon Aero Clip-on JS-Bend
Hydration: OC Aero Bottle + Cage RA10

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue Carbon View (Gloss)/Moondust Blue (Matt) / X-Small 08434446242564 N13403BY
Blue Carbon View (Gloss)/Moondust Blue (Matt) / Small/Medium 08434446242595 N13405BY
Blue Carbon View (Gloss)/Moondust Blue (Matt) / Medium/Large 08434446242625 N13407BY
Blue Carbon View (Gloss)/Moondust Blue (Matt) / X-Large 08434446242656 N13409BY
Carbon Raw (Matt)/Wine Red Shades (Gloss) / X-Small 08434446242557 N13403BX
Carbon Raw (Matt)/Wine Red Shades (Gloss) / Small/Medium 08434446242588 N13405BX
Carbon Raw (Matt)/Wine Red Shades (Gloss) / Medium/Large 08434446242618 N13407BX
Carbon Raw (Matt)/Wine Red Shades (Gloss) / X-Large 08434446242649 N13409BX
Ice Green/Ocean (Gloss) / X-Small 08434446239397 N50103BP
Ice Green/Ocean (Gloss) / Small/Medium 08434446239427 N50105BP
Ice Green/Ocean (Gloss) / Medium/Large 08434446239458 N50107BP
Ice Green/Ocean (Gloss) / X-Large 08434446239489 N50109BP
Speed Silver/Pure Red (Matt) / X-Small 08434446239403 N50103BU
Speed Silver/Pure Red (Matt) / Small/Medium 08434446239434 N50105BU
Speed Silver/Pure Red (Matt) / Medium/Large 08434446239465 N50107BU
Speed Silver/Pure Red (Matt) / X-Large 08434446239496 N50109BU
