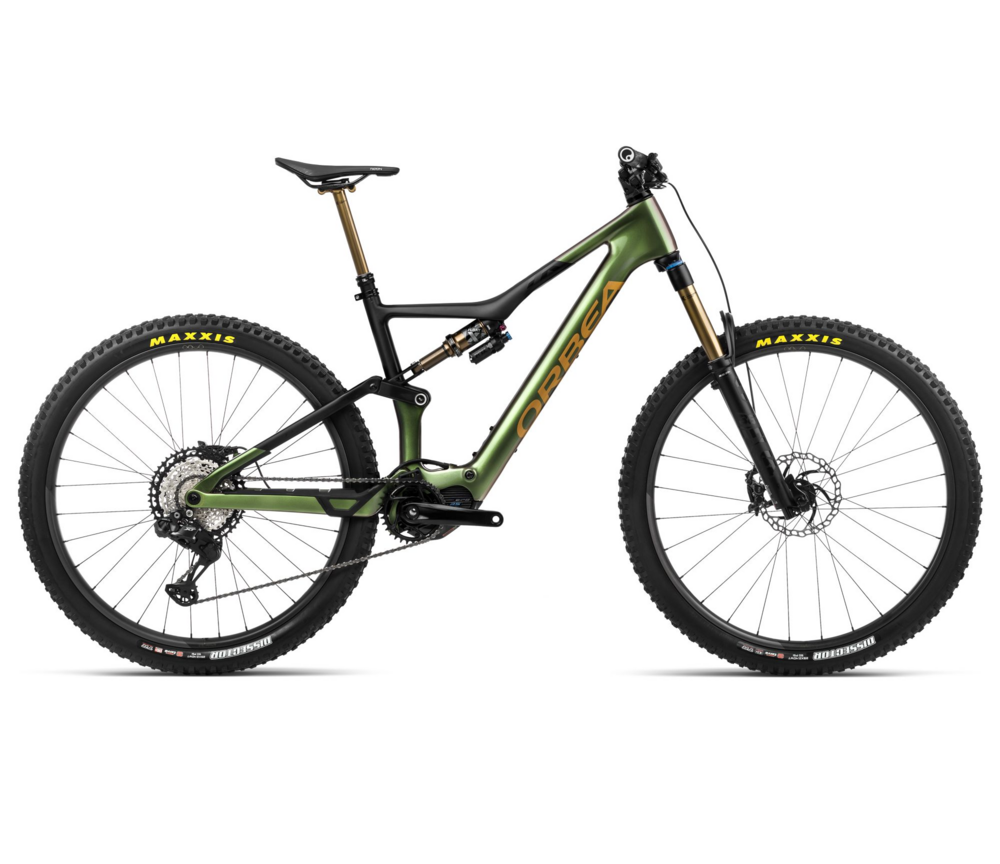

Orbea Rise M-Team

Orbea Rise M-Team
  • Color: Cabon Raw-Shark Grey
  • Color: Chameleon Goblin Green -Black
$9,999.00
Color: Cabon Raw-Shark Grey
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

RISE BEYOND
A NEW STANDARD IN LIGHTWEIGHT EBIKES

Rise shook up the lightweight e-MTB world on its launch with its “more bike, less E" philosophy. Simply the most natural feeling ebike on the market, bringing riders closer to the trail and shattering expectations about how an ebike should ride.

RISE RETURNS, LIGHTER THAN EVER AND WITH MORE BATTERY OPTIONS, READY TO OPEN UP LONGER ADVENTURES AND TAKE YOU TO EVEN MORE EPIC LOCATIONS.

SUPERCHARGE YOU
Rider Synergy means that when you pedal harder, RISE responds instantly, multiplying your efforts and shooting you forward just as if you were fitter than ever. The instantaneous, lag-free, power and the way that it is delivered, means that it feels totally natural to be this strong and you just concentrate on the fun of riding.

IT IS ALL ABOUT THE RIDE
Obsessively removing weight means Rise is one of the lightest ebikes in this sector. Rise rewrites the rulebook on ebike handling, floating, popping, manualling, and slicing through the corners as it disappears into the distance.

The reactive, exciting handling owes much to the lack of inertia, but frame rigidity is vital too. Our SBS system helps give a lighter, stiffer frame, meaning we can tune the rigidity much as we do for our non-electric bikes.

CONFIGURE RISE WITH THE BIGGER 540WH BATTERY, OR THE LIGHTER 360WH BATTERY, DEPENDING ON THE LENGTH OF YOUR TYPICAL RIDE.
The beauty of our Modular Battery Solution is that you can add the Range Extender for the longest rides or leave that extra weight at home when you don't need it.

MORE RIDING, LESS WEIGHT
More range from smaller, lighter batteries is precisely what our 1.5X factor is all about. Lighter weight, more efficiency, and greater reliance on your legs mean Rise delivers approximately 50% more riding than a traditional ebike.

CLOSER TO THE TRAIL
Simple solutions remove unnecessary complexity, adding reliability, improving aesthetics and removing weight. You won't find rattling battery covers or a spaghetti of cables on Rise, instead, our Clean Cockpit, SIC Cables and SBS battery remove distractions, bringing you closer to the ride.

RISE CARBON AND ALLOY
Rise is available in OMR Carbon, or in our High Polish Alloy. No matter which Rise frame you choose, you can be sure that you are choosing one of the lightest, most playful ebikes out there.

Sizes:
FRAME SIZESMALLMEDIUMLARGEX-LARGE
SEAT TUBE (C-T)381 419457508
TOP TUBE (EFF)565 592619649
HEAD TUBE95 105120140
CHAINSTAY445 445445445
BB HEIGHT336 336336336336
BB DROP35/32 35/3235/3235/32
WHEELBASE1180 120512291255
HEAD ANGLE66º/65,5º 66º/65,5º66º/65,5º66º/65,5º
SEAT ANGLE77º/76,5º 77º/76,5º77º/76,5º77º/76,5º
STANDOVER710 736766776
REACH425 450474500
STACK604 613627646
FORK LENGTH547 547547547
RAKE44 444444
Sizes:
FRAME SIZERIDER HEIGHT (CM)RIDER HEIGHT (IN)
SMALL150 - 165 4'11" - 5'3"
MEDIUM160 - 175 5'3" - 5'8"
LARGE170 - 185 5'6" - 6'0"
X-LARGE180 - 198 5'10" - 6'6"

Specs

Pedals Sold Separately
Fork Fox 36 Float Factory 150 Grip2 QR15x110 Kashima
Frame Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Brakes Shimano XT M8120 Hydraulic Disc
Saddle Fizik Terra Ridon X5 145mm
Wheels Oquo Mountain Control MC32LTD, carbon hookless rim, DT350 6IS hub, Shimano Micro Spline freehub, 30mm internal width, Sapim D-Sprint / Race spokes, 29"
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost Fox Transfer Factory Kashima Dropper 31.6
Shifters Shimnano M8150
Rear Derailleur Shimano XT Di2 M8150 12s SGS Shadow Plus
Motor Shimano EP801-RS
Battery Orbea Internal 360Wh (Optional 540Wh)
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Controller/Display EN600-L
Stem OC Mountain Control MC10 Alu SL, 0º
Chain Shimano M8100
Handlebars OC Mountain Control MC10 Carbon, Rise 20, Width 800
Tape/Grips Ergon GE10
Accessories & Extras OC Computer Mount CM-05, Garmin/Sigma
Cassette/Freewheel Shimano CS-M8100 10-51t 12-Speed

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cabon Raw-Shark Grey / Large / 29-inch 8434446538490 R65707V2
Cabon Raw-Shark Grey / Medium / 29-inch 8434446538469 R65705V2
Cabon Raw-Shark Grey / Small / 29-inch 8434446538438 R65703V2
Chameleon Goblin Green -Black / Medium / 29-inch 8434446538452 R65705V1
Chameleon Goblin Green -Black / Large / 29-inch 8434446538483 R65707V1
Cabon Raw-Shark Grey / X-Large / 29-inch 8434446538520 R65709V2
Chameleon Goblin Green -Black / X-Large / 29-inch 8434446538513 R65709V1
Chameleon Goblin Green -Black / Small / 29-inch 8434446538421 R65703V1
