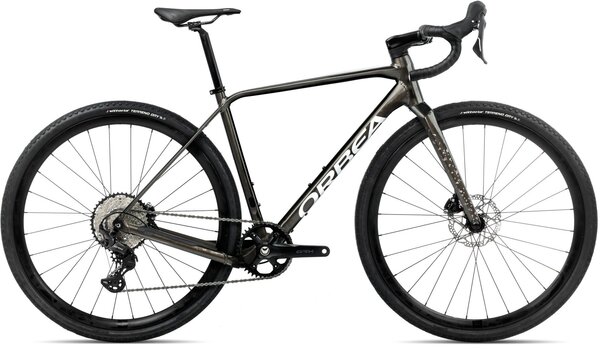

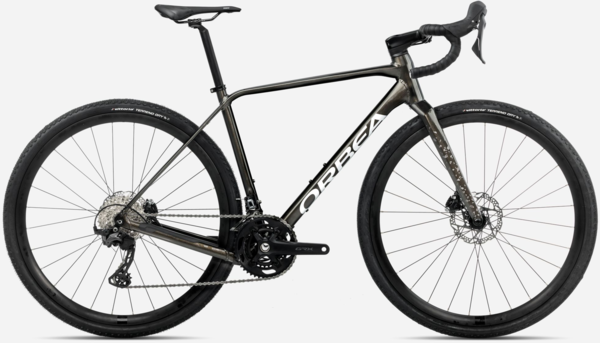

Orbea Terra H30

Orbea Terra H30
  • Color: Infinity Green - Ivory White (Gloss)
  • Color: Artichoke (Matt) - Lilac (Matt)
  • Color: Blue Stone (Gloss) - Copper (Matt)
$2,699.00
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

GRAVEL FROM THE GROUND UP

Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed-down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads, or let your trips spread overnight. There is a wide world out there, and Terra is ready to explore it with you.

Do you yearn to roam off the map or itch for your next long-distance race? Terra is ready to conquer any adventure. Generous tire clearance and vibration-damping frame design smooth out rough terrain, letting you ride harder for longer. Multiple mounting points offer plenty of options to keep your gear secure. Whether you are racing to the horizon or exploring far off the beaten path, Terra is ready to take you wherever the ride leads.

Adventure Ready
When you need to tackle long-distance adventure races and off-road escapes, Terra is ready for the long haul, with mounts and storage to take everything you need along for the ride.

Sizes:
MetricXSSMLXLXXL
Seat Tube (C-T) 425 458 491 524 557 590
Top Tube (EFF) 526 539 558 570 590 603
Head Tube 110 131 152 178 199 220
Chainstay 430 430 430 430 430 430
BB Drop 78 78 78 76 76 76
BB Height 263/278 263/278 263/278 265/280 265/280 265/280
Wheelbase 1020 1030 1039 1054 1063 1072
Head Angle 70° 70.5° 71° 71° 71.5° 72°
Seat Angle 74° 74° 73.5° 73.5° 73° 73°
Rake - - - - - -
Standover 704/718 731/746 759/773 788/803 815/830 839/853
Reach 375 382 389 395 402 409
Stack 526 548 570 592 614 636
Fork Length 390 390 390 390 390 390
Trail 66/71 62/68 59/64 59/64 56/61 53/58
Sizes:
SizeHeight
X-Small 61.1"-65.4"
Small 65.7"-67.7"
Medium 68.1"-70.5"
Large 70.9"-72.8"
X-Large 73.2"-75.2"
XX-Large 75.6"-81.5"

Specs

Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 21c
Tires Vittoria Terreno Dry Gravel 700x38c
Crankset Shimano GRX RX610 30x46t
Shifters Shimano GRX RX610
Front Derailleur Shimano GRX RX820
Rear Derailleur Shimano GRX RX820
Cassette/Freewheel Shimano HG710 11-36t 12-Speed
Chain Shimano M6100
Brakes Shimano RX400 Hydraulic disc
Handlebars OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Tape/Grips Orbea Eva
Stem OC Road Performance RP22, -5º
Seatpost SP 0.2 Carbon, 27.2mm, Setback 20
Saddle Prologo Akero AGX black rails size 155mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Infinity Green - Ivory White (Gloss) / Medium / 700c 8434446822322 S14405DG
Infinity Green - Ivory White (Gloss) / X-Small / 700c 08434446822261 S14402DG
Artichoke (Matt) - Lilac (Matt) / X-Small / 700c 08434446822254 S14402DF
Artichoke (Matt) - Lilac (Matt) / Small / 700c 08434446822285 S14403DF
Infinity Green - Ivory White (Gloss) / Small / 700c 08434446822292 S14403DG
Artichoke (Matt) - Lilac (Matt) / Medium / 700c 08434446822315 S14405DF
Artichoke (Matt) - Lilac (Matt) / Large / 700c 08434446822346 S14407DF
Infinity Green - Ivory White (Gloss) / Large / 700c 08434446822353 S14407DG
Infinity Green - Ivory White (Gloss) / X-Large / 700c 08434446822384 S14409DG
Artichoke (Matt) - Lilac (Matt) / X-Large / 700c 08434446822377 S14409DF
Artichoke (Matt) - Lilac (Matt) / XX-Large / 700c 08434446822407 S14410DF
Infinity Green - Ivory White (Gloss) / XX-Large / 700c 08434446822414 S14410DG
Blue Stone (Gloss) - Copper (Matt) / X-Small / 700c 08434446822278 S14402DH
Blue Stone (Gloss) - Copper (Matt) / Small / 700c 08434446822308 S14403DH
Blue Stone (Gloss) - Copper (Matt) / Medium / 700c 08434446822339 S14405DH
Blue Stone (Gloss) - Copper (Matt) / Large / 700c 08434446822360 S14407DH
Blue Stone (Gloss) - Copper (Matt) / X-Large / 700c 08434446822391 S14409DH
Blue Stone (Gloss) - Copper (Matt) / XX-Large / 700c 08434446822421 S14410DH
