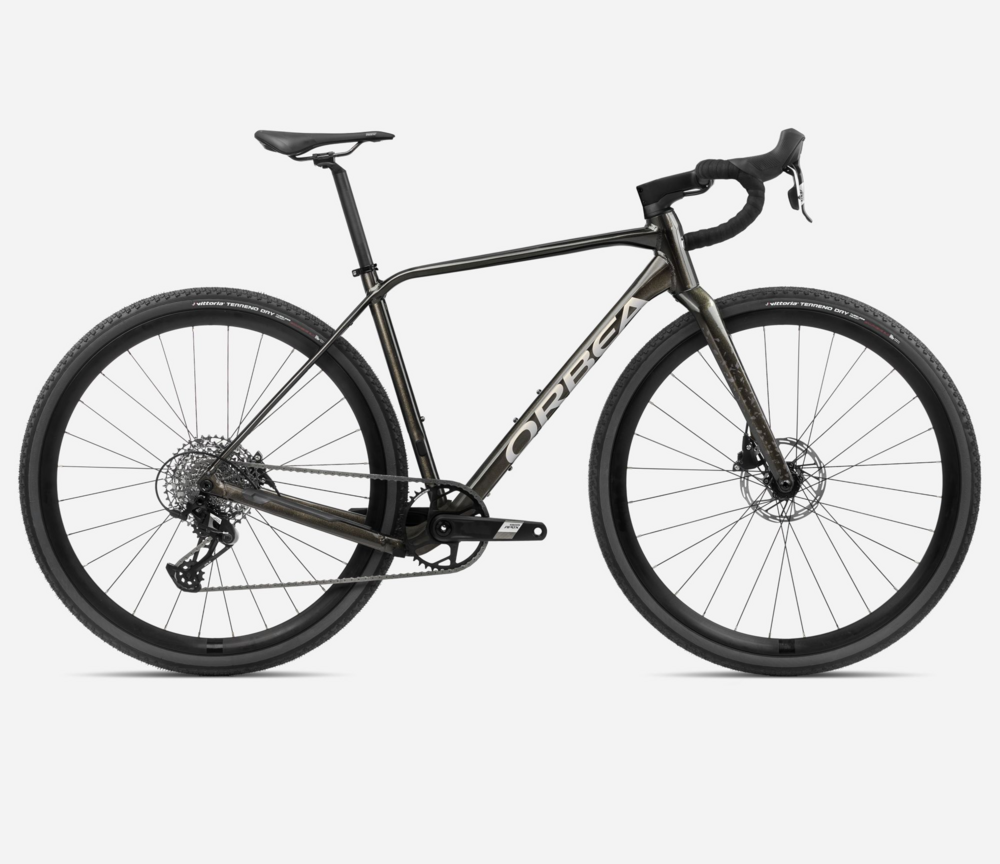

Orbea Terra H41 1X

Orbea Terra H41 1X
  • Color: Artichoke - Lilac
  • Color: Blue Stone - Copper
  • Color: Infinity Green-Ivory White
$2,899.00
Color: Artichoke - Lilac
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

GRAVEL FROM THE GROUND UP
Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

GRAVEL GEOMETRY
Terra offers a completely new gravel design with gravel specific geometry. We have worked hard, using all our experience from both Road and MTB, to deliver a balanced ride, with precise handling and maximum control.

A MORE CAPABLE BIKE
Gravel is a universe of different users and terrains. For that reason Terra is a complete platform with different models in aluminium and carbon, offering the most inclusive solutions that won’t leave anyone indifferent.

TIRE CLEARANCE
Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.

DRIVETRAIN COMPATIBILITY
Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tyre clearance.

LOCKR
Our Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools.

Sizes:
Frame SizeX-SmallSmallMediumLargeX-LargeXX-Large
Seat Tube (C-T) (mm)425 458491524557590
Top Tube (EFF) (mm)526 539558570590603
Head Tube (mm)110 131152178199220
Chainstay (mm)430 430430430430430
BB Height (mm)263 / 278 263 / 278263 / 278265 / 278265 / 278265 / 278
BB Drop (mm)78 7878787878
Wheelbase (mm)1020 10301039105410631072
Head Angle70° 70.5°71°71°71.5°72°
Seat Angle74° 74°73.5°73.5°73°73°
Standover (30c-40c) (mm)704 / 718 731 / 746759 / 773788 / 803815 / 830838 / 853
Reach (mm)375 382389395402409
Stack (mm)526 548570592614636
Fork Length (mm)390 390390390390390
Trail (30-622) (mm)66 6259595653
Trail (40-622)71 6864646158
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small155 - 166 5'1" - 5'5"
Small167 - 172 5'5" - 5'8"
Medium173 - 179 5'8" - 5'10"
Large180 - 185 5'10" - 6'1"
X-Large186 - 191 6'1" - 6'3"
XX-Large192 - 207 6'3" - 6'9"

Specs

Pedals Sold Separately
Fork Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Stem OC Road Performance RP21, -6º
Frame Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system
Tires Vittoria Terreno Dry Gravel 700x38c
Brakes SRAM Apex Hydraulic
Saddle Prologo Akero AGX STN size 155mm
Wheels Alloy, Tubeless, 700c, 21c
Headset FSA 1-1/2" Integrated Aluminium Cup
Crankset SRAM Apex 1 DM Dub Wide 40t Steel
Seatpost Carbon, 27.2mm, Setback 20
Shifters SRAM Apex
Rear Derailleur SRAM Apex XPLR 12s
Chain SRAM Apex 12-Speed
Handlebars OC Gravel GR31-R, Rise 15, Reach 70, Drop 110
Tape/Grips Orbea Eva
Cassette/Freewheel SRAM PG-1231 XPLR 11-44t 12-Speed

* Subject to change without notice.

Videos

How to Bungee Boost!

Create your own shock cord stash zone for adjustable, quick-grab storage on your Swift bag. Song: Union by Walz #swiftindustries #builtbyswift #biketouringbags #bicyclebags #bikepackingbags #biketouring #gravelbike #northwestxnature

Part Numbers

Option UPC MPN
Artichoke - Lilac / Medium / 700c 8434446529184 R14205DF
Artichoke - Lilac / Small / 700c 8434446529153 R14203DF
Infinity Green-Ivory White / X-Large / 700c 8434446529252 R14209DG
Blue Stone - Copper / Small / 700c 8434446529177 R14203DH
Infinity Green-Ivory White / Large / 700c 8434446529221 R14207DG
Blue Stone - Copper / X-Small / 700c 8434446529146 R14202DH
Artichoke - Lilac / XX-Large / 700c 8434446529276 R14210DF
Infinity Green-Ivory White / XX-Large / 700c 8434446529283 R14210DG
Blue Stone - Copper / X-Large / 700c 8434446529269 R14209DH
Artichoke - Lilac / Large / 700c 8434446529214 R14207DF
Infinity Green-Ivory White / X-Small / 700c 8434446529139 R14202DG
Blue Stone - Copper / Large / 700c 8434446529238 R14207DH
Infinity Green-Ivory White / Medium / 700c 8434446529191 R14205DG
Artichoke - Lilac / X-Large / 700c 8434446529245 R14209DF
Blue Stone - Copper / Medium / 700c 8434446529207 R14205DH
Infinity Green-Ivory White / Small / 700c 8434446529160 R14203DG
Blue Stone - Copper / XX-Large / 700c 8434446529290 R14210DH
Artichoke - Lilac / X-Small / 700c 8434446529122 R14202DF
