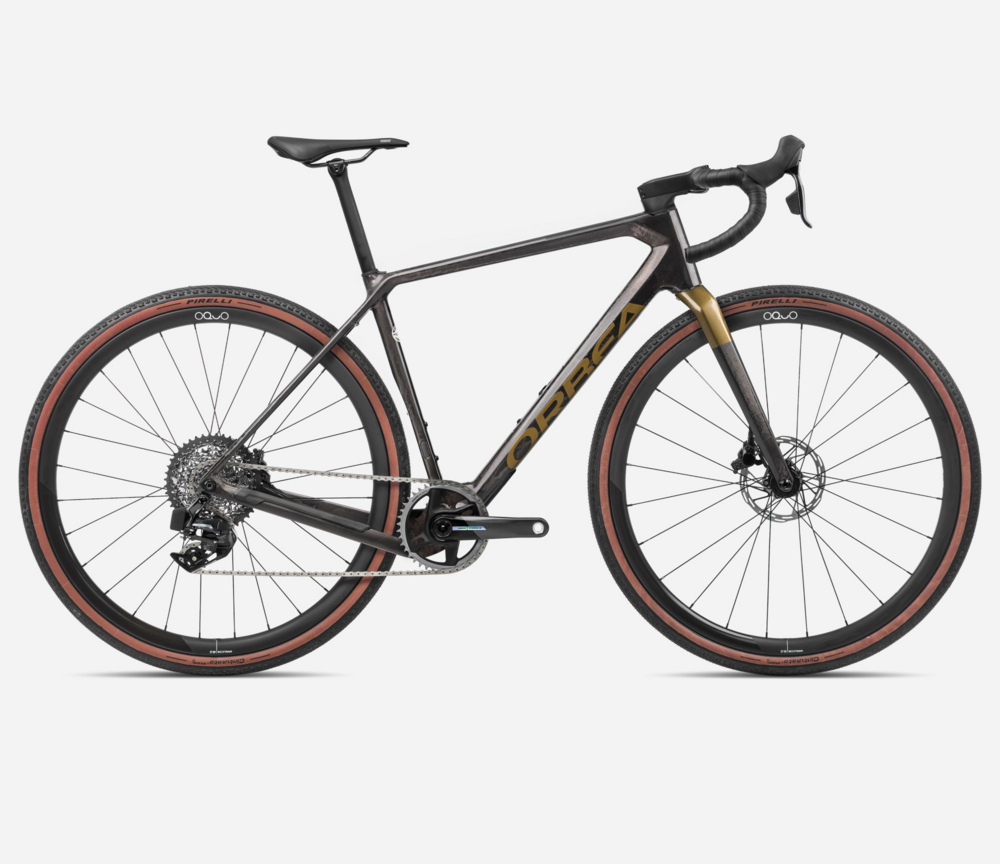

Orbea Terra M21eTeam 1X
Details
GRAVEL FROM THE GROUND UP
Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
GRAVEL GEOMETRY
Terra offers a completely new gravel design with gravel specific geometry. We have worked hard, using all our experience from both Road and MTB, to deliver a balanced ride, with precise handling and maximum control.
A MORE CAPABLE BIKE
Gravel is a universe of different users and terrains. For that reason Terra is a complete platform with different models in aluminium and carbon, offering the most inclusive solutions that won’t leave anyone indifferent.
TIRE CLEARANCE
Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
DRIVETRAIN COMPATIBILITY
Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tyre clearance.
LOCKR
Our Carbon frame offers a storage area inside the downtube, hidden behind the water bottle cage, where there is space for the tube, pump or CO2 cartridge, as well as a selection of tools.
| Frame Size | X-Small | Small | Medium | Large | X-Large | XX-Large |
|---|---|---|---|---|---|---|
| Seat Tube (C-T) (mm) | 425 | 458 | 491 | 524 | 557 | 590 |
| Top Tube (EFF) (mm) | 526 | 539 | 558 | 570 | 590 | 603 |
| Head Tube (mm) | 110 | 131 | 152 | 178 | 199 | 220 |
| Chainstay (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| BB Height (mm) | 263 / 278 | 263 / 278 | 263 / 278 | 265 / 278 | 265 / 278 | 265 / 278 |
| BB Drop (mm) | 78 | 78 | 78 | 78 | 78 | 78 |
| Wheelbase (mm) | 1020 | 1030 | 1039 | 1054 | 1063 | 1072 |
| Head Angle | 70° | 70.5° | 71° | 71° | 71.5° | 72° |
| Seat Angle | 74° | 74° | 73.5° | 73.5° | 73° | 73° |
| Standover (30c-40c) (mm) | 704 / 718 | 731 / 746 | 759 / 773 | 788 / 803 | 815 / 830 | 838 / 853 |
| Reach (mm) | 375 | 382 | 389 | 395 | 402 | 409 |
| Stack (mm) | 526 | 548 | 570 | 592 | 614 | 636 |
| Fork Length (mm) | 390 | 390 | 390 | 390 | 390 | 390 |
| Trail (30-622) (mm) | 66 | 62 | 59 | 59 | 56 | 53 |
| Trail (40-622) | 71 | 68 | 64 | 64 | 61 | 58 |
| Frame Size | Rider Height (cm) | Rider Height (in) |
|---|---|---|
| X-Small | 155 - 166 | 5'1" - 5'5" |
| Small | 167 - 172 | 5'5" - 5'8" |
| Medium | 173 - 179 | 5'8" - 5'10" |
| Large | 180 - 185 | 5'10" - 6'1" |
| X-Large | 186 - 191 | 6'1" - 6'3" |
| XX-Large | 192 - 207 | 6'3" - 6'9" |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Stem | OC Road Performance RP10, -8º |
| Frame | Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box |
| Tires | Pirelli Cinturato™ Gravel H 700x40c TLR |
| Brakes | SRAM Force AXS |
| Saddle | Prologo Akero AGX STN size 155mm |
| Wheels | Oquo Road Control RC25TEAM, carbon Mini Hook rim, Zipp ZR1 hub, SRAM XDR freehub, 25mm internal width, Sapim CX-Sprint spokes, 700C |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | SRAM Force Dub Wide 40t |
| Seatpost | OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Shifters | SRAM Force AXS |
| Rear Derailleur | SRAM Force XPLR AXS 12s |
| Chain | SRAM Force 12-Speed |
| Handlebars | Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| Tape/Grips | Orbea Anti-Slippery/Shock Proof |
| Cassette/Freewheel | SRAM XG-1271 XPLR 10-44t 12-Speed |
* Subject to change without notice.
Videos
NEW ORBEA TERRA | GRAVEL FROM THE GROUND UP
Gravel from the ground up. Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Terra IS gravel. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you. Discover everything about the new #OrbeaTerra at: https://bit.ly/Terra-vid_en Follow us: - Facebook: http://bit.ly/2n8mdvb - Instagram: https://bit.ly/3597J8n - Twitter: http://bit.ly/2nmpIjw - Linkedin: https://bit.ly/2CDErlw
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Cosmic Carbon View-Metallic Olive Green / Medium / 700c | 8434446491962 | R15105DJ |
| Cosmic Carbon View-Metallic Olive Green / Large / 700c | 8434446491993 | R15107DJ |
| Ivory White-Spicy Lime / Small / 700c | 8434446491924 | R15103DI |
| Cosmic Carbon View-Metallic Olive Green / X-Small / 700c | 8434446491900 | R15102DJ |
| Ivory White-Spicy Lime / Medium / 700c | 8434446491955 | R15105DI |
| Cosmic Carbon View-Metallic Olive Green / XX-Large / 700c | 8434446492068 | R15110DJ |
| Cosmic Carbon View-Metallic Olive Green / Small / 700c | 8434446491931 | R15103DJ |
| Ivory White-Spicy Lime / XX-Large / 700c | 8434446492051 | R15110DI |
| Ivory White-Spicy Lime / X-Large / 700c | 8434446492013 | R15109DI |
| Ivory White-Spicy Lime / X-Small / 700c | 8434446491894 | R15102DI |
| Ivory White-Spicy Lime / Large / 700c | 8434446491986 | R15107DI |
| Cosmic Carbon View-Metallic Olive Green / X-Large / 700c | 8434446492020 | R15109DJ |
