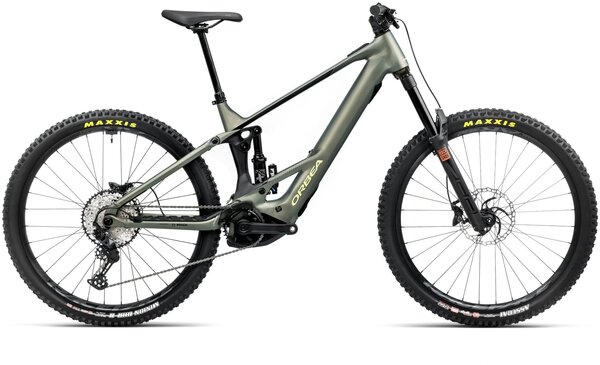

Orbea Wild H20

Orbea Wild H20
  • Color: Spaceship Green-Black (Matt)
  • Color: Bumblebee Yellow-Metallic Olive Green (Gloss)
  • Color: Tanzanite-Blue Stone (Matt)
$6,499.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This item may be picked up in-store by appointment; call 480-744-5940 or email customerservice@velozoom.com to schedule.

Details

The Yes Machine

Welcome to a world beyond power. A world where far and fast is taken for granted. Whatever question the trail poses, the answer is always yes.

Wild is a bike built without compromises. Lightweight and fully optimised, it leaves our factory ready for action with the latest Bosch motor and race-ready build kits.

Lightweight, heavy performance.
- Wild tames the wildest trails but always feels alive, energetic, and involving rather than the detached, numb ride of many e-bikes. This balance of light weight and stiffness is the base for Wild's incredible handling.

Endless power and unlimited range
- Fully powered and ready to rumble, Wild is all about maximum fun on the craziest climbs and wildest descents. The combination of the latest Bosch motors and a choice of advanced batteries offers incredible range, power, and control.

Ready for action
- The most robust builds mean Wild arrives ready for any challenge. This might be one of the lightest full-power e-bikes, but built without compromise.

Performance through simplicity
- Performance through simplicity means removing anything unnecessary and adding only what directly enhances the ride.

Heavy performance.

Developed on the toughest tracks.
- How do you take a bike as capable as Wild that bit further? Testing in the EDR with our Orbea Enduro Team took us so far. For the final push, we took Wild racing in the DH World Cup.

Sizes:
MeasurementSMLXLS-MulletM-MulletL-MulletXL-Mullet
Seat Tube (C-T) 415 415 435 450 415 415 435 450
Top Tube (EFF) 563 586 612 639 561 583 610 636
Head Tube 110 120 130 140 110 120 130 140
Chainstay 448 448 448 448 448 448 448 448
BB Drop 22 22 22 22 22 22 22 22
BB Height 358 358 358 358 358 358 358 358
Wheelbase 1228 1252 1282 1311 1228 1252 1282 1311
Head Angle 63.5° 63.5° 63.5° 63.5° 63.5° 63.5° 63.5° 63.5°
Seat Angle 77.5° 77.5° 77.5° 77.5° 77.5° 77.5° 77.5° 77.5°
Rake 44 44 44 44 44 44 44 44
Standover 730 730 730 730 727 727 727 727
Reach 435 455 480 505 435 455 480 505
Stack 625 634 643 652 627 636 645 654
Fork Length 585 585 585 585 585 585 585 585
Sizes:
SizeHeight
S 59.1"-68.9"
M 63.0"-72.8"
L 66.9"-76.8"
XL 70.9"-80.7"

Specs

Frame Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148
Fork RockShox ZEB Base-A2 DebonAir+ 170 E-MTB
Rear Shock Fox Float X Performance Trunnion 2-Pos Evol LV custom tune 205x65mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Crankset e*thirteen Helix Core
Shifters Shimano Deore M6100 I-Spec EV
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano MT420 Hydraulic Disc
Handlebars OC Mountain Control MC30, Rise20, Width 800
Tape/Grips OC Lock On
Stem OC Mountain Control MC20, 0º
Headset Alloy 1-1/2", Black Oxidated Bearing
Seatpost OC Mountain Control MC22, 31.6mm, Dropper
Saddle Selle Royal Vivo Sport Men 145 x 269mm
Motor Bosch Performance Line CX BDU3840
Battery Bosch Powertube 750Wh Horizontal BBP3775
Controller/Display Bosch System Controller BRC3100
Charger Bosch Charger 4A (110V) BPC3410

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Spaceship Green-Black (Matt) / Small / 29-inch 08434446851315 S64303SL
Spaceship Green-Black (Matt) / Medium / 29-inch 08434446851322 S64305SL
Spaceship Green-Black (Matt) / Large / 29-inch 08434446851339 S64307SL
Spaceship Green-Black (Matt) / X-Large / 29-inch 08434446851346 S64309SL
Bumblebee Yellow-Metallic Olive Green (Gloss) / Small / 29-inch 08434446844041 S64303SM
Bumblebee Yellow-Metallic Olive Green (Gloss) / Medium / 29-inch 08434446844065 S64305SM
Bumblebee Yellow-Metallic Olive Green (Gloss) / Large / 29-inch 08434446844089 S64307SM
Bumblebee Yellow-Metallic Olive Green (Gloss) / X-Large / 29-inch 08434446844102 S64309SM
Tanzanite-Blue Stone (Matt) / Small / 29-inch 08434446844058 S64303SN
Tanzanite-Blue Stone (Matt) / Medium / 29-inch 08434446844072 S64305SN
Tanzanite-Blue Stone (Matt) / Large / 29-inch 08434446844096 S64307SN
Tanzanite-Blue Stone (Matt) / X-Large / 29-inch 08434446844362 S64309SN
